Exhaust Modules of Aston Martin Aston Martin Vanquish (2012+)

View All

Aston Martin Vanquish (2012+) - Exhaust Modules

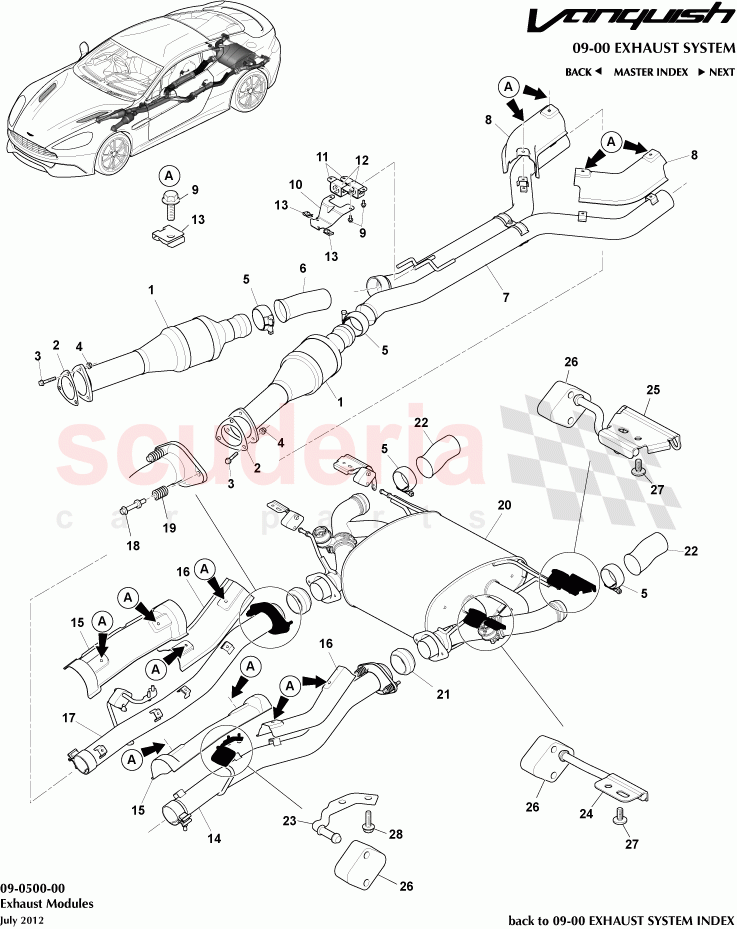

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G435E211AD	Catalyst & Pipe Assembly	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G435E281AA	GASKET (Single)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702698	BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4302738AAPK	Nut, M8 Hex Flange Head, Stainless (Pack of 10)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	9G435221AA	EXHAUST PIPE CLAMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CG435220FA	Pipe, Exhaust Intermediate Stub	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD335220DC	Pipe, Exhaust Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435G221AA	Shield Assy, Exhaust System, Rear Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G433962ED	Bracket, Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433962FA	Bracket, Exhaust Isolator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510025	Rubber, Exhaust Mount	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699736	Clip, Exhaust Heatshields	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FD335220BA	INTERMED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435G221BC	Heatshield Assy, Exhaust, Intermediate Pipe, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435G221CA	Heatshield Assy, Exhaust, Intermediate Pipe, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD335220AA	INTERMED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4370816AA	Bolt, M8 Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G435F264AA	Spring, Exhaust Pipe Flange	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD335230BF	Muffler, Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317213BA	Sealing Ring Exhaust	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G435220CA	INTERMEDIATE PIPE - EXHAUST	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G435N201DC	Bracket, Exhaust Pipe Mounting, Intermediate LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD335N201CC	Bracket, Muffler Mounting Hanger Assy, Rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD335N203AA	Bracket, Upper Tailpipe Mounting, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510026	Isolator, Exhaust Hanger	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703141	SCREW M8 x 16 CHROME FREE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G435N201EC	Bracket, Exhaust Pipe Mounting, Intermediate RH	4G435N201EC Bracket, Exhaust Pipe Mounting, Intermediate RH	-	1	Enquire
-	CD335N201DC	Bracket, Muffler Mounting Hanger Assy, Rear, RH	CD335N201DC Bracket, Muffler Mounting Hanger Assy, Rear, RH	-	1	Enquire
-	CD335N202AA	Bracket, Upper Tailpipe Mounting, RH	CD335N202AA Bracket, Upper Tailpipe Mounting, RH	-	1	Enquire
1	8G435E211AD	Catalyst & Pipe Assembly IN STOCK	8G435E211AD Catalyst & Pipe Assembly IN STOCK	-	2	Enquire
2	4G435E281AA	GASKET (Single) IN STOCK	4G435E281AA GASKET (Single) IN STOCK	-	2	Enquire
3	702698	BOLT-M8x45 FLANGE HEAD STAINLESS STEEL IN STOCK	702698 BOLT-M8x45 FLANGE HEAD STAINLESS STEEL IN STOCK	-	6	Enquire
4	4G4302738AAPK	Nut, M8 Hex Flange Head, Stainless (Pack of 10) IN STOCK	4G4302738AAPK Nut, M8 Hex Flange Head, Stainless (Pack of 10) Pack of 10 IN STOCK	-	6	Enquire
5	9G435221AA	EXHAUST PIPE CLAMP IN STOCK	9G435221AA EXHAUST PIPE CLAMP IN STOCK	-	4	Enquire
6	CG435220FA	Pipe, Exhaust Intermediate Stub	CG435220FA Pipe, Exhaust Intermediate Stub	-	1	Enquire
7	CD335220DC	Pipe, Exhaust Centre	CD335220DC Pipe, Exhaust Centre Includes Items 8, 9 and 13	-	1	Enquire
8	AD435G221AA	Shield Assy, Exhaust System, Rear Front	AD435G221AA Shield Assy, Exhaust System, Rear Front	-	2	Enquire
9	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD IN STOCK	-	15	Enquire
10	4G433962ED	Bracket, Support	4G433962ED Bracket, Support	-	1	Enquire
11	4G433962FA	Bracket, Exhaust Isolator	4G433962FA Bracket, Exhaust Isolator	-	2	Enquire
12	4G433510025	Rubber, Exhaust Mount	4G433510025 Rubber, Exhaust Mount	-	2	Enquire
13	699736	Clip, Exhaust Heatshields IN STOCK	699736 Clip, Exhaust Heatshields IN STOCK	-	14	Enquire
14	FD335220BA	INTERMED PIPE	FD335220BA INTERMED PIPE Includes Items 9, 13, 15 and 16	-	1	Enquire
15	4G435G221BC	Heatshield Assy, Exhaust, Intermediate Pipe, Front	4G435G221BC Heatshield Assy, Exhaust, Intermediate Pipe, Front	-	2	Enquire
16	4G435G221CA	Heatshield Assy, Exhaust, Intermediate Pipe, Rear	4G435G221CA Heatshield Assy, Exhaust, Intermediate Pipe, Rear	-	2	Enquire
17	FD335220AA	INTERMED PIPE	FD335220AA INTERMED PIPE Includes Items 9, 13, 15 and 16	-	1	Enquire
18	4G4370816AA	Bolt, M8 Flange Head IN STOCK	4G4370816AA Bolt, M8 Flange Head IN STOCK	-	4	Enquire
19	4G435F264AA	Spring, Exhaust Pipe Flange IN STOCK	4G435F264AA Spring, Exhaust Pipe Flange IN STOCK	-	4	Enquire
20	CD335230BF	Muffler, Exhaust	CD335230BF Muffler, Exhaust	-	1	Enquire
21	4G4317213BA	Sealing Ring Exhaust IN STOCK	4G4317213BA Sealing Ring Exhaust IN STOCK	-	2	Enquire
22	4G435220CA	INTERMEDIATE PIPE - EXHAUST IN STOCK	4G435220CA INTERMEDIATE PIPE - EXHAUST IN STOCK	-	2	Enquire
23	4G435N201DC	Bracket, Exhaust Pipe Mounting, Intermediate LH	4G435N201DC Bracket, Exhaust Pipe Mounting, Intermediate LH	-	1	Enquire
24	CD335N201CC	Bracket, Muffler Mounting Hanger Assy, Rear, LH	CD335N201CC Bracket, Muffler Mounting Hanger Assy, Rear, LH	-	1	Enquire
25	CD335N203AA	Bracket, Upper Tailpipe Mounting, LH	CD335N203AA Bracket, Upper Tailpipe Mounting, LH	-	1	Enquire
26	4G433510026	Isolator, Exhaust Hanger IN STOCK	4G433510026 Isolator, Exhaust Hanger IN STOCK	-	6	Enquire
27	703141	SCREW M8 x 16 CHROME FREE IN STOCK	703141 SCREW M8 x 16 CHROME FREE IN STOCK	-	8	Enquire
28	703121	Screw, M8 x 25, Hex Flange Head IN STOCK	703121 Screw, M8 x 25, Hex Flange Head IN STOCK	-	4	Enquire
