Aston Martin Vanquish (2001-2007) - Power Steering

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
91543 STEERING UNIT-RHD Enquire To Order
4R12256285AA ASSY - STEERING RACK COMP -LHD Enquire To Order
91542 STEERING UNIT-RHD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
699874 BOLT & WASHER HEX M12 x 151.7 Enquire To Order
Photo Part No Description Price (each) Stock
700988 BOLT M12 x 90 FLG HD Enquire To Order
Photo Part No Description Price (each) Stock
1R122410711 TRACK ROD END-RH Enquire To Order
Photo Part No Description Price (each) Stock
4R12246141AA TRACK ROD END Enquire To Order
1R122410712 TRACK ROD END-LH Enquire To Order
Photo Part No Description Price (each) Stock
703136PK Nut M14 x 1.5 Nylon Insert (Pack of 2) Enquire To Order
703565 NUT-M12 HEX FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
1R133A696AD PUMP & PLY ASSY PS Enquire To Order
Photo Part No Description Price (each) Stock
2485419 Pulley, power steering pump Enquire To Order
Photo Part No Description Price (each) Stock
699131 BOLT M8 x 70 x 1.25 Enquire To Order
Photo Part No Description Price (each) Stock
1R12240484AF HOSE ASSY PAS RESERVOIR TO PUMP SUCTION Enquire To Order
Photo Part No Description Price (each) Stock
699094 Clip, Hose, Spring Loaded, 16-25 Enquire To Order
Photo Part No Description Price (each) Stock
1R12384568AA RESERVOIR - HYDRAULIC OIL Enquire To Order
Photo Part No Description Price (each) Stock
1R12242415AB BRACKET ASSY - PAS RESERVOIR Enquire To Order
703265 Screw, M6 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
703199 Bolt M6x30 HEX FLG Chrome Free Enquire To Order
Photo Part No Description Price (each) Stock
3280356 GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
700119 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
5R133D746AA ASSY - PAS COOLER Enquire To Order
1R12442060AA MATRIX OIL COOLER - TRANSMISSION Enquire To Order
Photo Part No Description Price (each) Stock
700149 SCREW M8x30 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
700150 WASHER M8 X 19 X 3 PLAIN ZINC BRT Enquire To Order
Photo Part No Description Price (each) Stock
5R133A713AA HOSE ASSY - RACK TUBE TO PAS COOLER Enquire To Order
1R12245731AA HOSE ASSY-RACK TUBE TO PAS COOLER M/EAST Enquire To Order
1R12243791AB HOSE ASSY-RACK TUBE TO PAS COOLER Enquire To Order
Photo Part No Description Price (each) Stock
699721 HOSE CLAMP DIA 21 Enquire To Order
Photo Part No Description Price (each) Stock
1R12240482AE TUBE ASSY-PAS RACK RETURN RHD Enquire To Order
1R12241388AE TUBE ASY - PAS RACK RETURN LHD Enquire To Order
Photo Part No Description Price (each) Stock
5R133E525AA HOSE ASSY - COOLER TO PAS BOTTLE Enquire To Order
1R12245732AC Hose assy, cooler to PAS bottle Enquire To Order
1R12243790AC HOSE ASSY - COOLER TO PAS BOTTLE Enquire To Order
Photo Part No Description Price (each) Stock
699721 HOSE CLAMP DIA 21 Enquire To Order
Photo Part No Description Price (each) Stock
1R12240485AE HOSE ASSY-PAS PRESSURE LINE RHD Enquire To Order
1R12241387AE HOSE ASY - PAS PRESSURE LINE LHD Enquire To Order
Photo Part No Description Price (each) Stock
699710 CLIP - PAS PIPES TO CROSSMEMBER Enquire To Order
Photo Part No Description Price (each) Stock
699711 ‘P Clip, 23 x 15 x M6 Enquire To Order
Photo Part No Description Price (each) Stock
9361476 ISOLATOR - HOOD PUMP Enquire To Order
Photo Part No Description Price (each) Stock
699877 NUT M6 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
4R12256292AA STEERING RACK TRAVEL RESTRICTOR Enquire To Order
1R12254453AB Tie rod assy, short Enquire To Order
1R12254452AB Tie rod assy, long Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R122410105 SWITCH-P/S PMP PRESS Enquire To Order
Photo Part No Description Price (each) Stock
4R133494AA TUBE ASSY - PAS PUMP TO JOINT Enquire To Order
700004 HOSE CLAMP Enquire To Order
699547 Clamp, Hose Enquire To Order
...and 1 more part variants. See table on right for more details.
View All

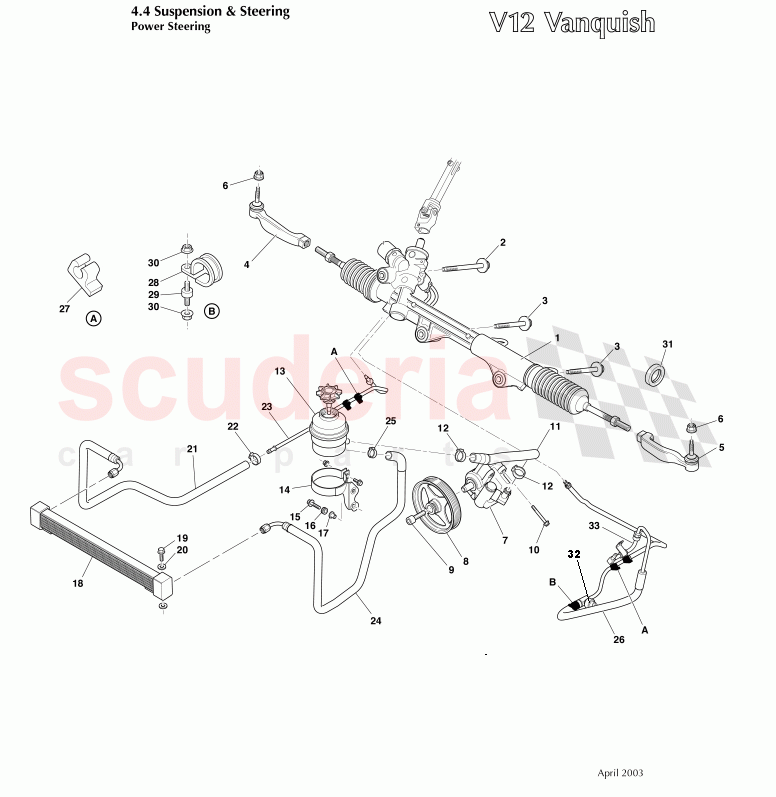

Power Steering of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 91543
STEERING UNIT-RHD
(SVO option)/Vanquish S From (V) 501506 		- 1 Enquire
1 4R12256285AA
ASSY - STEERING RACK COMP -LHD
(SVO option)/Vanquish S From (V) 501506 		- 1 Enquire
1 91542
STEERING UNIT-RHD
RHD 		- 1 Enquire
1 1R12242289AD
ASSY - STEERING RACK COMPLETE LHD
LHD 		- 1 Enquire
2 699874
BOLT & WASHER HEX M12 x 151.7 		- 1 Enquire
3 700988
BOLT M12 x 90 FLG HD 		- 2 Enquire
4 1R122410711
TRACK ROD END-RH 		- 1 Enquire
5 4R12246141AA
TRACK ROD END
(SVO option)/Vanquish S From (V) 501506 		- 2 Enquire
5 1R122410712
TRACK ROD END-LH 		- 1 Enquire
6 703136PK
Nut M14 x 1.5 Nylon Insert (Pack of 2)
(SVO option)/Vanquish S 		- 1 Enquire
6 703565
NUT-M12 HEX FLANGE 		- 2 Enquire
7 1R133A696AD
PUMP & PLY ASSY PS 		- 1 Enquire
8 2485419
Pulley, power steering pump 		- 1 Enquire
10 699131
BOLT M8 x 70 x 1.25
P/S pump to cylinder block 		- 4 Enquire
11 1R12240484AF
HOSE ASSY PAS RESERVOIR TO PUMP SUCTION 		- 1 Enquire
12 699094
Clip, Hose, Spring Loaded, 16-25 		- 2 Enquire
13 1R12384568AA
RESERVOIR - HYDRAULIC OIL 		- 1 Enquire
14 1R12242415AB
BRACKET ASSY - PAS RESERVOIR 		- 1 Enquire
14 703265
Screw, M6 x 16, Hex Flange Head 		- 1 Enquire
15 703199
Bolt M6x30 HEX FLG Chrome Free 		- 2 Enquire
16 3280356
GROMMET 		- 2 Enquire
17 700119
SPACER 		- 2 Enquire
18 5R133D746AA
ASSY - PAS COOLER
Vanquish S From (V) 501506 		- 1 Enquire
18 1R12442060AA
MATRIX OIL COOLER - TRANSMISSION 		- 1 Enquire
19 700149
SCREW M8x30 HEX FLG 		- 2 Enquire
20 700150
WASHER M8 X 19 X 3 PLAIN ZINC BRT 		- 2 Enquire
21 5R133A713AA
HOSE ASSY - RACK TUBE TO PAS COOLER
Vanquish S From (V) 501506 		- 1 Enquire
21 1R12245731AA
HOSE ASSY-RACK TUBE TO PAS COOLER M/EAST
Middle East cars 		- 1 Enquire
21 1R12243791AB
HOSE ASSY-RACK TUBE TO PAS COOLER 		- 1 Enquire
22 699721
HOSE CLAMP DIA 21 		- 1 Enquire
23 1R12240482AE
TUBE ASSY-PAS RACK RETURN RHD
RHD 		- 1 Enquire
23 1R12241388AE
TUBE ASY - PAS RACK RETURN LHD
LHD 		- 1 Enquire
24 5R133E525AA
HOSE ASSY - COOLER TO PAS BOTTLE
Vanquish S From (V) 501506 		- 1 Enquire
24 1R12245732AC
Hose assy, cooler to PAS bottle
Middle East cars 		- 1 Enquire
24 1R12243790AC
HOSE ASSY - COOLER TO PAS BOTTLE 		- 1 Enquire
25 699721
HOSE CLAMP DIA 21 		- 1 Enquire
26 1R12240485AE
HOSE ASSY-PAS PRESSURE LINE RHD
RHD 		- 1 Enquire
26 1R12241387AE
HOSE ASY - PAS PRESSURE LINE LHD
LHD 		- 1 Enquire
27 699710
CLIP - PAS PIPES TO CROSSMEMBER 		- 4 Enquire
28 699711
‘P Clip, 23 x 15 x M6 		- 1 Enquire
29 9361476
ISOLATOR - HOOD PUMP 		- 1 Enquire
30 699877
NUT M6 HEX FLG 		- 3 Enquire
31 4R12256292AA
STEERING RACK TRAVEL RESTRICTOR
(SVO option)/Vanquish S From (V) 501506 		- 2 Enquire
31 1R12254453AB
Tie rod assy, short 		- 1 Enquire
31 1R12254452AB
Tie rod assy, long 		- 1 Enquire
31 1R12254454AB
TRAVEL RESTRICTOR STEERING RACK 		- 2 Enquire
32 1R122410105
SWITCH-P/S PMP PRESS 		- 1 Enquire
33 4R133494AA
TUBE ASSY - PAS PUMP TO JOINT 		- 1 Enquire
33 700004
HOSE CLAMP 		- 1 Enquire
33 699547
Clamp, Hose 		- 1 Enquire
33 699999S
POWER STEERING FLUID COLD CLIMATE 20 LTR DRUM 		- - Enquire
