Steering Column of Aston Martin Aston Martin Vanquish (2001-2007)

View All

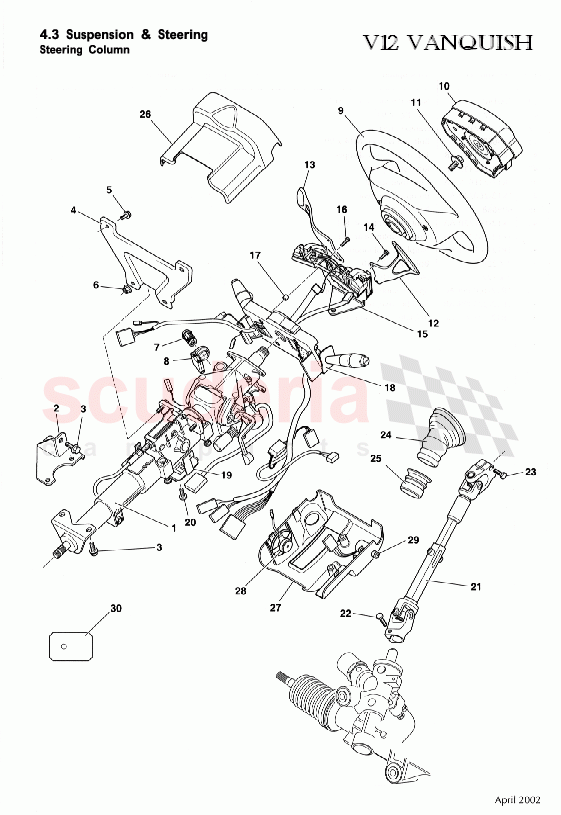

Aston Martin Vanquish (2001-2007) - Steering Column

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12252098AC	STEERING COLUMN ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12251354AA	MOUNT-LOWER COLUMN RHD	Enquire	To Order
	1R12251355AA	MOUNT-LOWER COLUMN LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12251398AF	BRACKET - STEERING COLUMN UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703739	Nut, M8, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R122510564	IGNITION BARREL &KEY -TO NUMBER VANQUISH	Enquire	To Order
	37122844AA	IGNITION SWITCH - INHIBIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37121756AA	ASSEMBLY-PATS TRANSCEIVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6R13253070AAW	STEERING WHEEL - AIRBAG - 6 SEGMENT	Enquire	To Order
	6R13253068AAW	Steering wheel, airbag, 6 segment cubic print	Enquire	To Order
	1R12252715AD	AIRBAG STEERING WHEEL - STANDARD (LEATHER)	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	2380901	WASHER 15/32 ID x 3/8 OD x 8 SWG	Enquire	To Order
	1R12834629ABW	ASSY TRIMMED PADDLE LH	Enquire	To Order
	25124483AA	M10 X 25 8.8 HEX HD SCREW PATCHED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12383293AF	PADDLE - LH (-)	Enquire	To Order
	1R12383293AF	PADDLE - LH (-)	Enquire	To Order
	1R12834628ABW	ASSY TRIMMED PADDLE - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12383292AF	PADDLE - RH (+)	Enquire	To Order
	1R12383292AF	PADDLE - RH (+)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91927	PADDLE SHIFT BRK ASY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699869	SCREW &WASHER M4x10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12381987AB	SPACER-PADDLESHIFT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370391AD	STEERING COLUMN SWITCH PACK NON AUTO HEADLAMPS	Enquire	To Order
	1R12370200AD	STEERING COLUMN SWITCH PACK AUTO HEADLAMPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12252099AC	BRACKET - CONNECTOR- STEERING COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699870	SCREW M6x10 PAN HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12252166AB	INTERMEDIATE SHAFT ASSY RHD	Enquire	To Order
	1R12252167AB	INTERMEDIATE SHAFT ASSY LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703153	BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697193	BOLT M8 x 40 HEX HD S	Enquire	To Order
	701342PK	NUT M8 HEX P/T PLAS8 PACK OF 5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12250876AC	GAITER-INT.SHAFT	Enquire	To Order
	699872	Screw, M5 x 50 taptite pan torx	Enquire	To Order
	701885	LOCTITE 243-10ml BTL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R133C695AAW	UPPER STEERING COLUMN COWL	Enquire	To Order
	1R12831052AD	COLUMN COWL UPPER SUBSTRATE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R133K512AAW	LOWER STEERING COLUMN COWL	Enquire	To Order
	700604	SCREW M4x14 PAN M/C	Enquire	To Order
	700100	SCREW M4x12 PAN	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12373638AA	Speaker, audible warning (part of lower steering cowl)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2586257	HORN BUTTON (ACUTE)	Enquire	To Order
	2586255	HORN BUTTON (OLD)	Enquire	To Order
	2586256	HORN BUTTON (NEW)	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12252098AC	STEERING COLUMN ASSY	1R12252098AC STEERING COLUMN ASSY	-	1	Enquire
2	1R12251354AA	MOUNT-LOWER COLUMN RHD	1R12251354AA MOUNT-LOWER COLUMN RHD RHD	-	1	Enquire
2	1R12251355AA	MOUNT-LOWER COLUMN LHD	1R12251355AA MOUNT-LOWER COLUMN LHD LHD	-	1	Enquire
3	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	703188 SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	-	4	Enquire
4	1R12251398AF	BRACKET - STEERING COLUMN UPPER	1R12251398AF BRACKET - STEERING COLUMN UPPER	-	1	Enquire
5	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	703188 SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	-	2	Enquire
6	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	-	2	Enquire
7	1R122510564	IGNITION BARREL &KEY -TO NUMBER VANQUISH	1R122510564 IGNITION BARREL &KEY -TO NUMBER VANQUISH	-	1	Enquire
7	37122844AA	IGNITION SWITCH - INHIBIT	37122844AA IGNITION SWITCH - INHIBIT	-	1	Enquire
8	37121756AA	ASSEMBLY-PATS TRANSCEIVER	37121756AA ASSEMBLY-PATS TRANSCEIVER	-	1	Enquire
9	6R13253070AAW	STEERING WHEEL - AIRBAG - 6 SEGMENT	6R13253070AAW STEERING WHEEL - AIRBAG - 6 SEGMENT 06MY from (V) 501949	-	1	Enquire
9	6R13253068AAW	Steering wheel, airbag, 6 segment cubic print	6R13253068AAW Steering wheel, airbag, 6 segment cubic print 06MY from (V) 501949	-	1	Enquire
9	1R12252715AD	AIRBAG STEERING WHEEL - STANDARD (LEATHER)	1R12252715AD AIRBAG STEERING WHEEL - STANDARD (LEATHER) Up to (V) 501285	-	1	Enquire
9	4R12253068AA	AIRBAG STEERING WHEEL - 6 SEGMENT PLATINUM SILVER	4R12253068AA AIRBAG STEERING WHEEL - 6 SEGMENT PLATINUM SILVER From (V) 501286	-	1	Enquire
9	1R12253070ABW	STEERING WHEEL WHEEL - 6 SEGMENT COLOUR KEY LEATHER	1R12253070ABW STEERING WHEEL WHEEL - 6 SEGMENT COLOUR KEY LEATHER	-	1	Enquire
9	1R12252715AD	AIRBAG STEERING WHEEL - STANDARD (LEATHER)	1R12252715AD AIRBAG STEERING WHEEL - STANDARD (LEATHER)	-	1	Enquire
11	2380901	WASHER 15/32 ID x 3/8 OD x 8 SWG	2380901 WASHER 15/32 ID x 3/8 OD x 8 SWG	-	1	Enquire
11	1R12834629ABW	ASSY TRIMMED PADDLE LH	1R12834629ABW ASSY TRIMMED PADDLE LH	-	1	Enquire
11	25124483AA	M10 X 25 8.8 HEX HD SCREW PATCHED	25124483AA M10 X 25 8.8 HEX HD SCREW PATCHED	-	1	Enquire
12	1R12383293AF	PADDLE - LH (-)	1R12383293AF PADDLE - LH (-) From (V) 500516-21 + 526 onwards	-	1	Enquire
12	1R12383293AF	PADDLE - LH (-)	1R12383293AF PADDLE - LH (-) Up to (V) 500515 + 500522-525	-	1	Enquire
12	1R12834628ABW	ASSY TRIMMED PADDLE - RH	1R12834628ABW ASSY TRIMMED PADDLE - RH	-	1	Enquire
13	1R12383292AF	PADDLE - RH (+)	1R12383292AF PADDLE - RH (+) From (V) 500516-21 + 526 onwards	-	1	Enquire
13	1R12383292AF	PADDLE - RH (+)	1R12383292AF PADDLE - RH (+) Up to (V) 500515 + 500522-525	-	1	Enquire
14	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	4	Enquire
15	91927	PADDLE SHIFT BRK ASY	91927 PADDLE SHIFT BRK ASY	-	1	Enquire
16	699869	SCREW &WASHER M4x10	699869 SCREW &WASHER M4x10	-	4	Enquire
17	1R12381987AB	SPACER-PADDLESHIFT BRACKET	1R12381987AB SPACER-PADDLESHIFT BRACKET	-	4	Enquire
18	1R12370391AD	STEERING COLUMN SWITCH PACK NON AUTO HEADLAMPS	1R12370391AD STEERING COLUMN SWITCH PACK NON AUTO HEADLAMPS	-	1	Enquire
18	1R12370200AD	STEERING COLUMN SWITCH PACK AUTO HEADLAMPS	1R12370200AD STEERING COLUMN SWITCH PACK AUTO HEADLAMPS	-	1	Enquire
19	1R12252099AC	BRACKET - CONNECTOR- STEERING COLUMN	1R12252099AC BRACKET - CONNECTOR- STEERING COLUMN	-	1	Enquire
20	699870	SCREW M6x10 PAN HD	699870 SCREW M6x10 PAN HD	-	4	Enquire
21	1R12252166AB	INTERMEDIATE SHAFT ASSY RHD	1R12252166AB INTERMEDIATE SHAFT ASSY RHD RHD	-	1	Enquire
21	1R12252167AB	INTERMEDIATE SHAFT ASSY LHD	1R12252167AB INTERMEDIATE SHAFT ASSY LHD LHD	-	1	Enquire
22	703153	BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE	703153 BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE	-	1	Enquire
23	697193	BOLT M8 x 40 HEX HD S	697193 BOLT M8 x 40 HEX HD S	-	1	Enquire
23	701342PK	NUT M8 HEX P/T PLAS8 PACK OF 5	701342PK NUT M8 HEX P/T PLAS8 PACK OF 5	-	1	Enquire
24	1R12250876AC	GAITER-INT.SHAFT	1R12250876AC GAITER-INT.SHAFT	-	1	Enquire
24	699872	Screw, M5 x 50 taptite pan torx	699872 Screw, M5 x 50 taptite pan torx	-	4	Enquire
24	701885	LOCTITE 243-10ml BTL	701885 LOCTITE 243-10ml BTL	-	-	Enquire
26	5R133C695AAW	UPPER STEERING COLUMN COWL	5R133C695AAW UPPER STEERING COLUMN COWL Vanquish S From (V) 501506	-	1	Enquire
26	1R12831052AD	COLUMN COWL UPPER SUBSTRATE ASSY	1R12831052AD COLUMN COWL UPPER SUBSTRATE ASSY	-	1	Enquire
27	5R133K512AAW	LOWER STEERING COLUMN COWL	5R133K512AAW LOWER STEERING COLUMN COWL Vanquish S From (V) 501506	-	1	Enquire
27	700604	SCREW M4x14 PAN M/C	700604 SCREW M4x14 PAN M/C Lower cowl attach	-	2	Enquire
27	700100	SCREW M4x12 PAN	700100 SCREW M4x12 PAN Upper cowl attach	-	3	Enquire
27	1R12833580AF	COLUMN COWL LOWER ASSY - COMPLETE	1R12833580AF COLUMN COWL LOWER ASSY - COMPLETE	-	1	Enquire
27	699587	WASHER M4 BLACK GRD 4.8 ZINC & BLK PASS	699587 WASHER M4 BLACK GRD 4.8 ZINC & BLK PASS	-	3	Enquire
28	1R12373638AA	Speaker, audible warning (part of lower steering cowl)	1R12373638AA Speaker, audible warning (part of lower steering cowl)	-	1	Enquire
30	2586257	HORN BUTTON (ACUTE)	2586257 HORN BUTTON (ACUTE)	-	1	Enquire
30	2586255	HORN BUTTON (OLD)	2586255 HORN BUTTON (OLD)	-	1	Enquire
30	2586256	HORN BUTTON (NEW)	2586256 HORN BUTTON (NEW)	-	1	Enquire
30	3R12255638AA	ASSY CLAMP STEERING COLUMN	3R12255638AA ASSY CLAMP STEERING COLUMN From (V) 500516-21 + 526 onwards	-	1	Enquire
30	1R12652444AB	LOCK SET RHD	1R12652444AB LOCK SET RHD RHD	-	1	Enquire
30	1R12652445AB	LOCK SET LHD	1R12652445AB LOCK SET LHD LHD	-	1	Enquire
30	1R12835212AA	COLUMN STALK SHIELD RH	1R12835212AA COLUMN STALK SHIELD RH	-	1	Enquire
30	1R12835213AA	COLUMN STALK SHIELD LH	1R12835213AA COLUMN STALK SHIELD LH	-	1	Enquire
