Aston Martin Vanquish (2001-2007) - Rear Suspension

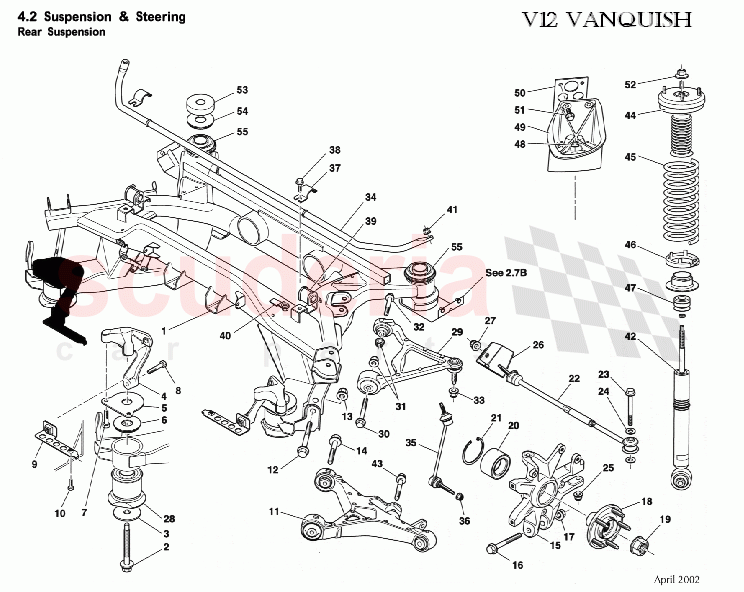

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12222148AG	FRAME ASSY - REAR BUSHED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12265873AA	Bolt & washer, M12 x 140, rear frame attach, rear	Enquire	To Order
	700129	BOLT M12x105 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2390197	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12162478AB	SUBFRAME ADAPT - RH	Enquire	To Order
	1R12162479AA	SUBFRAME ADAPTOR-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12162480AA	Plate, subframe adaptor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700261	SCREW M10x25 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699858	BOLT M10x50 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12161665AA	NUTPLATE - REAR SUBFRAME LOWER LH	Enquire	To Order
	1R12161666AA	NUTPLATE - REAR SUBFRAME LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

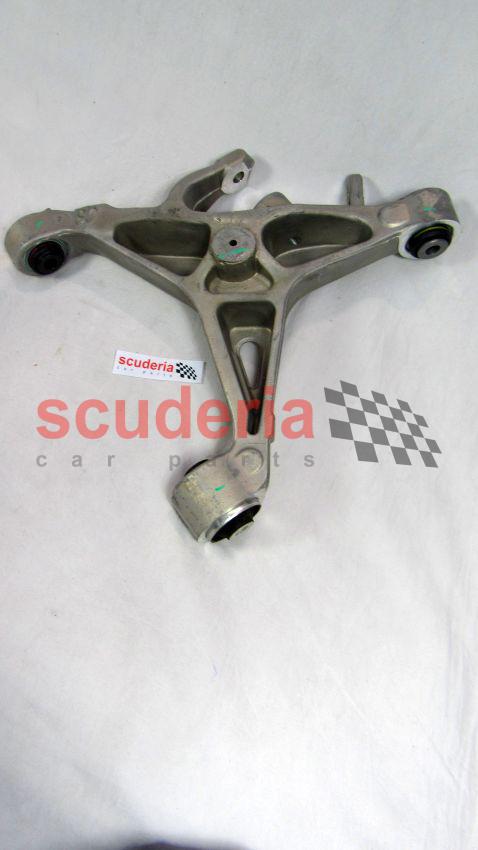

	1R122610091	ARM & BUSH LOWER RH	Enquire	To Order
	700247	SCREW &WSHR M6x20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

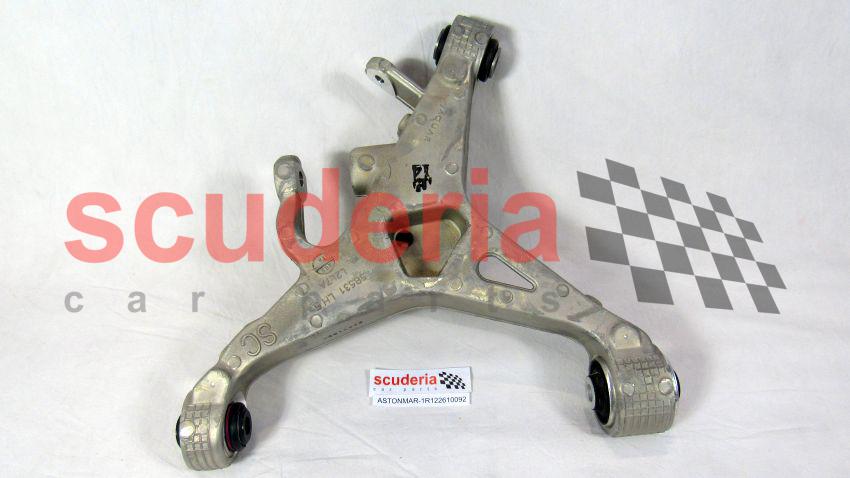

	1R122610092	ARM & BUSH LOWER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703154	BOLT & WASHER M14x99 HEX CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703565	NUT-M12 HEX FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703154	BOLT & WASHER M14x99 HEX CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R135A970AA	KNUCKLE - REAR RH	Enquire	To Order
	5R135A971AA	KNUCKLE - REAR LH	Enquire	To Order
	1R12260440AG	KNUCKLE - REAR WHEEL RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	703146	BOLT M14 x 128.5 HEX FLANGE D C010 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703136PK	Nut M14 x 1.5 Nylon Insert (Pack of 2)	Enquire	To Order
	699862	NUT &WASHER M14 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432B663AD	HUB & BEARING ASSEMBLY, FRONT	Enquire	To Order
	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	Enquire	To Order
	1R122610221	HUB ASSY-REAR WHEEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6W834B423AA	Nut, Rear Drive Shaft to Rear Hub Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12261712AA	BEARING REAR HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12261713AA	CIRCLIP-REAR HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R122610747	Toe Link with Rubber Boot	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12264051AA	BOLT - KNUCKLE REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12265814AA	SPACER 5MM - TOELINK REAR SUSPENSION	Enquire	To Order
	1R12262474AA	SPACER 1mm - TOELINK REAR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12262874AB	HEATSHIELD - TIE ROD - RH	Enquire	To Order
	707926	NUT M10 HEX FLANGE P/T	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12262875AB	HEATSHIELD - TIE ROD LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703565	NUT-M12 HEX FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

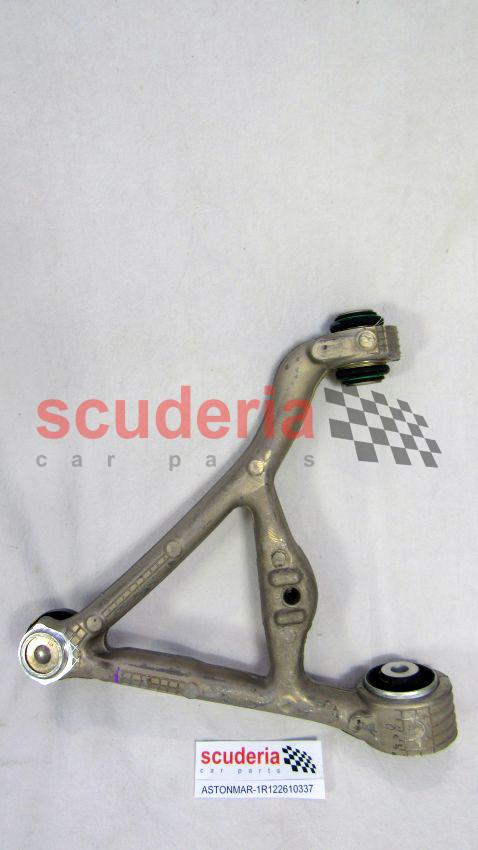

	1R122610337	Arm & Bush Assembly Upper RH	Enquire	To Order
	1R12271696AD	INSUL ASSY - REAR FRAME TO BODY - FRT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

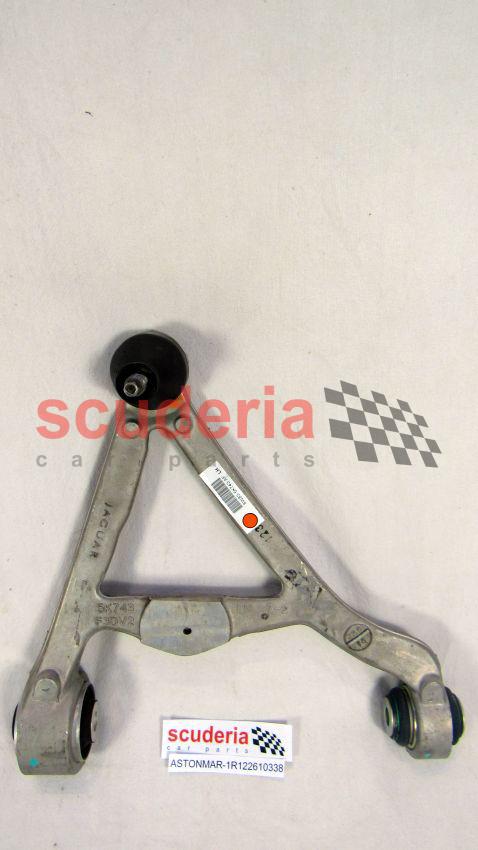

	1R122610338	ARM & BUSH ASSEMBLY UPPER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699865	BOLT M12 X 74 HEX HEAD FLANGE CONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703565	NUT-M12 HEX FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699865	BOLT M12 X 74 HEX HEAD FLANGE CONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703565	NUT-M12 HEX FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

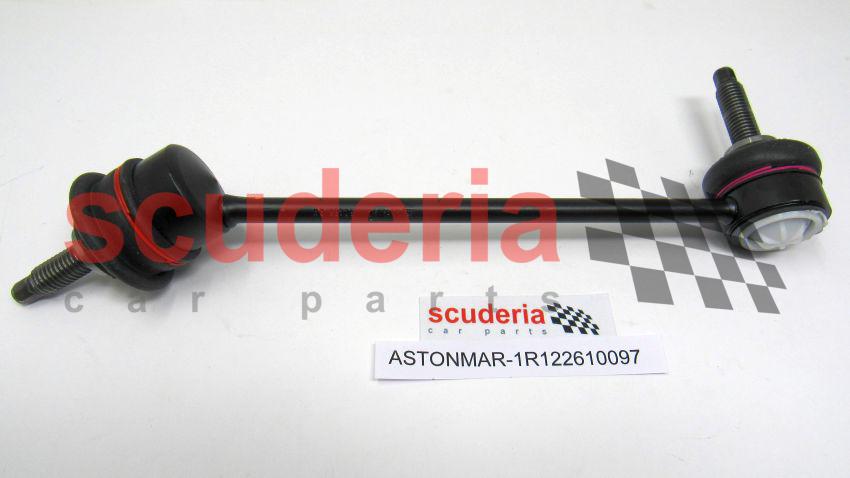

	1R122610097	LINK-ANTI ROLL BAR RH	Enquire	To Order
	1R122610096	ANTI-ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

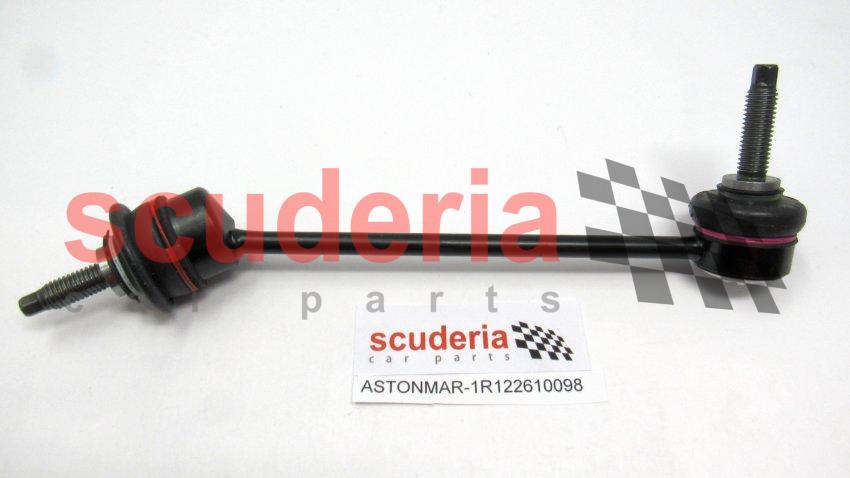

	1R122610098	Link-Anti Roll Bar LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707926	NUT M10 HEX FLANGE P/T	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R122610099	MOUNTING BRACKET-ARB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699866	BOLT M10x20 HEX FLG CONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R122610100	BUSH-ANTI ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700148	NUT & RETAINER M10 HEX FLG PT PLAS 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707926	NUT M10 HEX FLANGE P/T	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12262197AG	DAMPER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703154	BOLT & WASHER M14x99 HEX CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12264130AB	ASSY - DAMPER TOP MOUNT REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12260437AE	ROAD SPRING - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12231695AA	CLIP-ROAD SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12260749AC	BUMP RUBBER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699868	NUT M8 HEX FLG PLAS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12161220AC	STRUT MOUNTING RR RH	Enquire	To Order
	1R12161221AC	STRUT MOUNTING RR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12161311AA	NUTPLATE - STRUT MOUNT REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700224	SCREW M8x30 HEX FLG8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703565	NUT-M12 HEX FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160958AC	SPACER - SUBFRAME MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12225399AA	SPACER-REAR SUBFRAME TO TUB	Enquire	To Order
	1R12223999AC	SNUBBER - REAR - REAR FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12271697AC	INSUL ASSY - REAR FRAME TO BODY - RR	Enquire	To Order
	701885	LOCTITE 243-10ml BTL	Enquire	To Order
