Parking Brake-Manual Rhd

Aston Martin V12 Zagato

Find Your Part

Aston Martin V12 Zagato - Parking Brake-MANUAL RHD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G433011504 Handbrake Lever Assembly, RHD $328.18 To Order
Photo Part No Description Price (each) Stock
4G432A686BB Bracket Assembly, Handbrake Lever, RHD $897.20 To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.29 IN STOCK
Photo Part No Description Price (each) Stock
AD232853AB CABLE & CONDU ASSY PARK BRAKE $384.84 To Order
Photo Part No Description Price (each) Stock
6G33439136AA Trunnion, Handbrake Cable $2.34 To Order
Photo Part No Description Price (each) Stock
7G432K605AA Pin, Pivot Cable, Handbrake $2.07 To Order
Photo Part No Description Price (each) Stock
6G33100063AAPK FIXER-PUSH ON 6mm SHAFT PACK OF 10 $13.32 To Order
Photo Part No Description Price (each) Stock
AD232C464BB Caliper, Handbrake, RH $672.88 To Order
Photo Part No Description Price (each) Stock
A4G432C564CA Bolt, M10 x 87, Hex Flange Hd Enquire To Order
Photo Part No Description Price (each) Stock
4G432C562BB PADS HANDBRAKE $181.75 IN STOCK
Photo Part No Description Price (each) Stock
694891 P-CLIP $4.08 To Order
Photo Part No Description Price (each) Stock
703163 Nut, M6, Hex Flange Head, Locking $0.12 IN STOCK
Photo Part No Description Price (each) Stock
3784687 Switch, Handbrake $364.71 To Order
Photo Part No Description Price (each) Stock
702282 CLIP 16-18 5x6 5x1-6 $1.34 To Order
View All

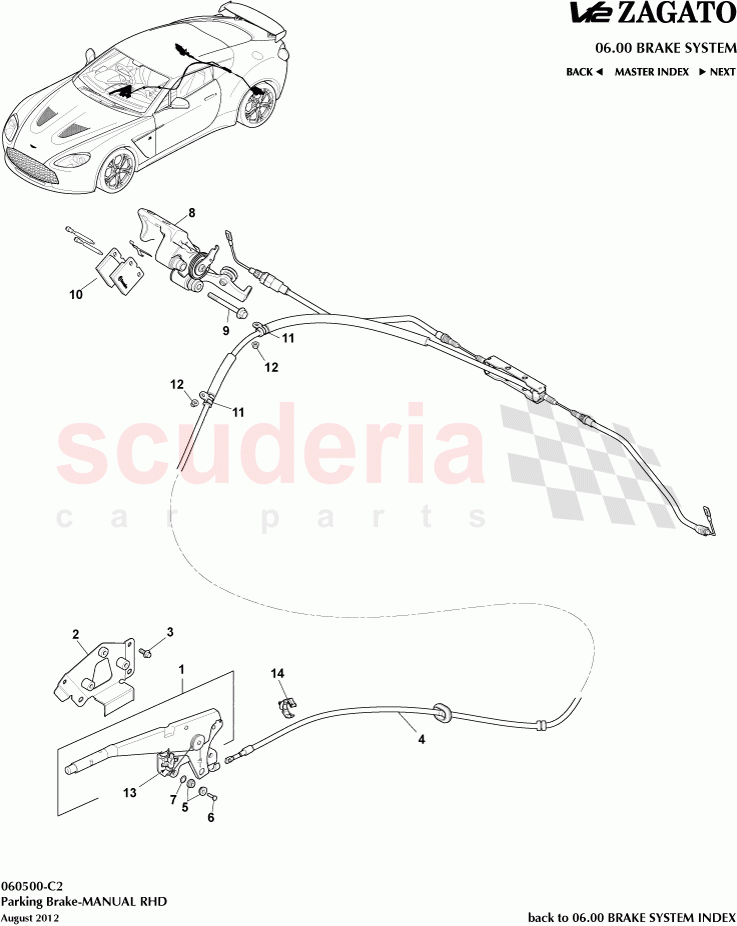

Parking Brake-MANUAL RHD of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- AD232C465BB
Caliper, Handbrake, LH
Excludes Pads 		$672.88 1
- 8D432B296BA
Pins, Pad Retaining
Pack of 2 		- 4 Enquire
- 4G432W065AA
BOOT - SLIDING PIN 		$49.60 2
- 4G43224259BA
SPRING - ANTI RATTLE HANDBRAKE CAL RH
IN STOCK 		$71.07 2
1 4G433011504
Handbrake Lever Assembly, RHD 		$328.18 1
2 4G432A686BB
Bracket Assembly, Handbrake Lever, RHD 		$897.20 1
3 703121
Screw, M8 x 25, Hex Flange Head
IN STOCK 		$0.29 6
4 AD232853AB
CABLE & CONDU ASSY PARK BRAKE 		$384.84 1
5 6G33439136AA
Trunnion, Handbrake Cable 		$2.34 2
6 7G432K605AA
Pin, Pivot Cable, Handbrake 		$2.07 1
7 6G33100063AAPK
FIXER-PUSH ON 6mm SHAFT PACK OF 10
Pack of 10 		$13.32 1
8 AD232C464BB
Caliper, Handbrake, RH
Excludes Pads 		$672.88 1
9 A4G432C564CA
Bolt, M10 x 87, Hex Flange Hd 		- 4 Enquire
10 4G432C562BB
PADS HANDBRAKE
Excludes Pins & Anti Rattle Springs
IN STOCK 		$181.75 1
11 694891
P-CLIP 		$4.08 2
12 703163
Nut, M6, Hex Flange Head, Locking
IN STOCK 		$0.12 2
13 3784687
Switch, Handbrake 		$364.71 1
14 702282
CLIP 16-18 5x6 5x1-6 		$1.34 1
