Brake Tubes and Hoses-LHD of Aston Martin Aston Martin V12 Zagato

View All

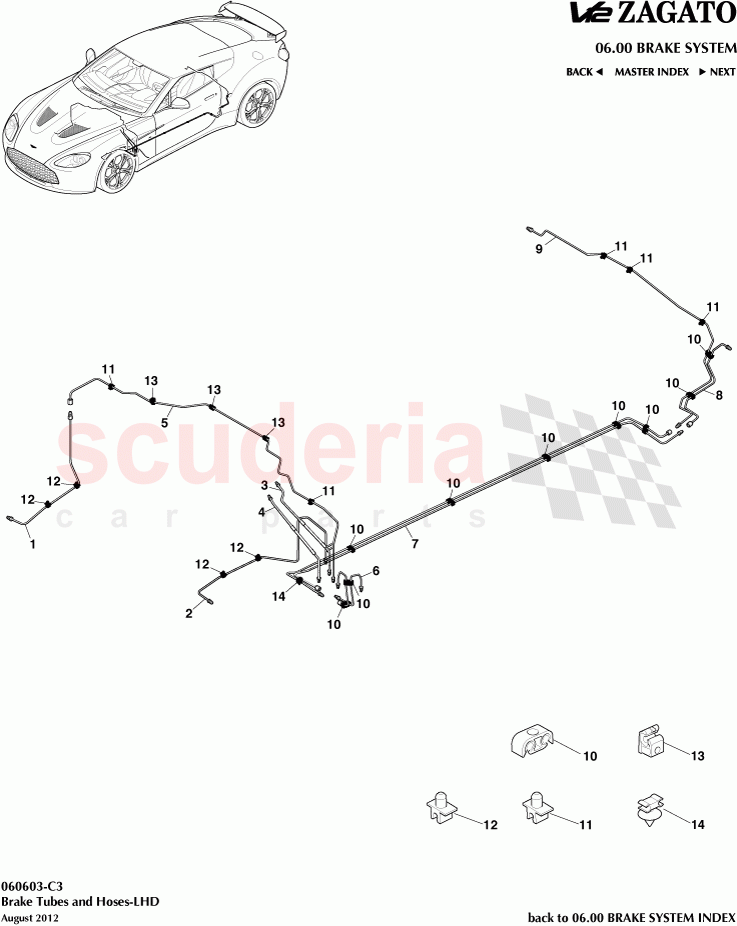

Aston Martin V12 Zagato - Brake Tubes and Hoses-LHD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G332263AB	BRAKE PIPE-MODLATOR TO FRONT RH SECTION1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332264AA	BRAKE PIPE MODULATOR TO FRONT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432M020AC	BRAKE PIPE - MASTER CYLINDER TO MODULTR - PRIMARY - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G332M019AB	Tube Assy, Master Cylinder to Modulator, Secondary	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432263BD	TUBE ASSY - FRONT WHEEL BRAKE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332A478AB	Hose Assy, Brake, Modulator to Under Floor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG332A478BA	Tube Assy, Rear Wheel Brake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332268CB	TUBE ASSY - REAR WHEEL BRAKE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G332267CA	TUBE ASSY - REAR WHEEL BRAKE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4379125AA	CLIP - BRAKE PIPE DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43ANR1864AA	CLIP - BRAKE PIPE SINGLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33ANR1864AA	CLIP - BRAKE PIPE SINGLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4379124AA	Clip, Brake Pipe, Single	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43ANR5999AA	CLIP - BRAKE PIPE DOUBLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G332263AB	BRAKE PIPE-MODLATOR TO FRONT RH SECTION1	6G332263AB BRAKE PIPE-MODLATOR TO FRONT RH SECTION1	-	1	Enquire
2	6G332264AA	BRAKE PIPE MODULATOR TO FRONT LH	6G332264AA BRAKE PIPE MODULATOR TO FRONT LH	-	1	Enquire
3	4G432M020AC	BRAKE PIPE - MASTER CYLINDER TO MODULTR - PRIMARY - LHD	4G432M020AC BRAKE PIPE - MASTER CYLINDER TO MODULTR - PRIMARY - LHD	-	1	Enquire
4	4G332M019AB	Tube Assy, Master Cylinder to Modulator, Secondary	4G332M019AB Tube Assy, Master Cylinder to Modulator, Secondary	-	1	Enquire
5	4G432263BD	TUBE ASSY - FRONT WHEEL BRAKE RH	4G432263BD TUBE ASSY - FRONT WHEEL BRAKE RH Includes Items 11 & 13	-	1	Enquire
6	6G332A478AB	Hose Assy, Brake, Modulator to Under Floor	6G332A478AB Hose Assy, Brake, Modulator to Under Floor Includes Item 10	-	1	Enquire
7	BG332A478BA	Tube Assy, Rear Wheel Brake	BG332A478BA Tube Assy, Rear Wheel Brake Includes Items 10 & 14	-	1	Enquire
8	6G332268CB	TUBE ASSY - REAR WHEEL BRAKE LH	6G332268CB TUBE ASSY - REAR WHEEL BRAKE LH	-	1	Enquire
9	7G332267CA	TUBE ASSY - REAR WHEEL BRAKE RH	7G332267CA TUBE ASSY - REAR WHEEL BRAKE RH	-	1	Enquire
10	4G4379125AA	CLIP - BRAKE PIPE DOUBLE	4G4379125AA CLIP - BRAKE PIPE DOUBLE	-	9	Enquire
11	4G43ANR1864AA	CLIP - BRAKE PIPE SINGLE	4G43ANR1864AA CLIP - BRAKE PIPE SINGLE	-	5	Enquire
12	8D33ANR1864AA	CLIP - BRAKE PIPE SINGLE	8D33ANR1864AA CLIP - BRAKE PIPE SINGLE	-	4	Enquire
13	4G4379124AA	Clip, Brake Pipe, Single	4G4379124AA Clip, Brake Pipe, Single	-	3	Enquire
14	4G43ANR5999AA	CLIP - BRAKE PIPE DOUBLE	4G43ANR5999AA CLIP - BRAKE PIPE DOUBLE	-	1	Enquire
