Aston Martin V12 Zagato - Front Brakes Sub System

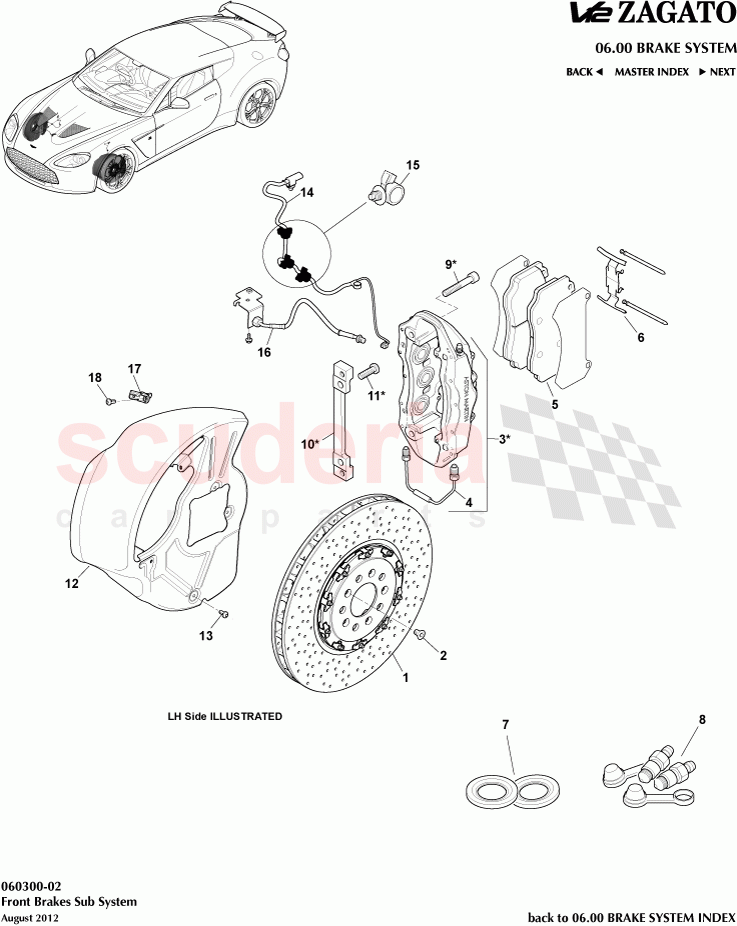

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ED231125CA	DSC FRT WHL BRK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NSS	Seat Belt Loops Frt/ Rear and Left/Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332D007BB	BRAKE PAD KIT FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3332C588AA	Kit, pad spring & pin, front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3332180AA	KIT DUST BOOT FRONT (PER CALIPER)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432C563AA	Kit, Bleed Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD232K005AA	Shield Front Brake Disc, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313D026AA	Screw, retaining disc shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332L507AA	Pad Wear Lead, Front	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432078AD	Hose Assembly, Front Wheel Brake, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439010039	Sensor, Wheel Speed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313D026BA	Screw, wheel speed sensor	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD232C463AA	CALIPER ASSY FRONT LH GREY W/O PADS INC BOLTS	AD232C463AA CALIPER ASSY FRONT LH GREY W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C463FA	CALIPER ASSY FRONT LH YELLOW W/O PADS INC BOLTS	AD232C463FA CALIPER ASSY FRONT LH YELLOW W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C463DA	CALIPER ASSY FRONT LH RED W/O PADS INC BOLTS	AD232C463DA CALIPER ASSY FRONT LH RED W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C462CB	CALIPER ASSY FRONT RH BLACK W/O PADS INC BOLTS	AD232C462CB CALIPER ASSY FRONT RH BLACK W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C462AA	CALIPER ASSY FRONT RH GREY W/O PADS INC BOLTS	AD232C462AA CALIPER ASSY FRONT RH GREY W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C462FA	CALIPER ASSY FRONT RH YELLOW W/O PADS INC BOLTS	AD232C462FA CALIPER ASSY FRONT RH YELLOW W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C462DA	CALIPER ASSY FRONT RH RED W/O PADS INC BOLTS	AD232C462DA CALIPER ASSY FRONT RH RED W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	4G4333693AA	Cap, Bleed Screw	4G4333693AA Cap, Bleed Screw Per Caliper	-	1	Enquire
-	AD232K004AA	SHIELD - FRONT BRAKE DISC RH	AD232K004AA SHIELD - FRONT BRAKE DISC RH	-	1	Enquire
-	4G432078AD	Hose Assembly, Front Wheel Brake, LH	4G432078AD Hose Assembly, Front Wheel Brake, LH	-	1	Enquire
1	ED231125CA	DSC FRT WHL BRK	ED231125CA DSC FRT WHL BRK	-	2	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk	-	4	Enquire
3*	AD232C463CB	CALIPER ASSY FRONT LH BLACK W/O PADS INC BOLTS	AD232C463CB CALIPER ASSY FRONT LH BLACK W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
4	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 3	-	2	Enquire
5	8D332D007BB	BRAKE PAD KIT FRONT	8D332D007BB BRAKE PAD KIT FRONT Axle Set	-	1	Enquire
6	8D3332C588AA	Kit, pad spring & pin, front	8D3332C588AA Kit, pad spring & pin, front Per Caliper	-	1	Enquire
7	8D3332180AA	KIT DUST BOOT FRONT (PER CALIPER)	8D3332180AA KIT DUST BOOT FRONT (PER CALIPER) Per Caliper	-	1	Enquire
8	4G432C563AA	Kit, Bleed Screw	4G432C563AA Kit, Bleed Screw Per Caliper	-	1	Enquire
9*	8D33CD60AA	Bolt, Caliper to Adaptor Bracket ARRIVING SOON	8D33CD60AA Bolt, Caliper to Adaptor Bracket Always Replace After Removal ARRIVING SOON	-	4	Enquire
10*	8D332810981	Adaptor Bracket, Front Caliper	8D332810981 Adaptor Bracket, Front Caliper Includes Item 11	-	2	Enquire
11*	8D33YA64AA	BOLT - ADAPTOR BRACKET TO KNUCKLE	8D33YA64AA BOLT - ADAPTOR BRACKET TO KNUCKLE	-	4	Enquire
12	AD232K005AA	Shield Front Brake Disc, LH	AD232K005AA Shield Front Brake Disc, LH	-	1	Enquire
13	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield	-	8	Enquire
14	8D332L507AA	Pad Wear Lead, Front ARRIVING SOON	8D332L507AA Pad Wear Lead, Front ARRIVING SOON	-	2	Enquire
15	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) Pack of 100	-	6	Enquire
16	4G432078AD	Hose Assembly, Front Wheel Brake, LH	4G432078AD Hose Assembly, Front Wheel Brake, LH	-	1	Enquire
17	4G439010039	Sensor, Wheel Speed	4G439010039 Sensor, Wheel Speed	-	2	Enquire
18	4G4313D026BA	Screw, wheel speed sensor	4G4313D026BA Screw, wheel speed sensor	-	2	Enquire
