Aston Martin Rapide - Fuel Tank

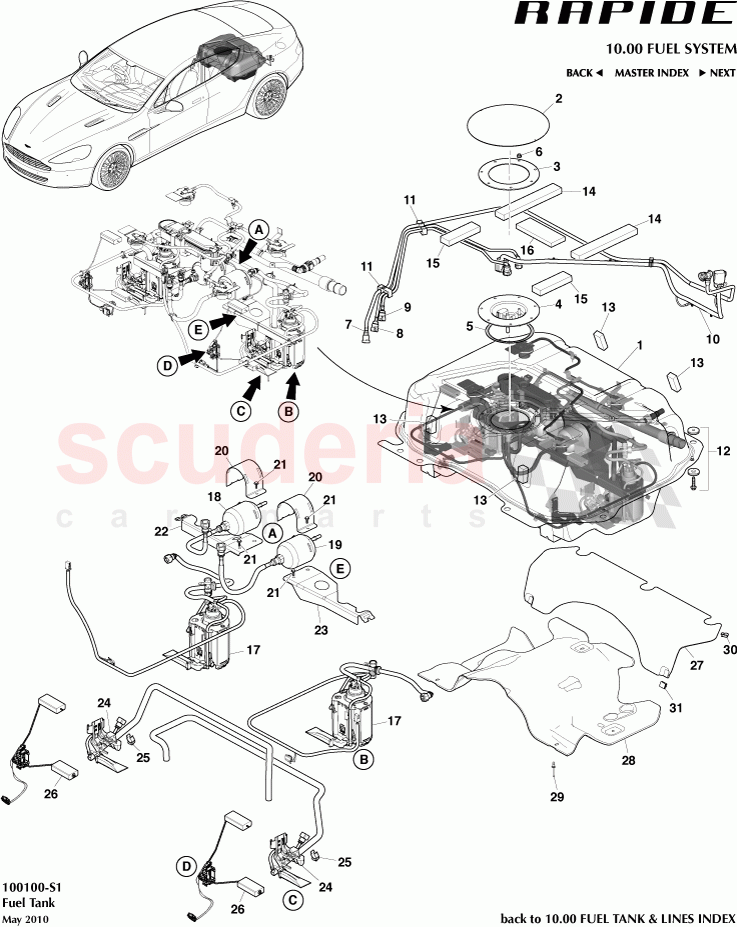

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD439K007AD	FUEL TANK ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439074EA	PLATE ASY FU TANK CV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4332133BA	Clamp Plate, Fuel Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD433710175	KIT - HARNESS - FUEL TANK	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G439073AA	Gasket, Fuel Tank Service Cover	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439D667BA	Tube assy, fuel vapour purge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439J280BA	Tube assy, fuel supply R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439J280AA	Tube assy, fuel supply L	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD433710175	KIT - HARNESS - FUEL TANK	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G439294AA	Clip, Fuel Line to Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43P9B154BA	FUEL TANK FIXING BOLT ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43482550AA	FOAM PAD - TANK UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43M2D28BB	Foam pad	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43M2D28AA	Insulating strip, rubber	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43M2D28CB	Insulating strip, rubber	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439H307AB	PUMP AND RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439155BA	Fuel Filter LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439155AA	Fuel Filter RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439180AA	Bracket, filter assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43M1A292BA	Bolt, M5 x 12, self locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439346DB	Bracket, fuel pump mounting RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439346CB	Bracket, fuel pump mounting LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439275AA	Sender Assy, fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701181	Clip, 16 x 6.5 x 1.5-6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439E275AA	Sensor - Fuel Tank Sender	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD439K007AC	FUEL TANK ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439A032AB	Shield, fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W710409S300	Rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD431861AA	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD431861BA	Clip	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD439K007AD	FUEL TANK ASSEMBLY	AD439K007AD FUEL TANK ASSEMBLY	-	1	Enquire
2	4G439074EA	PLATE ASY FU TANK CV	4G439074EA PLATE ASY FU TANK CV	-	1	Enquire
3	4G4332133BA	Clamp Plate, Fuel Tank	4G4332133BA Clamp Plate, Fuel Tank	-	1	Enquire
4	DD433710175	KIT - HARNESS - FUEL TANK ARRIVING SOON	DD433710175 KIT - HARNESS - FUEL TANK ARRIVING SOON	-	1	Enquire
5	4G439073AA	Gasket, Fuel Tank Service Cover ARRIVING SOON	4G439073AA Gasket, Fuel Tank Service Cover Replace each time Cover Plate is removed. ARRIVING SOON	-	1	Enquire
6	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	8	Enquire
7	AD439D667BA	Tube assy, fuel vapour purge	AD439D667BA Tube assy, fuel vapour purge	-	1	Enquire
8	AD439J280BA	Tube assy, fuel supply R	AD439J280BA Tube assy, fuel supply R	-	1	Enquire
9	AD439J280AA	Tube assy, fuel supply L	AD439J280AA Tube assy, fuel supply L	-	1	Enquire
10	DD433710175	KIT - HARNESS - FUEL TANK ARRIVING SOON	DD433710175 KIT - HARNESS - FUEL TANK ARRIVING SOON	-	1	Enquire
11	4G439294AA	Clip, Fuel Line to Engine	4G439294AA Clip, Fuel Line to Engine	-	2	Enquire
12	AD43P9B154BA	FUEL TANK FIXING BOLT ASSY	AD43P9B154BA FUEL TANK FIXING BOLT ASSY	-	7	Enquire
13	4G43482550AA	FOAM PAD - TANK UPPER	4G43482550AA FOAM PAD - TANK UPPER	-	4	Enquire
14	AD43M2D28BB	Foam pad	AD43M2D28BB Foam pad	-	1	Enquire
15	AD43M2D28AA	Insulating strip, rubber	AD43M2D28AA Insulating strip, rubber -use item 14	-	2	Enquire
16	AD43M2D28CB	Insulating strip, rubber	AD43M2D28CB Insulating strip, rubber	-	1	Enquire
17	AD439H307AB	PUMP AND RESERVOIR	AD439H307AB PUMP AND RESERVOIR	-	2	Enquire
18	AD439155BA	Fuel Filter LH	AD439155BA Fuel Filter LH -LHS	-	1	Enquire
19	AD439155AA	Fuel Filter RH	AD439155AA Fuel Filter RH -RHS	-	1	Enquire
20	8G439180AA	Bracket, filter assy	8G439180AA Bracket, filter assy	-	2	Enquire
21	4G43M1A292BA	Bolt, M5 x 12, self locking	4G43M1A292BA Bolt, M5 x 12, self locking	-	1	Enquire
22	AD439346DB	Bracket, fuel pump mounting RH	AD439346DB Bracket, fuel pump mounting RH	-	1	Enquire
23	AD439346CB	Bracket, fuel pump mounting LH	AD439346CB Bracket, fuel pump mounting LH	-	1	Enquire
24	AD439275AA	Sender Assy, fuel tank	AD439275AA Sender Assy, fuel tank	-	2	Enquire
25	701181	Clip, 16 x 6.5 x 1.5-6	701181 Clip, 16 x 6.5 x 1.5-6	-	2	Enquire
26	4G439E275AA	Sensor - Fuel Tank Sender	4G439E275AA Sensor - Fuel Tank Sender	-	2	Enquire
27	DD439K007AC	FUEL TANK ASSY	DD439K007AC FUEL TANK ASSY	-	2	Enquire
28	AD439A032AB	Shield, fuel tank	AD439A032AB Shield, fuel tank	-	1	Enquire
29	W710409S300	Rivet	W710409S300 Rivet	-	3	Enquire
30	AD431861AA	Clip	AD431861AA Clip	-	4	Enquire
31	AD431861BA	Clip	AD431861BA Clip	-	2	Enquire
