Aston Martin Rapide - Exhaust System (page 1)

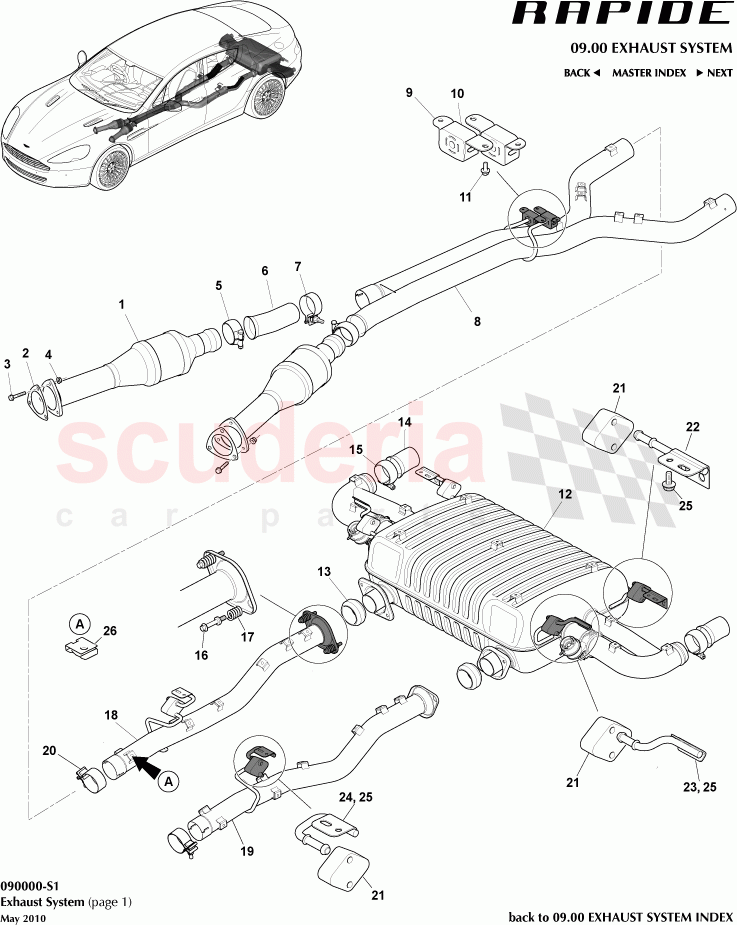

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G435E211AD	Catalyst & Pipe Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435E281AA	GASKET (Single)	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	702698	BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302738AAPK	Nut, M8 Hex Flange Head, Stainless (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G435221AA	EXHAUST PIPE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435220CA	STUB PIPE CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

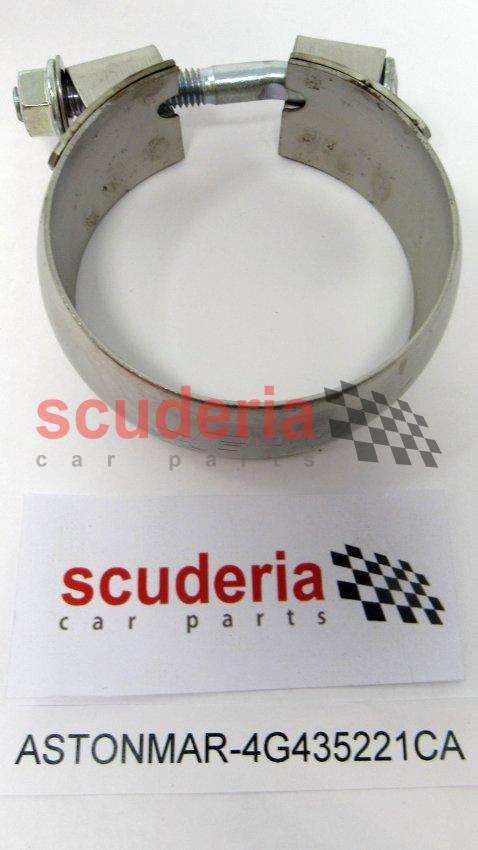

	4G435221CA	Clamp, Spherical, Exhaust Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD435220DA	INTER PIPE EXH CTR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433962FA	Bracket, Exhaust Isolator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510025	Rubber, Exhaust Mount	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435230AH	REAR MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317213BA	Sealing Ring Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435220EB	STUB PIPE REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G435221AA	EXHAUST PIPE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4370816AA	Bolt, M8 Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435F264AA	Spring, Exhaust Pipe Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435220BA	Pipe assy, exhaust rear RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435220AB	Pipe assy, exhaust rear LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435220AA	Clamp, exhaust pipe rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AH225A262AA	EXHAUST MOUNT RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435N201AB	MUFFLER MOUNTING BRACKET	Enquire	To Order
	AD435N201BA	MUFFLER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435N201CB	MUFFLER MOUNTING BRACKET REAR	Enquire	To Order
	AD435N201DB	INTERMEDIATE MNTG BRACKET LH AUTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD435N201GA	BRKT MFLR MTNG LH	Enquire	To Order
	FD435N201HA	BRKT EXH MTNG CTR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699736	Clip, Exhaust Heatshields	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G435E211AD	Catalyst & Pipe Assembly	8G435E211AD Catalyst & Pipe Assembly	-	2	Enquire
2	4G435E281AA	GASKET (Single) ARRIVING SOON	4G435E281AA GASKET (Single) ARRIVING SOON	-	1	Enquire
3	702698	BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	702698 BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	-	6	Enquire
4	4G4302738AAPK	Nut, M8 Hex Flange Head, Stainless (Pack of 10)	4G4302738AAPK Nut, M8 Hex Flange Head, Stainless (Pack of 10)	-	6	Enquire
5	9G435221AA	EXHAUST PIPE CLAMP	9G435221AA EXHAUST PIPE CLAMP	-	2	Enquire
6	AD435220CA	STUB PIPE CENTRE	AD435220CA STUB PIPE CENTRE	-	1	Enquire
7	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe	-	1	Enquire
8	FD435220DA	INTER PIPE EXH CTR	FD435220DA INTER PIPE EXH CTR	-	1	Enquire
9	4G433962FA	Bracket, Exhaust Isolator	4G433962FA Bracket, Exhaust Isolator	-	2	Enquire
10	4G433510025	Rubber, Exhaust Mount	4G433510025 Rubber, Exhaust Mount	-	2	Enquire
11	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	-	4	Enquire
12	AD435230AH	REAR MUFFLER	AD435230AH REAR MUFFLER	-	1	Enquire
13	4G4317213BA	Sealing Ring Exhaust	4G4317213BA Sealing Ring Exhaust	-	2	Enquire
14	AD435220EB	STUB PIPE REAR	AD435220EB STUB PIPE REAR	-	2	Enquire
15	9G435221AA	EXHAUST PIPE CLAMP	9G435221AA EXHAUST PIPE CLAMP	-	2	Enquire
16	4G4370816AA	Bolt, M8 Flange Head	4G4370816AA Bolt, M8 Flange Head	-	4	Enquire
17	4G435F264AA	Spring, Exhaust Pipe Flange	4G435F264AA Spring, Exhaust Pipe Flange	-	4	Enquire
18	AD435220BA	Pipe assy, exhaust rear RH	AD435220BA Pipe assy, exhaust rear RH	-	1	Enquire
19	AD435220AB	Pipe assy, exhaust rear LH	AD435220AB Pipe assy, exhaust rear LH	-	1	Enquire
20	4G435220AA	Clamp, exhaust pipe rear	4G435220AA Clamp, exhaust pipe rear	-	2	Enquire
21	AH225A262AA	EXHAUST MOUNT RUBBER	AH225A262AA EXHAUST MOUNT RUBBER	-	6	Enquire
22	AD435N201AB	MUFFLER MOUNTING BRACKET	AD435N201AB MUFFLER MOUNTING BRACKET	-	1	Enquire
22	AD435N201BA	MUFFLER MOUNTING BRACKET	AD435N201BA MUFFLER MOUNTING BRACKET	-	1	Enquire
23	AD435N201CB	MUFFLER MOUNTING BRACKET REAR	AD435N201CB MUFFLER MOUNTING BRACKET REAR	-	1	Enquire
23	AD435N201DB	INTERMEDIATE MNTG BRACKET LH AUTO	AD435N201DB INTERMEDIATE MNTG BRACKET LH AUTO	-	1	Enquire
24	FD435N201GA	BRKT MFLR MTNG LH	FD435N201GA BRKT MFLR MTNG LH	-	1	Enquire
24	FD435N201HA	BRKT EXH MTNG CTR RH	FD435N201HA BRKT EXH MTNG CTR RH	-	1	Enquire
25	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head 2 per bracket	-	12	Enquire
26	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields	-	33	Enquire
