Aston Martin Rapide - Exhaust System (page 2)

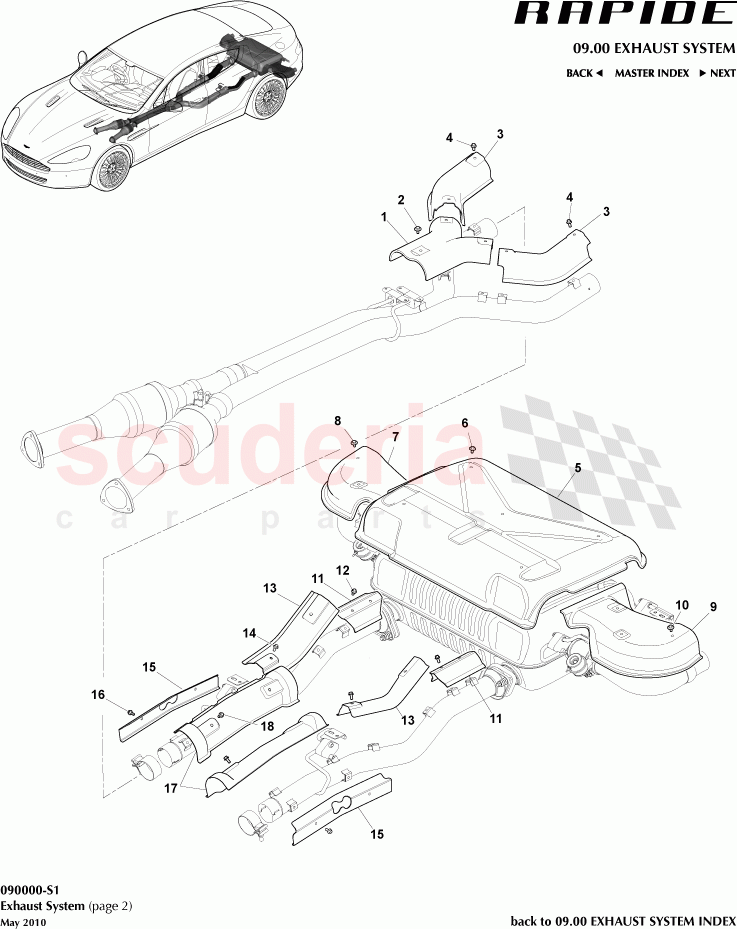

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD435G221EA	SHIELD ASSY EXHAUST SYSTEM REAR CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703752	Screw and Washer, M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435G221AA	Shield Assy, Exhaust System, Rear Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435290AA	Heatshield, rear silencer centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703752	Screw and Washer, M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435290CB	Heatshield, rear silencer RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703752	Screw and Washer, M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435290BB	Heatshield, rear silencer LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703752	Screw and Washer, M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435G221DB	SHIELD ASSY EXHAUST SYSTEM REAR REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435G221CA	SHIELD ASSY EXHAUST SYSTEM REAR REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435G221FC	SHIELD ASSY EXHAUST SYSTEM REAR SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD335G221BA	SHL ASY EXH SYS RR R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD435G221EA	SHIELD ASSY EXHAUST SYSTEM REAR CENTRE	AD435G221EA SHIELD ASSY EXHAUST SYSTEM REAR CENTRE	-	1	Enquire
2	703752	Screw and Washer, M6 x 16	703752 Screw and Washer, M6 x 16	-	3	Enquire
3	AD435G221AA	Shield Assy, Exhaust System, Rear Front	AD435G221AA Shield Assy, Exhaust System, Rear Front	-	2	Enquire
4	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD 2 per shield	-	4	Enquire
5	AD435290AA	Heatshield, rear silencer centre	AD435290AA Heatshield, rear silencer centre	-	1	Enquire
6	703752	Screw and Washer, M6 x 16	703752 Screw and Washer, M6 x 16	-	5	Enquire
7	AD435290CB	Heatshield, rear silencer RH	AD435290CB Heatshield, rear silencer RH	-	1	Enquire
8	703752	Screw and Washer, M6 x 16	703752 Screw and Washer, M6 x 16	-	3	Enquire
9	AD435290BB	Heatshield, rear silencer LH	AD435290BB Heatshield, rear silencer LH	-	1	Enquire
10	703752	Screw and Washer, M6 x 16	703752 Screw and Washer, M6 x 16	-	3	Enquire
11	AD435G221DB	SHIELD ASSY EXHAUST SYSTEM REAR REAR	AD435G221DB SHIELD ASSY EXHAUST SYSTEM REAR REAR	-	2	Enquire
12	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD 2 per shield	-	4	Enquire
13	AD435G221CA	SHIELD ASSY EXHAUST SYSTEM REAR REAR	AD435G221CA SHIELD ASSY EXHAUST SYSTEM REAR REAR	-	2	Enquire
14	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD 2 per shield	-	4	Enquire
15	AD435G221FC	SHIELD ASSY EXHAUST SYSTEM REAR SIDE	AD435G221FC SHIELD ASSY EXHAUST SYSTEM REAR SIDE	-	2	Enquire
16	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD 2 per shield	-	4	Enquire
17	FD335G221BA	SHL ASY EXH SYS RR R	FD335G221BA SHL ASY EXH SYS RR R	-	2	Enquire
18	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD 2 per shield	-	4	Enquire
