Aston Martin Rapide - Brake Actuator Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G432450DI Pedalbox Assembly AUTO, RHD Enquire To Order
4G432450BI Pedalbox Assembly AUTO, LHD Enquire To Order
Photo Part No Description Price (each) Stock
9G432D042BA Pad Kit, Auto Brake Pedal Enquire To Order
Photo Part No Description Price (each) Stock
703584 Screw, M8 x 40, Flange Head Enquire To Order
View All

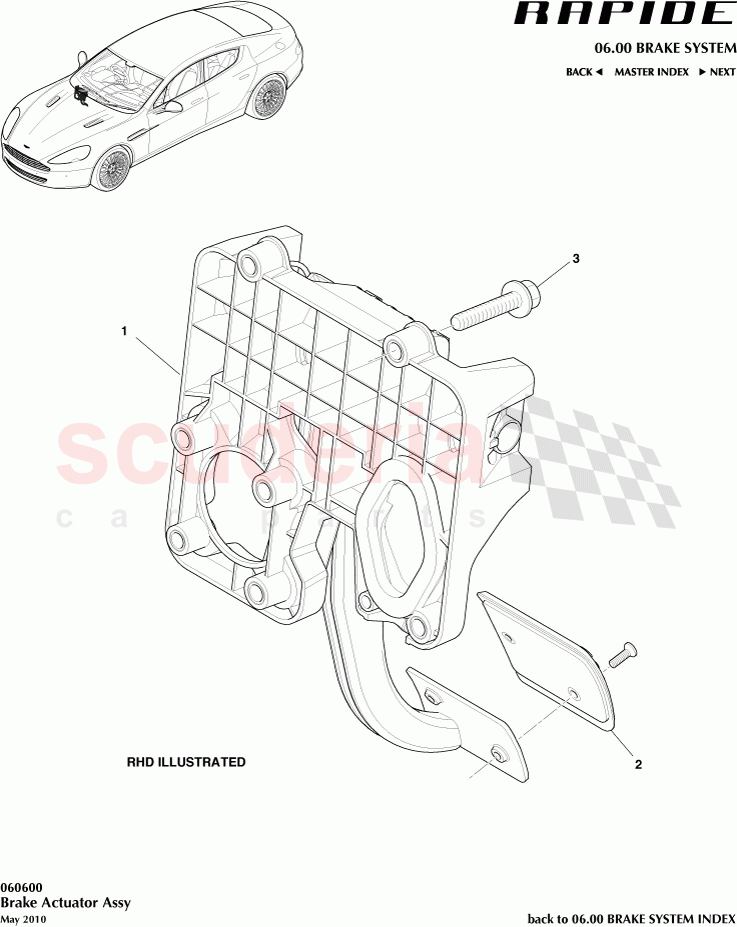

Brake Actuator Assembly of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G432450DI
Pedalbox Assembly AUTO, RHD 		- 1 Enquire
1 4G432450BI
Pedalbox Assembly AUTO, LHD 		- 1 Enquire
2 9G432D042BA
Pad Kit, Auto Brake Pedal 		- 1 Enquire
3 703584
Screw, M8 x 40, Flange Head 		- 3 Enquire
