Front Brake Disc Assembly of Aston Martin Aston Martin Rapide

View All

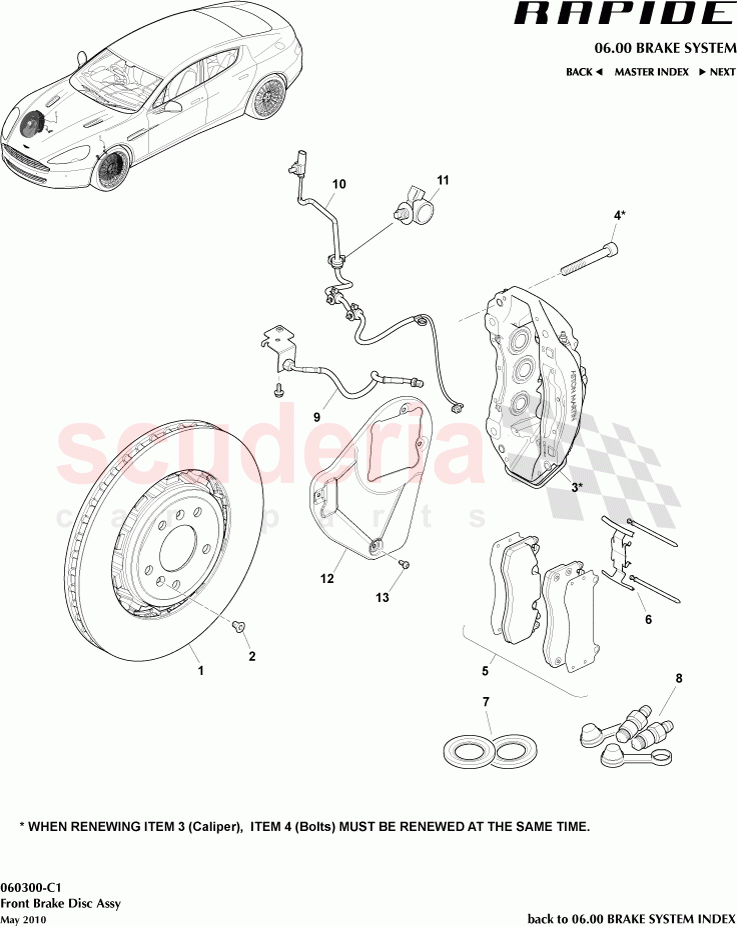

Aston Martin Rapide - Front Brake Disc Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD431125AB	BRAKE DISC-FRONT VENTED	Enquire	To Order
	AD431125AB	BRAKE DISC-FRONT VENTED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432C463EA	FRT LH SILVER CALIPER ASSY W/OUT PADS	Enquire	To Order
	AD432C462EA	FRT RH SILVER CALIPER ASSY W/OUT PADS	Enquire	To Order
	AD432C463CA	FRT LH BLK CALIPER ASSY W/OUT PADS	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8D332C564AA	Brake Bolt, M12 x 95, Caliper to Knuckle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432D007AB	Front Brake Pad Kit	Enquire	To Order
	AD432D007AB	Front Brake Pad Kit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432C588AA	FRT SPRING & PIN PAD KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4332180AA	FRT DUST BOOT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432C563AA	Kit, Bleed Screw	Enquire	To Order
	4G4333693AA	Cap, Bleed Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432078AD	Hose, Brake, Front LH	Enquire	To Order
	AD432078BD	Hose, Brake, Front, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332L507AA	Pad Wear Lead, Front	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432K005AB	SHIELD FRONT BRAKE DISC LH	Enquire	To Order
	4G432K004AA	Shield front brake disc, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313D026AA	Screw, retaining disc shield	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD431125AB	BRAKE DISC-FRONT VENTED	AD431125AB BRAKE DISC-FRONT VENTED Grooved Disc, From VIN F02201	-	2	Enquire
1	AD431125AB	BRAKE DISC-FRONT VENTED	AD431125AB BRAKE DISC-FRONT VENTED Smooth Disc	-	2	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk	-	4	Enquire
3	AD432C463EA	FRT LH SILVER CALIPER ASSY W/OUT PADS	AD432C463EA FRT LH SILVER CALIPER ASSY W/OUT PADS -Silver	-	1	Enquire
3	AD432C462EA	FRT RH SILVER CALIPER ASSY W/OUT PADS	AD432C462EA FRT RH SILVER CALIPER ASSY W/OUT PADS -Silver	-	1	Enquire
3	AD432C463CA	FRT LH BLK CALIPER ASSY W/OUT PADS	AD432C463CA FRT LH BLK CALIPER ASSY W/OUT PADS -Black	-	1	Enquire
3	AD432C462CA	FRT RH BLK CALIPER	AD432C462CA FRT RH BLK CALIPER -Black	-	1	Enquire
3	AD432C463AA	FRT LH GREY CALIPER ASSY W/OUT PADS	AD432C463AA FRT LH GREY CALIPER ASSY W/OUT PADS -Grey	-	1	Enquire
3	AD432C462AA	FRT RH GREY CALIPER ASSY W/OUT PADS	AD432C462AA FRT RH GREY CALIPER ASSY W/OUT PADS -Grey	-	1	Enquire
3	AD432C463DA	FRT LH RED CALIPER	AD432C463DA FRT LH RED CALIPER -Red	-	1	Enquire
3	AD432C462DA	FRT RH RED CALIPER ASSY W/OUT PADS	AD432C462DA FRT RH RED CALIPER ASSY W/OUT PADS -Red	-	1	Enquire
4	8D332C564AA	Brake Bolt, M12 x 95, Caliper to Knuckle	8D332C564AA Brake Bolt, M12 x 95, Caliper to Knuckle -N.B. Replace, Do not reuse	-	2	Enquire
5	AD432D007AB	Front Brake Pad Kit	AD432D007AB Front Brake Pad Kit -N.B. Item 4 required, From VIN F02201	-	1	Enquire
5	AD432D007AB	Front Brake Pad Kit	AD432D007AB Front Brake Pad Kit -N.B. Item 4 required	-	1	Enquire
6	AD432C588AA	FRT SPRING & PIN PAD KIT	AD432C588AA FRT SPRING & PIN PAD KIT -N.B. Item 4 required	-	1	Enquire
7	AD4332180AA	FRT DUST BOOT KIT	AD4332180AA FRT DUST BOOT KIT Per Caliper	-	1	Enquire
8	4G432C563AA	Kit, Bleed Screw	4G432C563AA Kit, Bleed Screw Per Caliper	-	1	Enquire
8	4G4333693AA	Cap, Bleed Screw	4G4333693AA Cap, Bleed Screw Per Caliper	-	1	Enquire
9	AD432078AD	Hose, Brake, Front LH	AD432078AD Hose, Brake, Front LH Per Caliper	-	1	Enquire
9	AD432078BD	Hose, Brake, Front, RH	AD432078BD Hose, Brake, Front, RH Per Caliper	-	1	Enquire
10	8D332L507AA	Pad Wear Lead, Front ARRIVING SOON	8D332L507AA Pad Wear Lead, Front ARRIVING SOON	-	2	Enquire
11	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	4G436510059PK Firtree Clip, for pad wear lead (Pack of 100)	-	6	Enquire
12	AD432K005AB	SHIELD FRONT BRAKE DISC LH	AD432K005AB SHIELD FRONT BRAKE DISC LH	-	1	Enquire
12	4G432K004AA	Shield front brake disc, RH	4G432K004AA Shield front brake disc, RH	-	1	Enquire
13	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield	-	4	Enquire
