Rear Brake Sub System of Aston Martin Aston Martin Rapide

View All

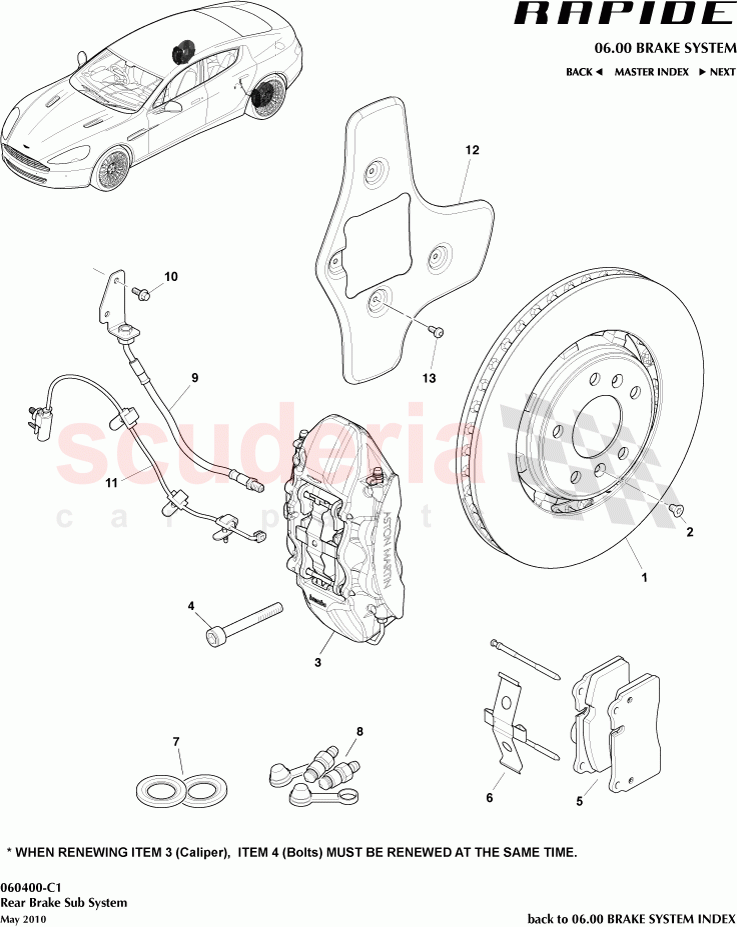

Aston Martin Rapide - Rear Brake Sub System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD432C026AC	BRAKE DISC REAR	Enquire	To Order
	AD432C026AC	BRAKE DISC REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432C465EA	RR LH SILVER CALIPER ASSY W/OUT PADS	Enquire	To Order
	AD432C464EA	RR RH SILVER CALIPER ASSY W/OUT PADS	Enquire	To Order
	AD432C465CA	RR LH BLK CALIPER ASSY W/OUT PADS	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8D332C564AA	Brake Bolt, M12 x 95, Caliper to Knuckle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432C562AB	BRAKE PAD KIT REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432C588BA	RR SPRING AND PIN PAD KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4332610AA	Kit, dust boot, rear caliper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4333693AA	Cap, Bleed Screw	Enquire	To Order
	4G432C563AA	Kit, Bleed Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432282AB	HOSE ASSY RR WHL BRK	Enquire	To Order
	AD432282BB	HOSE ASSY RR WHL BRK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332D009AB	Pad Wear Lead, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332C029AA	SHIELD - REAR BRAKE DISC LH	Enquire	To Order
	8D332C028AA	SHIELD - REAR BRAKE DISC RH	Enquire	To Order
	4G4313D026AA	Screw, retaining disc shield	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD432C026AC	BRAKE DISC REAR	AD432C026AC BRAKE DISC REAR Grooved Disc, From VIN F02201	-	2	Enquire
1	AD432C026AC	BRAKE DISC REAR	AD432C026AC BRAKE DISC REAR Smooth Disc	-	2	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk	-	4	Enquire
3	AD432C465EA	RR LH SILVER CALIPER ASSY W/OUT PADS	AD432C465EA RR LH SILVER CALIPER ASSY W/OUT PADS Silver	-	1	Enquire
3	AD432C464EA	RR RH SILVER CALIPER ASSY W/OUT PADS	AD432C464EA RR RH SILVER CALIPER ASSY W/OUT PADS Silver	-	1	Enquire
3	AD432C465CA	RR LH BLK CALIPER ASSY W/OUT PADS	AD432C465CA RR LH BLK CALIPER ASSY W/OUT PADS Black	-	1	Enquire
3	AD432C464CA	RR RH BLK CALIPER ASSY W/OUT PADS	AD432C464CA RR RH BLK CALIPER ASSY W/OUT PADS Black	-	1	Enquire
3	AD432C465AA	RR LH GREY CALIPER ASSY W/OUT PADS	AD432C465AA RR LH GREY CALIPER ASSY W/OUT PADS Grey	-	1	Enquire
3	AD432C464AA	RR RH GREY CALIPER ASSY W/OUT PADS	AD432C464AA RR RH GREY CALIPER ASSY W/OUT PADS Grey	-	1	Enquire
3	AD432C465DA	RR LH RED CALIPER ASSY W/OUT PADS	AD432C465DA RR LH RED CALIPER ASSY W/OUT PADS Red	-	1	Enquire
3	AD432C464DA	RR RH RED CALIPER ASSY W/OUT PADS	AD432C464DA RR RH RED CALIPER ASSY W/OUT PADS Red	-	1	Enquire
4	8D332C564AA	Brake Bolt, M12 x 95, Caliper to Knuckle	8D332C564AA Brake Bolt, M12 x 95, Caliper to Knuckle	-	4	Enquire
5	AD432C562AB	BRAKE PAD KIT REAR	AD432C562AB BRAKE PAD KIT REAR per Axle Set	-	1	Enquire
6	AD432C588BA	RR SPRING AND PIN PAD KIT	AD432C588BA RR SPRING AND PIN PAD KIT Per Caliper	-	1	Enquire
7	AD4332610AA	Kit, dust boot, rear caliper	AD4332610AA Kit, dust boot, rear caliper Per Caliper	-	2	Enquire
8	4G4333693AA	Cap, Bleed Screw	4G4333693AA Cap, Bleed Screw Per Caliper	-	1	Enquire
8	4G432C563AA	Kit, Bleed Screw	4G432C563AA Kit, Bleed Screw Per Caliper	-	2	Enquire
9	AD432282AB	HOSE ASSY RR WHL BRK	AD432282AB HOSE ASSY RR WHL BRK	-	2	Enquire
9	AD432282BB	HOSE ASSY RR WHL BRK	AD432282BB HOSE ASSY RR WHL BRK	-	2	Enquire
10	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
11	6G332D009AB	Pad Wear Lead, Rear	6G332D009AB Pad Wear Lead, Rear	-	2	Enquire
12	8D332C029AA	SHIELD - REAR BRAKE DISC LH	8D332C029AA SHIELD - REAR BRAKE DISC LH	-	1	Enquire
12	8D332C028AA	SHIELD - REAR BRAKE DISC RH	8D332C028AA SHIELD - REAR BRAKE DISC RH	-	1	Enquire
12	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield	-	8	Enquire
