Aston Martin One-77 - Fuel Tank

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AY939K007AB Fuel Tank Assy $10,675.71 To Order
Photo Part No Description Price (each) Stock
AY939A309BA Cover Plate, fuel tank Enquire To Order
Photo Part No Description Price (each) Stock
AY939A309AA Cover Plate, fuel tank Enquire To Order
Photo Part No Description Price (each) Stock
AY939073AA Seal $29.51 To Order
Photo Part No Description Price (each) Stock
12023096070AA Screw, M10 x 1.5 x 35 $2.18 To Order
Photo Part No Description Price (each) Stock
12023096114AA Washer M10, Flat ID10.5xOD20x2.0 $1.39 To Order
Photo Part No Description Price (each) Stock
12023096002 Screw, M6 x 40 Enquire To Order
Photo Part No Description Price (each) Stock
12023096100 Washer, shim L- ID6.4xOD18x1.2 Enquire To Order
Photo Part No Description Price (each) Stock
12023096084 Nut, M6 Enquire To Order
Photo Part No Description Price (each) Stock
AY93M2D28AA Pad, foam Enquire To Order
Photo Part No Description Price (each) Stock
AY93M2D28BA Pad, foam Enquire To Order
Photo Part No Description Price (each) Stock
AY93M2D28CA Pad, foam Enquire To Order
Photo Part No Description Price (each) Stock
AY93M2D28DA Pad, foam Enquire To Order
Photo Part No Description Price (each) Stock
AY93M2D28EA Pad, foam Enquire To Order
Photo Part No Description Price (each) Stock
6G339B260CC Fuel Pump and Reservoir RH $1,008.76 To Order
Photo Part No Description Price (each) Stock
8G439155AA Fuel Filter LH $283.37 IN STOCK
Photo Part No Description Price (each) Stock
6G339155AB Fuel Filter RH $454.81 IN STOCK
Photo Part No Description Price (each) Stock
8G439180AA Bracket, filter assy Enquire To Order
Photo Part No Description Price (each) Stock
4G43M1A292BA Bolt, M5 x 12, self locking Enquire To Order
Photo Part No Description Price (each) Stock
4G439E275AA Sensor - Fuel Tank Sender $116.94 IN STOCK
Photo Part No Description Price (each) Stock
AD439275AA Sender Assy, fuel tank $147.75 To Order
View All

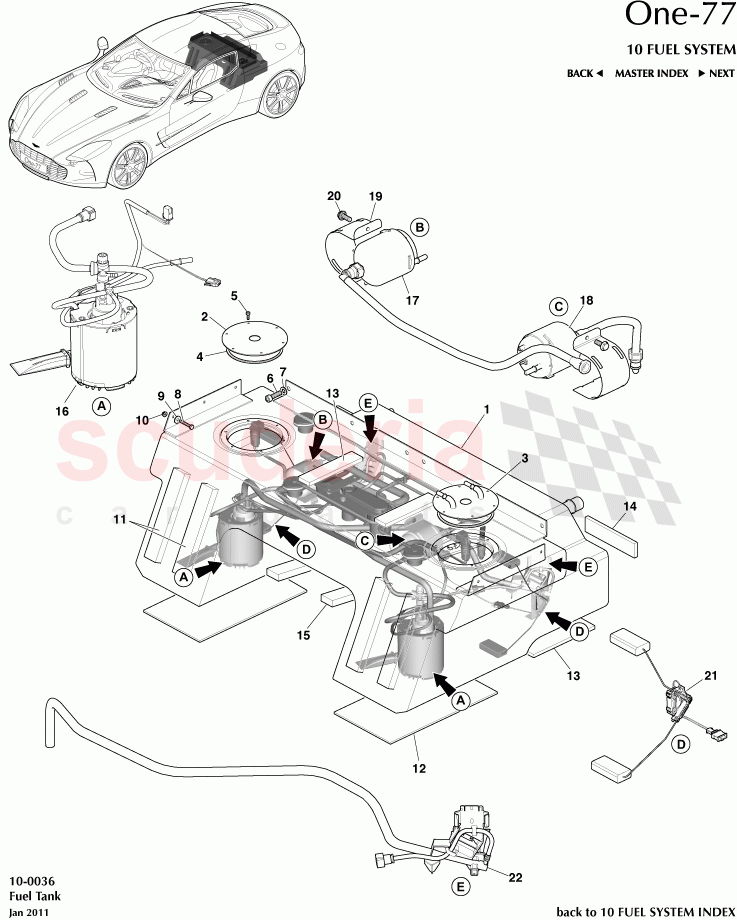

Fuel Tank of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AY939K007AB
Fuel Tank Assy 		$10,675.71 1
2 AY939A309BA
Cover Plate, fuel tank 		- 1 Enquire
3 AY939A309AA
Cover Plate, fuel tank 		- 1 Enquire
4 AY939073AA
Seal 		$29.51 2
6 12023096070AA
Screw, M10 x 1.5 x 35 		$2.18 8
7 12023096114AA
Washer M10, Flat ID10.5xOD20x2.0 		$1.39 8
8 12023096002
Screw, M6 x 40 		- 6 Enquire
9 12023096100
Washer, shim L- ID6.4xOD18x1.2 		- 6 Enquire
10 12023096084
Nut, M6 		- 6 Enquire
11 AY93M2D28AA
Pad, foam 		- 2 Enquire
12 AY93M2D28BA
Pad, foam 		- 4 Enquire
13 AY93M2D28CA
Pad, foam 		- 2 Enquire
14 AY93M2D28DA
Pad, foam 		- 4 Enquire
15 AY93M2D28EA
Pad, foam 		- 2 Enquire
16 6G339B260CC
Fuel Pump and Reservoir RH 		$1,008.76 2
17 8G439155AA
Fuel Filter LH
IN STOCK 		$283.37 1
18 6G339155AB
Fuel Filter RH
IN STOCK 		$454.81 1
19 8G439180AA
Bracket, filter assy 		- 2 Enquire
20 4G43M1A292BA
Bolt, M5 x 12, self locking 		- 2 Enquire
21 4G439E275AA
Sensor - Fuel Tank Sender
IN STOCK 		$116.94 2
22 AD439275AA
Sender Assy, fuel tank 		$147.75 2
