Exhaust System Assembly of Aston Martin Aston Martin One-77

View All

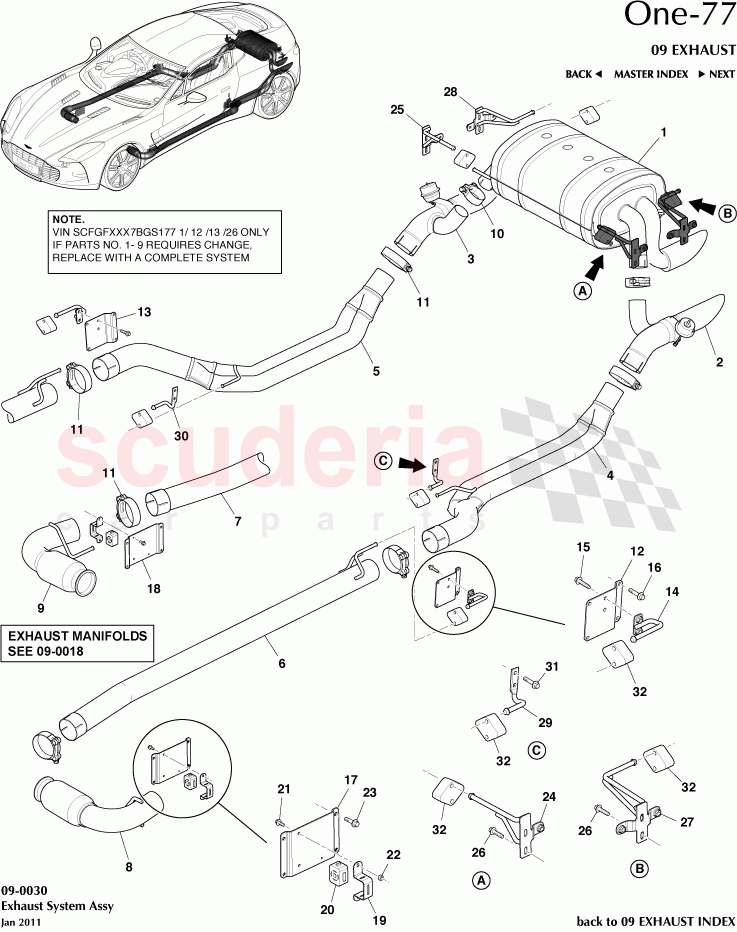

Aston Martin One-77 - Exhaust System Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12023038776AD	Muffler assy, Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038780AD	Bypass Tubes & Valves, Exhaust LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038778AD	Bypass Tubes & Valves, Exhaust RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038770AD	Pipe, Exhaust Main link LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038768AD	Pipe, Exhaust Main link RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038774AD	Pipe, Exhaust Main link Front LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038772AD	Pipe, Exhaust Main link Front RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038766AD	Pipe, Exhaust link, Flex LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038764AD	Pipe, Exhaust link, Flex RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038784AA	Clamp, Exhaust 56-59mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038782AB	EXH CLMP 75-81	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038538AB	Plate, Exhaust Hanger Rear LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038540AB	Plate, Exhaust Hanger Rear RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038230AF	Hanger, Exhaust Upper LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038398AD	Plate, Exhaust Hanger Frt LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038400AD	Plate, Exhaust Hanger Frt RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433962FA	Bracket, Exhaust Isolator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510025	Rubber, Exhaust Mount	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703730	Screw, M8 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038250AE	Hanger, Exhaust Rear Crash Can Mount Upper LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038252AE	Hanger, Exhaust Rear Crash Can Mount Upper RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038390AE	Hanger, Exhaust Muffler Upper LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038392AE	Hanger, Exhaust Muffler Upper RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038242AB	Hanger, Exhaust Rear Clevis Mount Upper LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038244AB	Hanger, Exhaust Rear Clevis Mount Upper RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703730	Screw, M8 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510026	Isolator, Exhaust Hanger	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	12023038776AD	Muffler assy, Exhaust	12023038776AD Muffler assy, Exhaust	-	1	Enquire
2	12023038780AD	Bypass Tubes & Valves, Exhaust LH	12023038780AD Bypass Tubes & Valves, Exhaust LH	-	1	Enquire
3	12023038778AD	Bypass Tubes & Valves, Exhaust RH	12023038778AD Bypass Tubes & Valves, Exhaust RH	-	1	Enquire
4	12023038770AD	Pipe, Exhaust Main link LH	12023038770AD Pipe, Exhaust Main link LH	-	1	Enquire
5	12023038768AD	Pipe, Exhaust Main link RH	12023038768AD Pipe, Exhaust Main link RH	-	1	Enquire
6	12023038774AD	Pipe, Exhaust Main link Front LH	12023038774AD Pipe, Exhaust Main link Front LH	-	1	Enquire
7	12023038772AD	Pipe, Exhaust Main link Front RH	12023038772AD Pipe, Exhaust Main link Front RH	-	1	Enquire
8	12023038766AD	Pipe, Exhaust link, Flex LH	12023038766AD Pipe, Exhaust link, Flex LH	-	1	Enquire
9	12023038764AD	Pipe, Exhaust link, Flex RH	12023038764AD Pipe, Exhaust link, Flex RH	-	1	Enquire
10	12023038784AA	Clamp, Exhaust 56-59mm	12023038784AA Clamp, Exhaust 56-59mm	-	2	Enquire
11	12023038782AB	EXH CLMP 75-81	12023038782AB EXH CLMP 75-81	-	6	Enquire
12	12023038538AB	Plate, Exhaust Hanger Rear LH	12023038538AB Plate, Exhaust Hanger Rear LH	-	1	Enquire
13	12023038540AB	Plate, Exhaust Hanger Rear RH	12023038540AB Plate, Exhaust Hanger Rear RH	-	1	Enquire
14	12023038230AF	Hanger, Exhaust Upper LH	12023038230AF Hanger, Exhaust Upper LH	-	1	Enquire
15	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	703188 SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	-	4	Enquire
16	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	8	Enquire
17	12023038398AD	Plate, Exhaust Hanger Frt LH	12023038398AD Plate, Exhaust Hanger Frt LH	-	1	Enquire
18	12023038400AD	Plate, Exhaust Hanger Frt RH	12023038400AD Plate, Exhaust Hanger Frt RH	-	1	Enquire
19	4G433962FA	Bracket, Exhaust Isolator	4G433962FA Bracket, Exhaust Isolator	-	2	Enquire
20	4G433510025	Rubber, Exhaust Mount	4G433510025 Rubber, Exhaust Mount	-	2	Enquire
21	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	4	Enquire
22	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	4	Enquire
23	703730	Screw, M8 x 16, Hex Flange Head	703730 Screw, M8 x 16, Hex Flange Head	-	8	Enquire
24	12023038250AE	Hanger, Exhaust Rear Crash Can Mount Upper LH	12023038250AE Hanger, Exhaust Rear Crash Can Mount Upper LH	-	1	Enquire
25	12023038252AE	Hanger, Exhaust Rear Crash Can Mount Upper RH	12023038252AE Hanger, Exhaust Rear Crash Can Mount Upper RH	-	1	Enquire
26	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	8	Enquire
27	12023038390AE	Hanger, Exhaust Muffler Upper LH	12023038390AE Hanger, Exhaust Muffler Upper LH	-	1	Enquire
28	12023038392AE	Hanger, Exhaust Muffler Upper RH	12023038392AE Hanger, Exhaust Muffler Upper RH	-	1	Enquire
29	12023038242AB	Hanger, Exhaust Rear Clevis Mount Upper LH	12023038242AB Hanger, Exhaust Rear Clevis Mount Upper LH	-	1	Enquire
30	12023038244AB	Hanger, Exhaust Rear Clevis Mount Upper RH	12023038244AB Hanger, Exhaust Rear Clevis Mount Upper RH	-	1	Enquire
31	703730	Screw, M8 x 16, Hex Flange Head	703730 Screw, M8 x 16, Hex Flange Head	-	4	Enquire
32	4G433510026	Isolator, Exhaust Hanger	4G433510026 Isolator, Exhaust Hanger	-	8	Enquire
