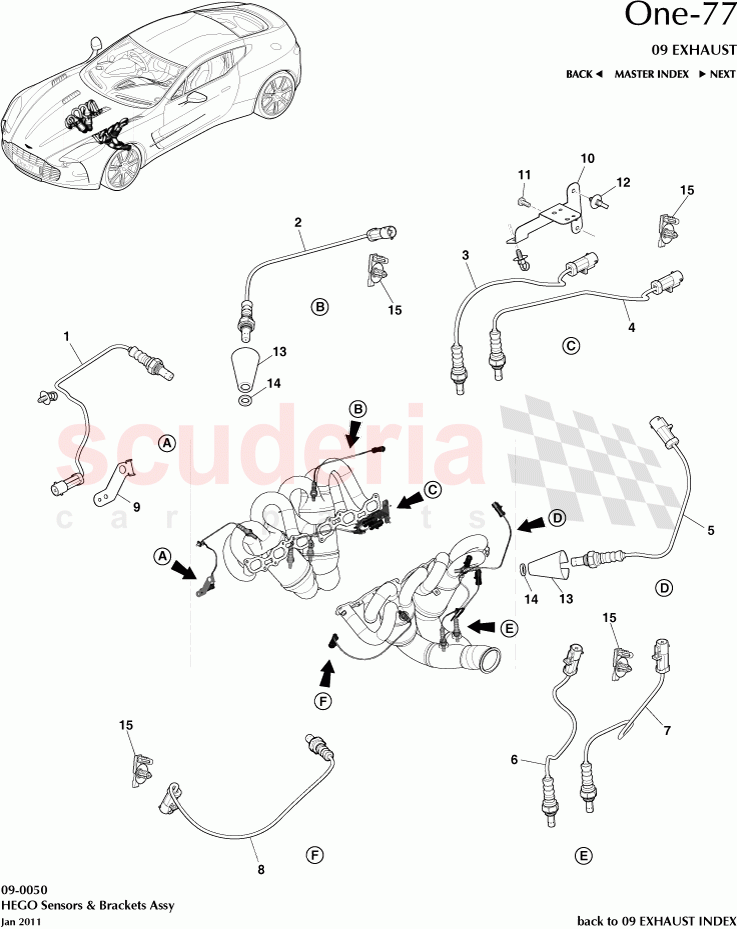

Aston Martin One-77 - HEGO Sensors & Brackets Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

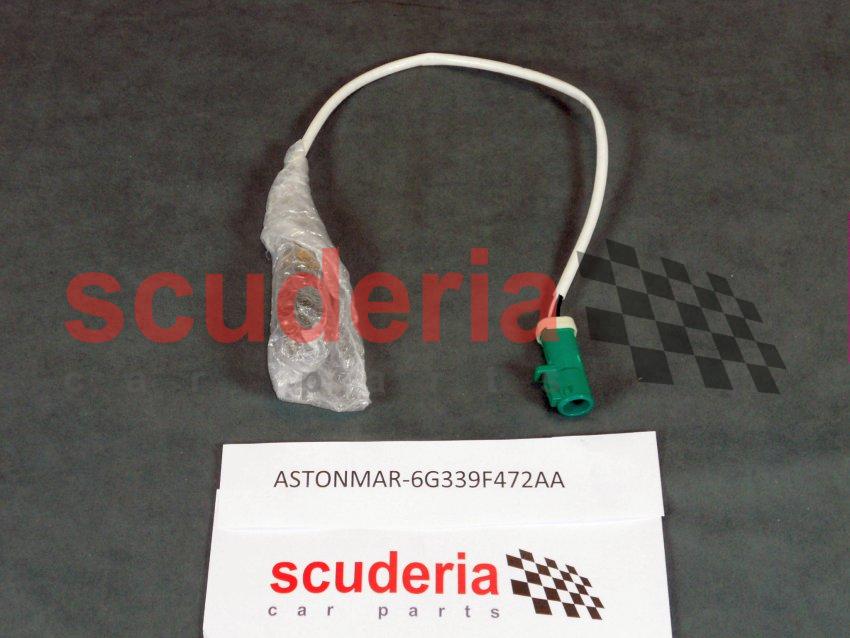

	6G339F472AA	Sensor RH Front Heated Exhaust Gas Oxygen	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

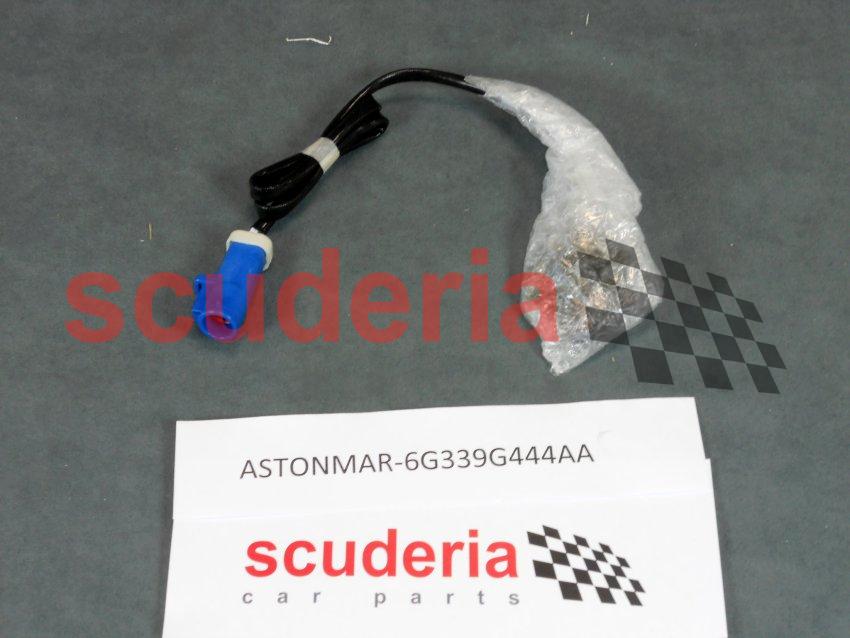

	6G339G444AA	Sensor, HEGO- RH Front Post-Cat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339G444AA	Sensor, HEGO- RH Front Post-Cat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339G444AA	Sensor, HEGO- RH Front Post-Cat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339F472AA	Sensor RH Front Heated Exhaust Gas Oxygen	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038556AC	Bracket, HEGO Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038554AB	Bracket, HEGO Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704769	Screw M6x16 Pan hd lobe drive	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

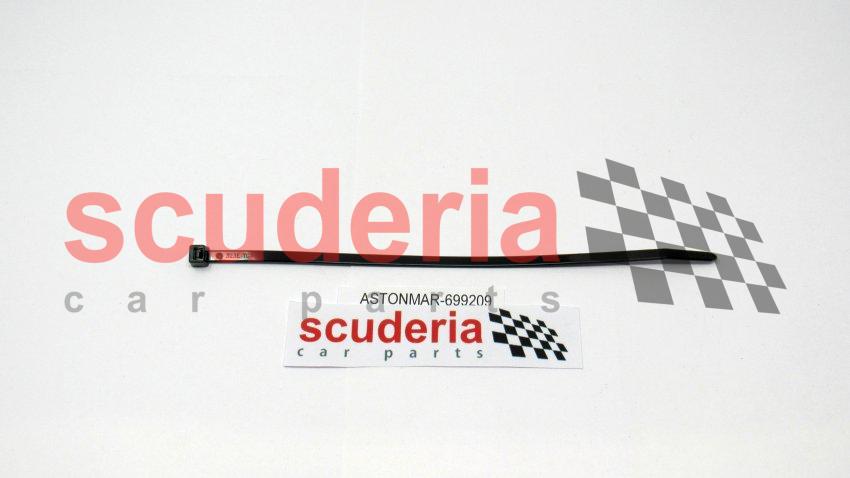

	699209	Tie-wrap, heat proof	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023037653AA	Heatsink, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023037768AA	Sealing Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED23110005AA	Harness Retention Clip	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	12023037652AA	Heatsink, LH	12023037652AA Heatsink, LH Fitted to item 5 ONLY	-	1	Enquire
1	6G339F472AA	Sensor RH Front Heated Exhaust Gas Oxygen	6G339F472AA Sensor RH Front Heated Exhaust Gas Oxygen	-	1	Enquire
2	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	1R123910174 Heated Exhaust Gas Oxygen Sensor Rear Please use 13+14 when fitting	-	1	Enquire
3	6G339G444AA	Sensor, HEGO- RH Front Post-Cat	6G339G444AA Sensor, HEGO- RH Front Post-Cat	-	1	Enquire
4	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter	1R123910175 Sensor HEGO RH Rear Post Catalytic Converter	-	1	Enquire
5	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	1R123910174 Heated Exhaust Gas Oxygen Sensor Rear Please use 13+14 when fitting	-	1	Enquire
6	6G339G444AA	Sensor, HEGO- RH Front Post-Cat	6G339G444AA Sensor, HEGO- RH Front Post-Cat	-	1	Enquire
7	6G339G444AA	Sensor, HEGO- RH Front Post-Cat	6G339G444AA Sensor, HEGO- RH Front Post-Cat	-	1	Enquire
8	6G339F472AA	Sensor RH Front Heated Exhaust Gas Oxygen	6G339F472AA Sensor RH Front Heated Exhaust Gas Oxygen	-	1	Enquire
9	12023038556AC	Bracket, HEGO Sensor	12023038556AC Bracket, HEGO Sensor	-	1	Enquire
10	12023038554AB	Bracket, HEGO Sensor	12023038554AB Bracket, HEGO Sensor	-	1	Enquire
11	704769	Screw M6x16 Pan hd lobe drive	704769 Screw M6x16 Pan hd lobe drive	-	2	Enquire
12	699209	Tie-wrap, heat proof	699209 Tie-wrap, heat proof	-	4	Enquire
13	12023037653AA	Heatsink, RH	12023037653AA Heatsink, RH Fitted to item 2 ONLY	-	1	Enquire
14	12023037768AA	Sealing Washer	12023037768AA Sealing Washer Used with item 13 ONLY	-	2	Enquire
15	ED23110005AA	Harness Retention Clip	ED23110005AA Harness Retention Clip	-	4	Enquire
