Rear Suspension Assembly of Aston Martin Aston Martin One-77

View All

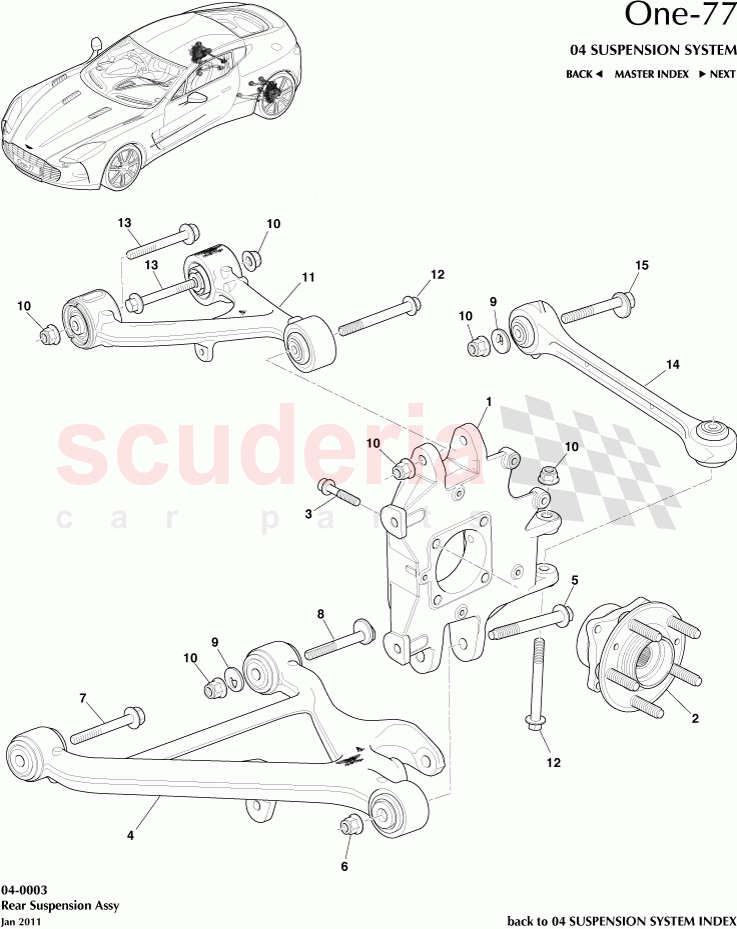

Aston Martin One-77 - Rear Suspension Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD435A971AB	KNUCKLE REAR WHL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432B663AA	Suspension Hub and Bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY935B531AA	Arm Assy, lower, rear suspension, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703133	BOLT M14 X 110 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704596	Nut, M14, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4308024AA	BOLT M12 X 90 HEXAGON HEAD FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435K978AA	ECCENTRIC BOLT M12 x 90	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433B237CA	Washer, M14 eccentric	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703565	NUT-M12 HEX FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY935K743AA	Arm Assy, upper, rear suspension, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33487029AA	Bolt, M12 x 110, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703181	BOLT M12 X 85 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG435B551AA	Arm Assy, Rear Toe Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435K978AA	ECCENTRIC BOLT M12 x 90	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD435A970AB	KNUCKLE REAR WHL RH	AD435A970AB KNUCKLE REAR WHL RH	-	1	Enquire
-	AY935B530AA	Arm Assy, lower, rear suspension, RH	AY935B530AA Arm Assy, lower, rear suspension, RH	-	1	Enquire
-	AY935K742AA	Arm Assy, upper, rear suspension, RH	AY935K742AA Arm Assy, upper, rear suspension, RH	-	1	Enquire
1	AD435A971AB	KNUCKLE REAR WHL LH	AD435A971AB KNUCKLE REAR WHL LH	-	1	Enquire
2	AD432B663AA	Suspension Hub and Bearing	AD432B663AA Suspension Hub and Bearing	-	2	Enquire
3	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5)	-	8	Enquire
4	AY935B531AA	Arm Assy, lower, rear suspension, LH	AY935B531AA Arm Assy, lower, rear suspension, LH	-	1	Enquire
5	703133	BOLT M14 X 110 HEX FLANGE CHROME FREE	703133 BOLT M14 X 110 HEX FLANGE CHROME FREE	-	2	Enquire
6	704596	Nut, M14, Hex Flange Head	704596 Nut, M14, Hex Flange Head	-	2	Enquire
7	CG4308024AA	BOLT M12 X 90 HEXAGON HEAD FLANGED	CG4308024AA BOLT M12 X 90 HEXAGON HEAD FLANGED	-	2	Enquire
8	AD435K978AA	ECCENTRIC BOLT M12 x 90	AD435K978AA ECCENTRIC BOLT M12 x 90	-	2	Enquire
9	4G433B237CA	Washer, M14 eccentric	4G433B237CA Washer, M14 eccentric	-	2	Enquire
10	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE	-	12	Enquire
11	AY935K743AA	Arm Assy, upper, rear suspension, LH	AY935K743AA Arm Assy, upper, rear suspension, LH	-	1	Enquire
12	AD33487029AA	Bolt, M12 x 110, Hex Flange Head	AD33487029AA Bolt, M12 x 110, Hex Flange Head	-	2	Enquire
13	703181	BOLT M12 X 85 HEX FLANGE CHROME FREE	703181 BOLT M12 X 85 HEX FLANGE CHROME FREE	-	4	Enquire
14	BG435B551AA	Arm Assy, Rear Toe Control	BG435B551AA Arm Assy, Rear Toe Control	-	2	Enquire
15	AD435K978AA	ECCENTRIC BOLT M12 x 90	AD435K978AA ECCENTRIC BOLT M12 x 90	-	2	Enquire
