Wheel Assembly of Aston Martin Aston Martin One-77

View All

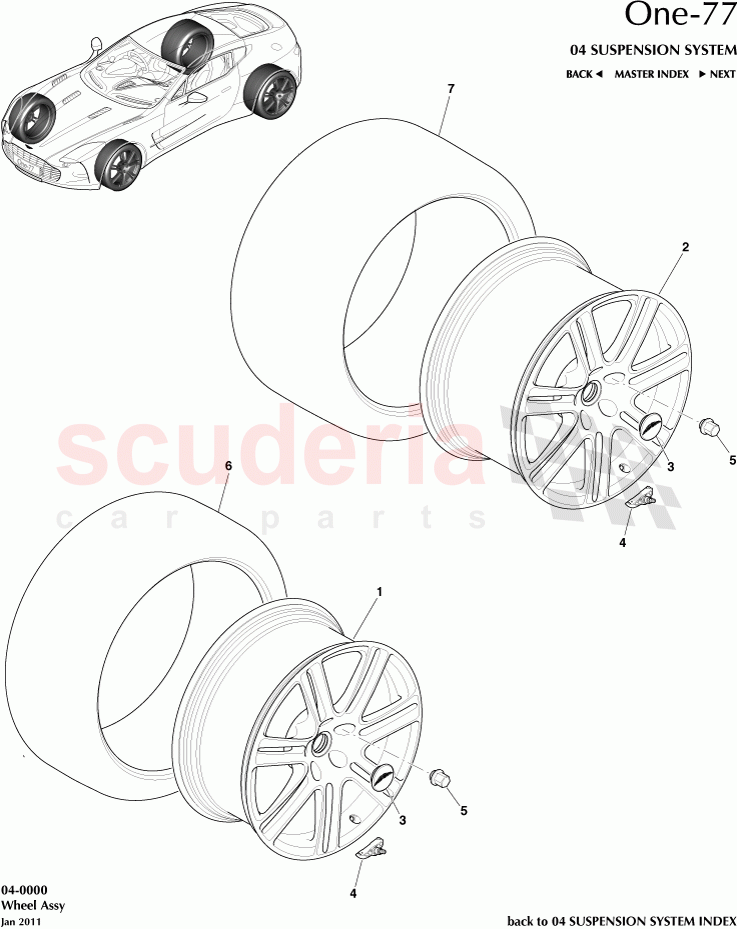

Aston Martin One-77 - Wheel Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12023030200AA	Wheel, Front 7 spoke Polished	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023030201AA	Wheel, Rear 7 spoke Polished	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY931A096AA	Badge, wheel centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY93360671AA	Transmitter and Valve Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431K024BA	Nut, wheel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023111020AB	Tyre, Front, 255-35-20-9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023121038AA	Tyre, Rear, 335-30-20-12.5	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	12023030200BA	Wheel, Front 7 spoke DBS Silver	12023030200BA Wheel, Front 7 spoke DBS Silver 20 x 9J ET 43.8	-	2	Enquire
-	12023030200CA	Wheel, Front 7 spoke DBS Silver Diamond turned	12023030200CA Wheel, Front 7 spoke DBS Silver Diamond turned 20 x 9J ET 43.8	-	2	Enquire
-	12023030200DA	Wheel, Front 7 spoke Satin silver	12023030200DA Wheel, Front 7 spoke Satin silver 20 x 9J ET 43.8	-	2	Enquire
-	12023030200EA	Wheel, Front 7 spoke Matt Grey	12023030200EA Wheel, Front 7 spoke Matt Grey 20 x 9J ET 43.8	-	2	Enquire
-	12023030200FA	Wheel, Front 7 spoke Matt Grey Diamond turned	12023030200FA Wheel, Front 7 spoke Matt Grey Diamond turned 20 x 9J ET 43.8	-	2	Enquire
-	12023030200GA	Wheel, Front 7 spoke Gold	12023030200GA Wheel, Front 7 spoke Gold 20 x 9J ET 43.8	-	2	Enquire
-	12023030200HA	Wheel, Front 7 spoke Gold Diamond turned	12023030200HA Wheel, Front 7 spoke Gold Diamond turned 20 x 9J ET 43.8	-	2	Enquire
-	12023030202AA	Wheel, Front 10 spoke Polished LH	12023030202AA Wheel, Front 10 spoke Polished LH 20 x 9J ET 43.8	-	1	Enquire
-	12023030202BA	Wheel, Front 10 spoke Polished RH	12023030202BA Wheel, Front 10 spoke Polished RH 20 x 9J ET 43.8	-	1	Enquire
-	12023030202EA	Wheel, Front 10 spoke DBS Silver Diamond turned LH	12023030202EA Wheel, Front 10 spoke DBS Silver Diamond turned LH 20 x 9J ET 43.8	-	1	Enquire
-	12023030202FA	Wheel, Front 10 spoke DBS Silver Diamond turned RH	12023030202FA Wheel, Front 10 spoke DBS Silver Diamond turned RH 20 x 9J ET 43.8	-	1	Enquire
-	12023030202LA	Wheel, Front 10 spoke Matt Grey Diamond turned LH	12023030202LA Wheel, Front 10 spoke Matt Grey Diamond turned LH 20 x 9J ET 43.8	-	1	Enquire
-	12023030202MA	Wheel, Front 10 spoke Matt Grey Diamond turned RH	12023030202MA Wheel, Front 10 spoke Matt Grey Diamond turned RH 20 x 9J ET 43.8	-	1	Enquire
-	12023030202RA	Wheel, Front 10 spoke Gold Diamond turned LH	12023030202RA Wheel, Front 10 spoke Gold Diamond turned LH 20 x 9J ET 43.8	-	1	Enquire
-	12023030202SA	Wheel, Front 10 spoke Gold Diamond turned RH	12023030202SA Wheel, Front 10 spoke Gold Diamond turned RH 20 x 9J ET 43.8	-	1	Enquire
-	12023030201BA	Wheel, Rear 7 spoke DBS Silver	12023030201BA Wheel, Rear 7 spoke DBS Silver 20 x 12.5J ET 66	-	2	Enquire
-	12023030201CA	Wheel, Rear 7 spoke DBS Silver Diamond turned	12023030201CA Wheel, Rear 7 spoke DBS Silver Diamond turned 20 x 12.5J ET 66	-	2	Enquire
-	12023030201DA	Wheel, Rear 7 spoke Satin silver	12023030201DA Wheel, Rear 7 spoke Satin silver 20 x 12.5J ET 66	-	2	Enquire
-	12023030201EA	Wheel, Rear 7 spoke Matt Grey	12023030201EA Wheel, Rear 7 spoke Matt Grey 20 x 12.5J ET 66	-	2	Enquire
-	12023030201FA	Wheel, Rear 7 spoke Matt Grey Diamond turned	12023030201FA Wheel, Rear 7 spoke Matt Grey Diamond turned 20 x 12.5J ET 66	-	2	Enquire
-	12023030201GA	Wheel, Rear 7 spoke Gold	12023030201GA Wheel, Rear 7 spoke Gold 20 x 12.5J ET 66	-	2	Enquire
-	12023030201HA	Wheel, Rear 7 spoke Gold Diamond turned	12023030201HA Wheel, Rear 7 spoke Gold Diamond turned 20 x 12.5J ET 66	-	2	Enquire
-	12023030203AA	Wheel, Rear 10 spoke Polished LH	12023030203AA Wheel, Rear 10 spoke Polished LH 20 x 12.5J ET 66	-	1	Enquire
-	12023030203BA	Wheel, Rear 10 spoke Polished RH	12023030203BA Wheel, Rear 10 spoke Polished RH 20 x 12.5J ET 66	-	1	Enquire
-	12023030203EA	Wheel, Rear 10 spoke DBS Silver Diamond turned LH	12023030203EA Wheel, Rear 10 spoke DBS Silver Diamond turned LH 20 x 12.5J ET 66	-	1	Enquire
-	12023030203FA	Wheel, Rear 10 spoke DBS Silver Diamond turned RH	12023030203FA Wheel, Rear 10 spoke DBS Silver Diamond turned RH 20 x 12.5J ET 66	-	1	Enquire
-	12023030203LA	Wheel, Rear 10 spoke Matt Grey Diamond turned LH	12023030203LA Wheel, Rear 10 spoke Matt Grey Diamond turned LH 20 x 12.5J ET 66	-	1	Enquire
-	12023030203MA	Wheel, Rear 10 spoke Matt Grey Diamond turned RH	12023030203MA Wheel, Rear 10 spoke Matt Grey Diamond turned RH 20 x 12.5J ET 66	-	1	Enquire
-	12023030203RA	Wheel, Rear 10 spoke Gold Diamond turned LH	12023030203RA Wheel, Rear 10 spoke Gold Diamond turned LH 20 x 12.5J ET 66	-	1	Enquire
-	12023030203SA	Wheel, Rear 10 spoke Gold Diamond turned RH	12023030203SA Wheel, Rear 10 spoke Gold Diamond turned RH 20 x 12.5J ET 66	-	1	Enquire
-	AY931A096BA	Badge, wheel centre	AY931A096BA Badge, wheel centre Silver	-	4	Enquire
-	AY931A096CA	Badge, wheel centre	AY931A096CA Badge, wheel centre Satin silver	-	4	Enquire
-	AY931A096DA	Badge, wheel centre	AY931A096DA Badge, wheel centre Matt grey	-	4	Enquire
-	AY931A096EA	Badge, wheel centre	AY931A096EA Badge, wheel centre Gold	-	4	Enquire
-	AY931A096FA	Badge, wheel centre	AY931A096FA Badge, wheel centre Sand blast	-	4	Enquire
-	AY93360671BA	Transmitter and Valve Assy	AY93360671BA Transmitter and Valve Assy 315 MHZ	-	4	Enquire
-	4G431040AA	Weight, counter balance	4G431040AA Weight, counter balance	-	A/R	Enquire
1	12023030200AA	Wheel, Front 7 spoke Polished	12023030200AA Wheel, Front 7 spoke Polished 20 x 9J ET 43.8	-	2	Enquire
2	12023030201AA	Wheel, Rear 7 spoke Polished	12023030201AA Wheel, Rear 7 spoke Polished 20 x 12.5J ET 66	-	2	Enquire
3	AY931A096AA	Badge, wheel centre	AY931A096AA Badge, wheel centre Polished	-	4	Enquire
4	AY93360671AA	Transmitter and Valve Assy	AY93360671AA Transmitter and Valve Assy 433 MHZ	-	4	Enquire
5	4G431K024BA	Nut, wheel	4G431K024BA Nut, wheel	-	20	Enquire
6	12023111020AB	Tyre, Front, 255-35-20-9.5	12023111020AB Tyre, Front, 255-35-20-9.5 Pirelli Tyre Nominal	-	2	Enquire
7	12023121038AA	Tyre, Rear, 335-30-20-12.5	12023121038AA Tyre, Rear, 335-30-20-12.5 Pirelli Tyre Nominal	-	2	Enquire
