Front Suspension Assembly of Aston Martin Aston Martin One-77

View All

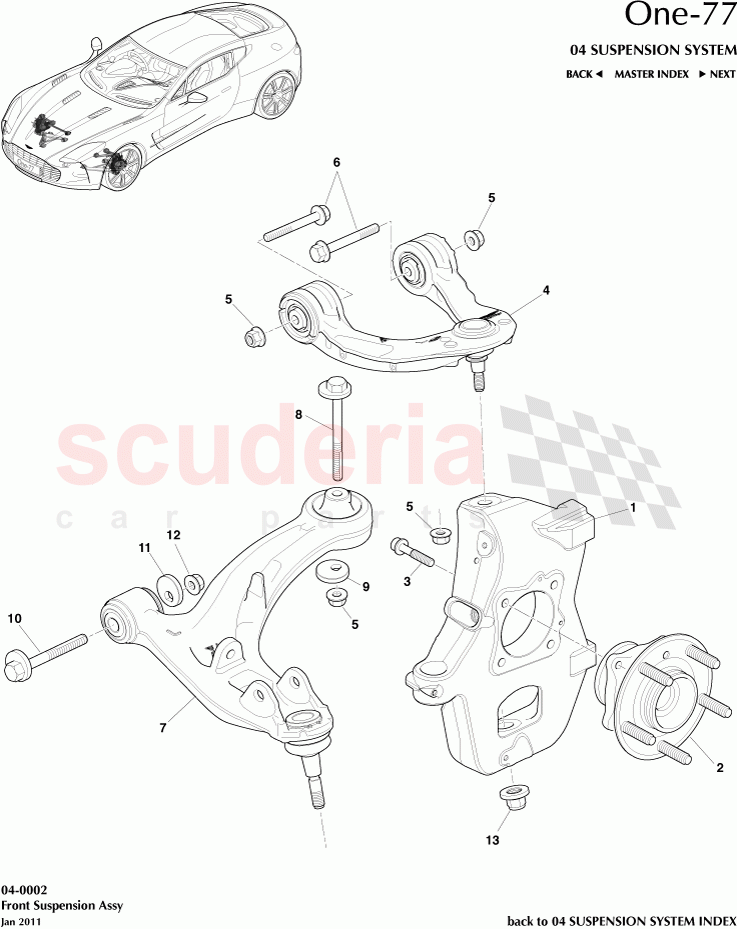

Aston Martin One-77 - Front Suspension Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY933K185AB	Knuckle Assy, Front, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432B663AA	Suspension Hub and Bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY933091AA	Arm Assy, upper, front suspension LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703565	NUT-M12 HEX FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4308024AA	BOLT M12 X 90 HEXAGON HEAD FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD433A053AA	Arm & Bush Front Suspension Lower LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433B236BB	Bolt M12 Eccentric Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433B237BB	Washer, M12, Eccentric	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433B236CB	Bolt, M14, eccentric	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433B237CA	Washer, M14 eccentric	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704596	Nut, M14, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD430907AA	NUT AND WASHER M14 HEX FL PT PLAS 10	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AY933K186AB	Knuckle Assy, Front, RH	AY933K186AB Knuckle Assy, Front, RH	-	1	Enquire
-	AY933084AA	Arm Assy, upper, front suspension RH	AY933084AA Arm Assy, upper, front suspension RH	-	1	Enquire
-	AD433A052AA	Arm & Bush, Front Suspension Lower, RH	AD433A052AA Arm & Bush, Front Suspension Lower, RH	-	1	Enquire
1	AY933K185AB	Knuckle Assy, Front, LH	AY933K185AB Knuckle Assy, Front, LH	-	1	Enquire
2	AD432B663AA	Suspension Hub and Bearing	AD432B663AA Suspension Hub and Bearing	-	2	Enquire
3	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5) Bearing to Knuckle	-	8	Enquire
4	AY933091AA	Arm Assy, upper, front suspension LH	AY933091AA Arm Assy, upper, front suspension LH	-	1	Enquire
5	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE	-	8	Enquire
6	CG4308024AA	BOLT M12 X 90 HEXAGON HEAD FLANGED	CG4308024AA BOLT M12 X 90 HEXAGON HEAD FLANGED	-	4	Enquire
7	AD433A053AA	Arm & Bush Front Suspension Lower LH	AD433A053AA Arm & Bush Front Suspension Lower LH	-	1	Enquire
8	4G433B236BB	Bolt M12 Eccentric Front	4G433B236BB Bolt M12 Eccentric Front	-	2	Enquire
9	4G433B237BB	Washer, M12, Eccentric	4G433B237BB Washer, M12, Eccentric	-	2	Enquire
10	4G433B236CB	Bolt, M14, eccentric	4G433B236CB Bolt, M14, eccentric	-	2	Enquire
11	4G433B237CA	Washer, M14 eccentric	4G433B237CA Washer, M14 eccentric	-	2	Enquire
12	704596	Nut, M14, Hex Flange Head	704596 Nut, M14, Hex Flange Head	-	2	Enquire
13	AD430907AA	NUT AND WASHER M14 HEX FL PT PLAS 10	AD430907AA NUT AND WASHER M14 HEX FL PT PLAS 10	-	2	Enquire
