Name: Fuel Controls Assembly
Rating: 4.2 (1 reviews)

Fuel Controls Assembly of Aston Martin Aston Martin One-77

View All

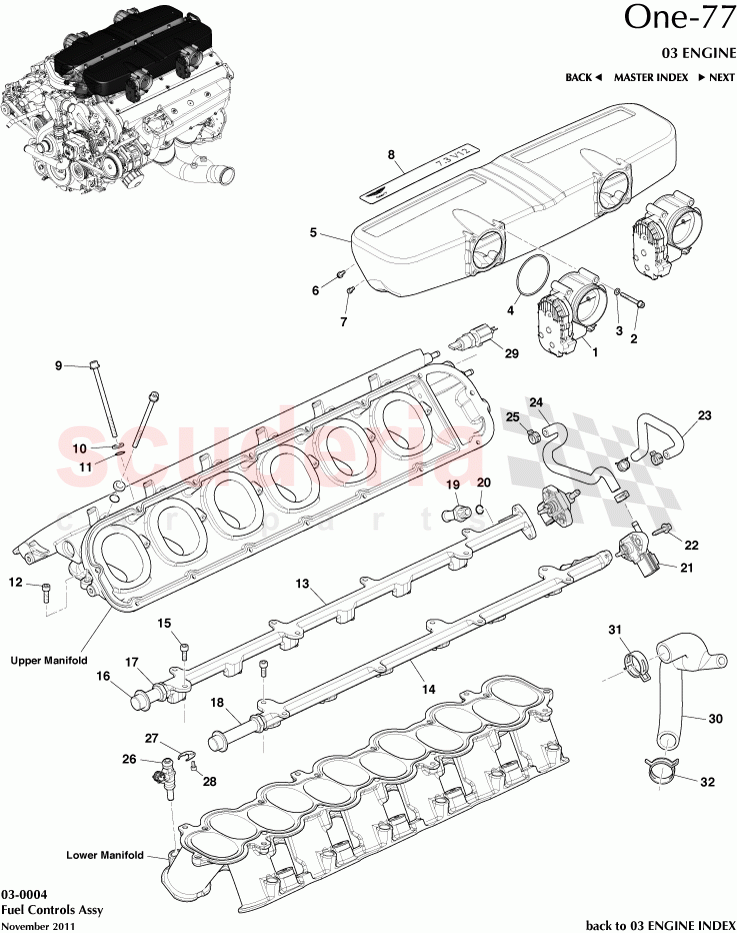

Aston Martin One-77 - Fuel Controls Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R120810079	Throttle Body 68mm	$705.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AY93857799KA	SCREW M6- 1 X 50 SCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	705380	Washer, Throttle Body	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120810317PK	O Ring (Pack of 10)	$38.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AY930810066	Covers, Plenum	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY939795FA	BOLT M5-0.8 x 12	$22.75	To Order

Photo	Part No	Description	Price (each)	Stock
	705383	Screws, Plenum Cover	$16.10	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930810067	Badge, Engine 7.3 V12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY93857799PA	SCREW M6 x 100 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY931919BA	WASHER-M6 x12.5	$4.56	To Order

Photo	Part No	Description	Price (each)	Stock
	AY938527TA	ORING 6 IDx1 SEC VIT	$0.82	To Order

Photo	Part No	Description	Price (each)	Stock
	AY93857799EA	SCREW M6-1 X 20 SCH	$24.59	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930810068	Fuel Rail, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930810069	Fuel Rail, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930710039	Screws, M6x16, Cam Covers	$46.05	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930810070	Damper, Fuel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930810072	Adaptor, Fuel RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930810071	Adaptor, Fuel LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930810073	Connector, Fuel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY938527FA	ORING 12.1 x 1.6 SEC	$11.50	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930810074	Sensor, Pressure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930810076	Hose, Vacuum, RH Pressure Sensor	$321.69	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930810075	Hose, Vacuum, LH Pressure Sensor	$321.69	To Order

Photo	Part No	Description	Price (each)	Stock
	705390	Clips, Vacuum Hoses	$10.34	To Order

Photo	Part No	Description	Price (each)	Stock
	AY939F593AA	FUEL INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930810078	Plate, Fuel Injector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY93806705KA	SCREW M4-0.7 x 8	$96.33	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930810079	Sensor, Air Temperature	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	705381	O Ring Cord, Plenum Cover	705381 O Ring Cord, Plenum Cover	$352.83	2
-	705358	Sealant Loctite 5970, Plenum Cover	705358 Sealant Loctite 5970, Plenum Cover	$229.64	A/R
-	AY938527DA	O RING 14mm x 2 SEC	AY938527DA O RING 14mm x 2 SEC	$9.47	2
1	1R120810079	Throttle Body 68mm IN STOCK	1R120810079 Throttle Body 68mm IN STOCK	$705.88	4
2	AY93857799KA	SCREW M6- 1 X 50 SCH	AY93857799KA SCREW M6- 1 X 50 SCH	-	16	Enquire
3	705380	Washer, Throttle Body	705380 Washer, Throttle Body	-	16	Enquire
4	1R120810317PK	O Ring (Pack of 10) IN STOCK	1R120810317PK O Ring (Pack of 10) IN STOCK	$38.33	4
5	AY930810066	Covers, Plenum	AY930810066 Covers, Plenum	-	2	Enquire
6	AY939795FA	BOLT M5-0.8 x 12	AY939795FA BOLT M5-0.8 x 12	$22.75	12
7	705383	Screws, Plenum Cover	705383 Screws, Plenum Cover	$16.10	18
8	AY930810067	Badge, Engine 7.3 V12	AY930810067 Badge, Engine 7.3 V12	-	2	Enquire
9	AY93857799PA	SCREW M6 x 100 HEX	AY93857799PA SCREW M6 x 100 HEX	-	11	Enquire
10	AY931919BA	WASHER-M6 x12.5	AY931919BA WASHER-M6 x12.5	$4.56	11
11	AY938527TA	ORING 6 IDx1 SEC VIT	AY938527TA ORING 6 IDx1 SEC VIT	$0.82	11
12	AY93857799EA	SCREW M6-1 X 20 SCH	AY93857799EA SCREW M6-1 X 20 SCH	$24.59	2
13	AY930810068	Fuel Rail, RH	AY930810068 Fuel Rail, RH	-	1	Enquire
14	AY930810069	Fuel Rail, LH	AY930810069 Fuel Rail, LH	-	1	Enquire
15	AY930710039	Screws, M6x16, Cam Covers	AY930710039 Screws, M6x16, Cam Covers	$46.05	6
16	AY930810070	Damper, Fuel	AY930810070 Damper, Fuel	-	2	Enquire
17	AY930810072	Adaptor, Fuel RH	AY930810072 Adaptor, Fuel RH	-	1	Enquire
18	AY930810071	Adaptor, Fuel LH	AY930810071 Adaptor, Fuel LH	-	1	Enquire
19	AY930810073	Connector, Fuel	AY930810073 Connector, Fuel	-	2	Enquire
20	AY938527FA	ORING 12.1 x 1.6 SEC	AY938527FA ORING 12.1 x 1.6 SEC	$11.50	2
21	AY930810074	Sensor, Pressure	AY930810074 Sensor, Pressure	-	2	Enquire
23	AY930810076	Hose, Vacuum, RH Pressure Sensor	AY930810076 Hose, Vacuum, RH Pressure Sensor	$321.69	1
24	AY930810075	Hose, Vacuum, LH Pressure Sensor	AY930810075 Hose, Vacuum, LH Pressure Sensor	$321.69	1
25	705390	Clips, Vacuum Hoses	705390 Clips, Vacuum Hoses	$10.34	4
26	AY939F593AA	FUEL INJECTOR	AY939F593AA FUEL INJECTOR	-	12	Enquire
27	AY930810078	Plate, Fuel Injector	AY930810078 Plate, Fuel Injector	-	12	Enquire
28	AY93806705KA	SCREW M4-0.7 x 8	AY93806705KA SCREW M4-0.7 x 8	$96.33	12
29	AY930810079	Sensor, Air Temperature	AY930810079 Sensor, Air Temperature	-	1	Enquire
