Engine Lubrication Assembly

Aston Martin One-77

Find Your Part

Aston Martin One-77 - Engine Lubrication Assembly

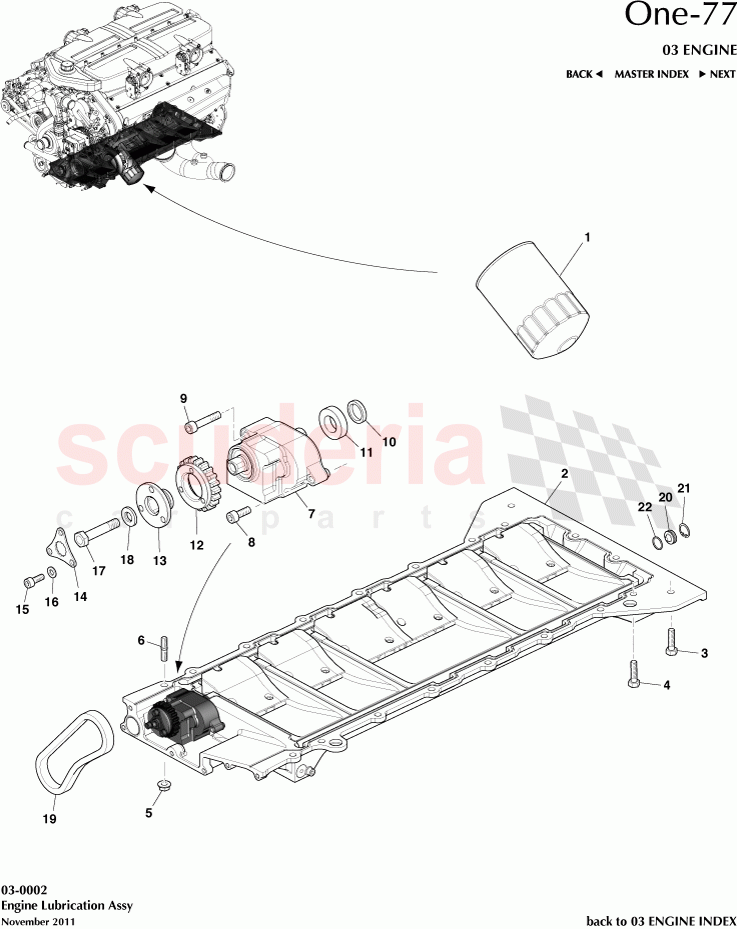

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AY936714AA Filter, Oil Enquire To Order
Photo Part No Description Price (each) Stock
AY936C707AA ASSY DRY SUMP BTCH 3 Enquire To Order
Photo Part No Description Price (each) Stock
AY938910024 Screw, Upper Bracket, Air Con Pump Enquire To Order
Photo Part No Description Price (each) Stock
705359 Stud, Sump to Block Enquire To Order
Photo Part No Description Price (each) Stock
AY930410043 Pump, Scavenge Enquire To Order
Photo Part No Description Price (each) Stock
AY93857799BA SCREW M6 X1 X 50 SCH Enquire To Order
Photo Part No Description Price (each) Stock
705361 Screw, Scavenge Pump Enquire To Order
Photo Part No Description Price (each) Stock
AY930410045 Spacer, Scavenge Pump to Sump Enquire To Order
Photo Part No Description Price (each) Stock
AY930410046 Bearing, Scavenge Pump Enquire To Order
Photo Part No Description Price (each) Stock
AY930410047 Gear, Scavenge Pump Enquire To Order
Photo Part No Description Price (each) Stock
AY930410048 Coupling, Sprocket, Scavenge Pump Enquire To Order
Photo Part No Description Price (each) Stock
AY930410049 Plate-Nut, Scavenge Pump Enquire To Order
Photo Part No Description Price (each) Stock
705362 Screws, Scavenge Pump Enquire To Order
Photo Part No Description Price (each) Stock
705363 Washers, Scavenge Pump Enquire To Order
Photo Part No Description Price (each) Stock
705364 Bolt, NAS, Scavenge Pump Enquire To Order
Photo Part No Description Price (each) Stock
705365 Coupling, Washer, Scavenge Pump Enquire To Order
Photo Part No Description Price (each) Stock
AY936A985AA CHAIN SCAV PMP DRV Enquire To Order
Photo Part No Description Price (each) Stock
AY936C856AA PLUG - SUMP Enquire To Order
Photo Part No Description Price (each) Stock
AY930410052 Circlip, Sump Oil Bung Enquire To Order
Photo Part No Description Price (each) Stock
AY930410053 O Ring, Sump Oil Bung Enquire To Order
View All
Engine Lubrication Assembly of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 705358
Sealant Loctite 5970, Plenum Cover 		- A/R Enquire
- AY930410044
O Ring, Scavenge Pump 		- 1 Enquire
1 AY936714AA
Filter, Oil 		- 1 Enquire
2 AY936C707AA
ASSY DRY SUMP BTCH 3 		- 1 Enquire
3 AY938910024
Screw, Upper Bracket, Air Con Pump 		- 2 Enquire
6 705359
Stud, Sump to Block 		- 7 Enquire
7 AY930410043
Pump, Scavenge 		- 1 Enquire
8 AY93857799BA
SCREW M6 X1 X 50 SCH 		- 1 Enquire
9 705361
Screw, Scavenge Pump 		- 1 Enquire
10 AY930410045
Spacer, Scavenge Pump to Sump 		- 1 Enquire
11 AY930410046
Bearing, Scavenge Pump 		- 1 Enquire
12 AY930410047
Gear, Scavenge Pump 		- 1 Enquire
13 AY930410048
Coupling, Sprocket, Scavenge Pump 		- 1 Enquire
14 AY930410049
Plate-Nut, Scavenge Pump 		- 1 Enquire
15 705362
Screws, Scavenge Pump 		- 3 Enquire
16 705363
Washers, Scavenge Pump 		- 3 Enquire
17 705364
Bolt, NAS, Scavenge Pump 		- 1 Enquire
18 705365
Coupling, Washer, Scavenge Pump 		- 1 Enquire
19 AY936A985AA
CHAIN SCAV PMP DRV 		- 1 Enquire
20 AY936C856AA
PLUG - SUMP 		- 1 Enquire
21 AY930410052
Circlip, Sump Oil Bung 		- 1 Enquire
22 AY930410053
O Ring, Sump Oil Bung 		- 1 Enquire
