Engine Lubrication Assembly

Aston Martin One-77

Find Your Part

Aston Martin One-77 - Engine Lubrication Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023038622AB Pipe assy, Oil Cooler Return Enquire To Order
Photo Part No Description Price (each) Stock
12023037076AA Screw M6x14 Socket Cap, Stainless Steel Enquire To Order
Photo Part No Description Price (each) Stock
12023037192AA O Ring 29x2.5 $11.07 To Order
Photo Part No Description Price (each) Stock
12023038626AC Pipe assy, Oil Scavenge Return $1,674.01 To Order
Photo Part No Description Price (each) Stock
12023037076AA Screw M6x14 Socket Cap, Stainless Steel Enquire To Order
Photo Part No Description Price (each) Stock
12023037190AA O Ring 31x1.5 $9.40 To Order
Photo Part No Description Price (each) Stock
12023038628AB Cap, Oil Thermostat $429.98 To Order
Photo Part No Description Price (each) Stock
12023037194AA O Ring 40.95x2.62 $7.84 To Order
Photo Part No Description Price (each) Stock
12023038646AA Thermostat, Oil $935.89 To Order
Photo Part No Description Price (each) Stock
12023037196AA O Ring 44.17x1.78 $11.07 To Order
Photo Part No Description Price (each) Stock
12023037458AA Valve assy, Oil Pressure Release $820.18 To Order
Photo Part No Description Price (each) Stock
12023037198AA O Ring 33x2.0 $10.13 To Order
Photo Part No Description Price (each) Stock
12023038620AB Pipe assy, Oil Cooler Feed $3,400.98 To Order
Photo Part No Description Price (each) Stock
12023037200AA O Ring 36.27x1.78 $6.33 To Order
Photo Part No Description Price (each) Stock
12023038624AC Pipe assy, Engine Oil Feed $1,952.99 To Order
Photo Part No Description Price (each) Stock
12023037076AA Screw M6x14 Socket Cap, Stainless Steel Enquire To Order
Photo Part No Description Price (each) Stock
12023038804AA Filter, Oil Pickup $530.96 To Order
Photo Part No Description Price (each) Stock
12023037202AA O Ring 31.47x1.78 $5.72 To Order
Photo Part No Description Price (each) Stock
12023037204AA O Ring 40x2.5 $6.72 To Order
Photo Part No Description Price (each) Stock
12023037206AA O Ring 32x2.2 $18.20 To Order
View All

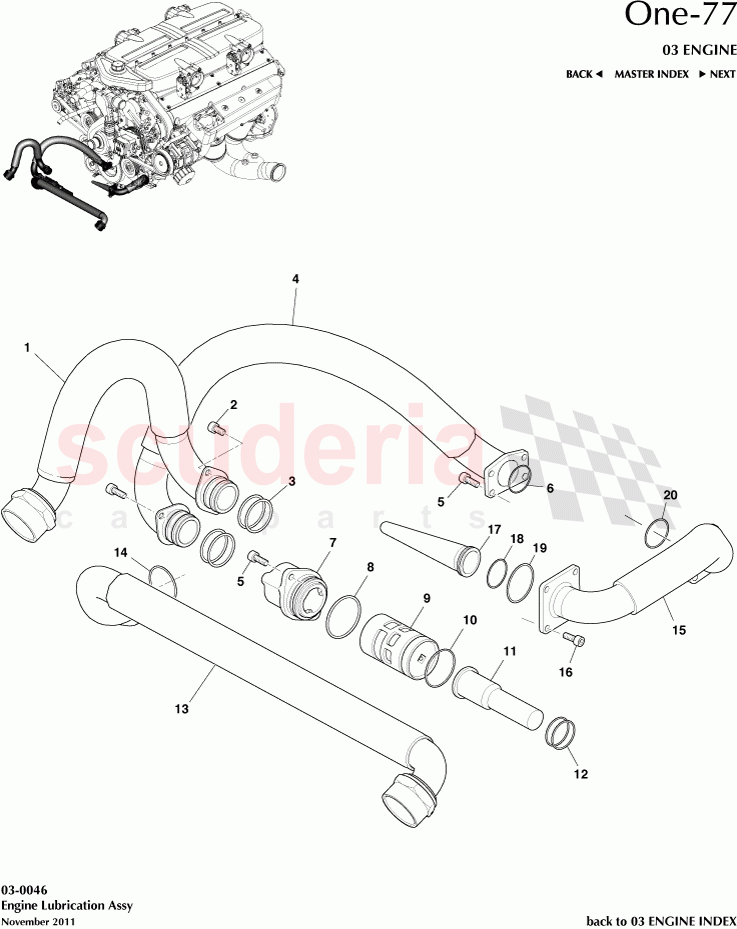

Engine Lubrication Assembly of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 12023038622AB
Pipe assy, Oil Cooler Return
2 		- 1 Enquire
2 12023037076AA
Screw M6x14 Socket Cap, Stainless Steel
Oil Cooler Return Pipe 		- 2 Enquire
3 12023037192AA
O Ring 29x2.5
Oil Cooler Return Pipe 		$11.07 2
4 12023038626AC
Pipe assy, Oil Scavenge Return 		$1,674.01 1
5 12023037076AA
Screw M6x14 Socket Cap, Stainless Steel
Oil Scavenge Return Pipe 		- 8 Enquire
6 12023037190AA
O Ring 31x1.5
Oil Scavenge Return Pipe 		$9.40 1
7 12023038628AB
Cap, Oil Thermostat 		$429.98 1
8 12023037194AA
O Ring 40.95x2.62
Oil Thermostat Cap 		$7.84 1
9 12023038646AA
Thermostat, Oil 		$935.89 1
10 12023037196AA
O Ring 44.17x1.78 		$11.07 1
11 12023037458AA
Valve assy, Oil Pressure Release 		$820.18 1
12 12023037198AA
O Ring 33x2.0
Oil Pressure Release Valve 		$10.13 1
13 12023038620AB
Pipe assy, Oil Cooler Feed 		$3,400.98 1
14 12023037200AA
O Ring 36.27x1.78
Oil Cooler Feed Pipe 		$6.33 1
15 12023038624AC
Pipe assy, Engine Oil Feed 		$1,952.99 1
16 12023037076AA
Screw M6x14 Socket Cap, Stainless Steel
Engine Oil Feed Pipe 		- 4 Enquire
17 12023038804AA
Filter, Oil Pickup 		$530.96 1
18 12023037202AA
O Ring 31.47x1.78
Oil Pickup Filter 		$5.72 1
19 12023037204AA
O Ring 40x2.5
Engine Oil Feed Pipe 		$6.72 1
20 12023037206AA
O Ring 32x2.2
Engine Oil Feed Pipe 		$18.20 1
