Air Distribution Components of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

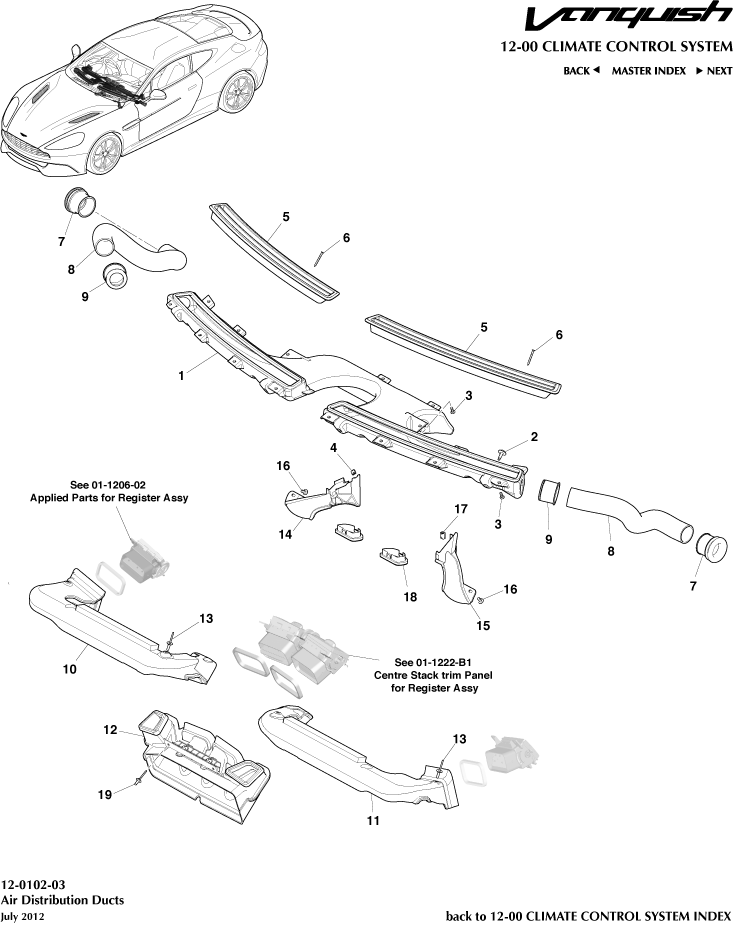

Aston Martin GT VANQUISH (2013-2018) - Air Distribution Components

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G3304432AD	Duct Assembly, Windshield Deflector, LHD	6G3304432AD Duct Assembly, Windshield Deflector, LHD -	-	1	Enquire
-	CD3318D404AA	Duct Assy, Heater Air Distributor, LHD	CD3318D404AA Duct Assy, Heater Air Distributor, LHD -	-	1	Enquire
-	DD33014K96AA	Duct Assy, Aircon Foot Well, RH, LHD	DD33014K96AA Duct Assy, Aircon Foot Well, RH, LHD -	-	1	Enquire
-	DD33014K97AA	Duct Assy, Aircon Foot Well, LH, LHD	DD33014K97AA Duct Assy, Aircon Foot Well, LH, LHD -	-	1	Enquire
1	6G3304432BD	Duct Assembly, Windshield Deflector, RHD	6G3304432BD Duct Assembly, Windshield Deflector, RHD -	-	1	Enquire
2	703156	Screw/Washer M6x18 Chrome Free IN STOCK	703156 Screw/Washer M6x18 Chrome Free - IN STOCK	-	4	Enquire
3	703068	4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP -	-	8	Enquire
4	708821	P/SMPL-BRAEMAR BLUE	708821 P/SMPL-BRAEMAR BLUE -	-	8	Enquire
5	4G4318C491AJ	Grille - Window Defrost	4G4318C491AJ Grille - Window Defrost -	-	2	Enquire
6	6G3379231AC	Screw, M3.5 x 38, Flat Hd Csk IN STOCK	6G3379231AC Screw, M3.5 x 38, Flat Hd Csk - IN STOCK	-	4	Enquire
7	4G43C046B80AC	SE I/PNL DEF OPG GRL	4G43C046B80AC SE I/PNL DEF OPG GRL -	-	2	Enquire
8	4G4319E658AC	Hose, A/C Window Demister	4G4319E658AC Hose, A/C Window Demister -	-	2	Enquire
9	4G4319E680AD	Connector, A/C Demister Hose	4G4319E680AD Connector, A/C Demister Hose -	-	2	Enquire
10	CD3319C804AA	Duct, Hvac Outer, RH	CD3319C804AA Duct, Hvac Outer, RH -	-	1	Enquire
11	CD3319C805AA	Duct, Hvac Outer, LH	CD3319C805AA Duct, Hvac Outer, LH -	-	1	Enquire
12	CD3318D404BA	Duct Assy, Heater Air Distributor, RHD	CD3318D404BA Duct Assy, Heater Air Distributor, RHD -	-	1	Enquire
13	6G33RA610123AA	Pop Rivet, Aluminium, 4.8	6G33RA610123AA Pop Rivet, Aluminium, 4.8 -	-	A/R	Enquire
14	DD33014K96BA	Duct Assy, Aircon Foot Well, RH, RHD	DD33014K96BA Duct Assy, Aircon Foot Well, RH, RHD -	-	1	Enquire
15	DD33014K97BA	Duct Assy, Aircon Foot Well, LH, RHD	DD33014K97BA Duct Assy, Aircon Foot Well, LH, RHD -	-	1	Enquire
16	701157PK	Screw & Washer 4.2 x 16 (Pack of 10) IN STOCK	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Pack of 10 IN STOCK	-	2	Enquire
17	8D3360302BB	Clip, Fir Tree, Flat Head	8D3360302BB Clip, Fir Tree, Flat Head -	-	2	Enquire
18	7G43014K00AA	Plug Assembly, Foot Duct Outlet	7G43014K00AA Plug Assembly, Foot Duct Outlet -	-	2	Enquire
19	4G4317A873AA	RIVET 4.8 x 12 BLND LRG AL	4G4317A873AA RIVET 4.8 x 12 BLND LRG AL -	-	2	Enquire
