HVAC Unit of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

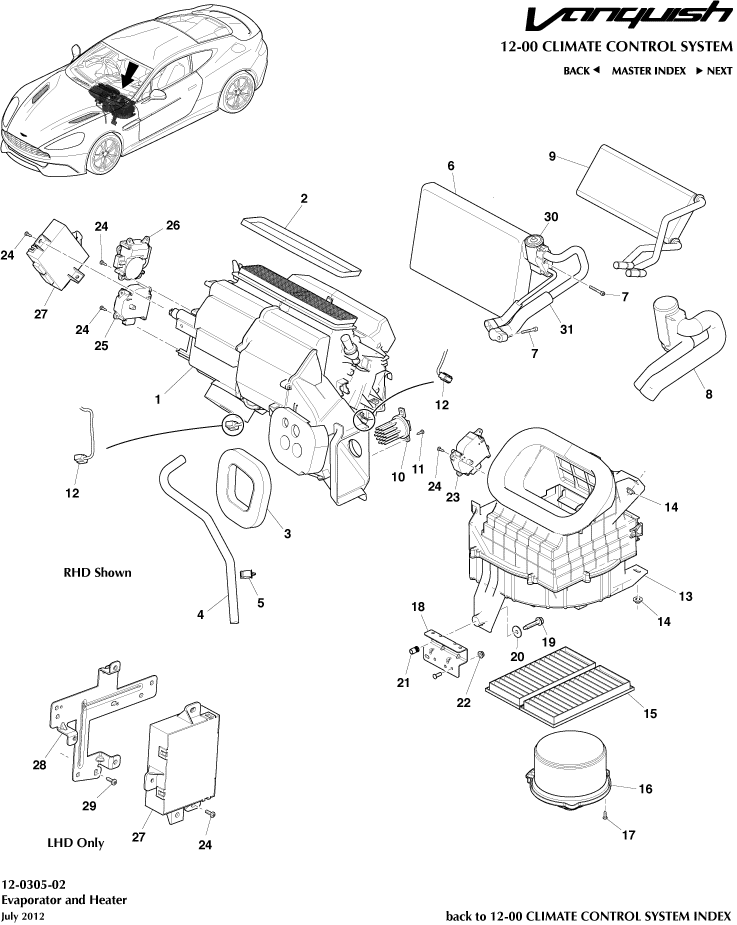

Aston Martin GT VANQUISH (2013-2018) - HVAC Unit

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4319A889AA	Evaporator Assy A/C, LHD	4G4319A889AA Evaporator Assy A/C, LHD LHD	-	1	Enquire
-	4G4319D693AA	Sealing, Evap Tube Inner	4G4319D693AA Sealing, Evap Tube Inner -	-	1	Enquire
-	4G4318D673AA	Sealing, Heater Core Tube to Heater Case	4G4318D673AA Sealing, Heater Core Tube to Heater Case LHD	-	1	Enquire
-	4G4318D671AA	Core & Tube Assy, heater, LHD	4G4318D671AA Core & Tube Assy, heater, LHD -	-	1	Enquire
-	4G4319F613AA	Motor and Fan Assy A/C, LHD	4G4319F613AA Motor and Fan Assy A/C, LHD -	-	1	Enquire
-	4G4318A251AA	Servo Assy, A/C Heater Fresh/Recirculate Air LHD	4G4318A251AA Servo Assy, A/C Heater Fresh/Recirculate Air LHD -	-	1	Enquire
-	4G4318D675AA	Servo Assy, A/C Heater Air Mix, LHD	4G4318D675AA Servo Assy, A/C Heater Air Mix, LHD -	-	1	Enquire
-	4G4318E247AA	Servo Assy, A/C Heater Mode, LHD	4G4318E247AA Servo Assy, A/C Heater Mode, LHD -	-	1	Enquire
-	4G4319F614AA	Evaporator Tube Assy	4G4319F614AA Evaporator Tube Assy LHD	-	1	Enquire
3	4G4319D692AA	Seal, A/C Evaporator Tub Outer	4G4319D692AA Seal, A/C Evaporator Tub Outer -	-	1	Enquire
5	701172	Clip, 16 x 2.8 - 3.3	701172 Clip, 16 x 2.8 - 3.3 -	-	1	Enquire
6	4G4319850AA	Evaporator A/C, RHD	4G4319850AA Evaporator A/C, RHD RHD	-	1	Enquire
7	4G43ALR8679AA	Screw, M5 x 40, Hex Socket	4G43ALR8679AA Screw, M5 x 40, Hex Socket -	-	3	Enquire
8	22AA710GP	SEAL MLDG PRIMARY CHEATER RH	22AA710GP SEAL MLDG PRIMARY CHEATER RH RHD	-	1	Enquire
9	00RA068	SCREW - M8X12 - HEX	00RA068 SCREW - M8X12 - HEX -	-	1	Enquire
10	4G4319F615AA	Transistor Power A/C	4G4319F615AA Transistor Power A/C -	-	1	Enquire
11	13A2053CP	REGULATOR & MOTOR ASSY - DOOR GLASS - RH	13A2053CP REGULATOR & MOTOR ASSY - DOOR GLASS - RH -	-	2	Enquire
12	4G4319F598AA	Sensor A/C Evaporator Temperature	4G4319F598AA Sensor A/C Evaporator Temperature -	-	2	Enquire
14	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB -	-	5	Enquire
15	4G4313ZE1AAPK	Pollen and Odour Filter (Pack of 2)	4G4313ZE1AAPK Pollen and Odour Filter (Pack of 2) Pack of 2	-	2	Enquire
16	4G4319F612AA	Motor and Fan Assy A/C, RHD	4G4319F612AA Motor and Fan Assy A/C, RHD -	-	1	Enquire
17	4G43N104301AA	SCREW M5 x 16 HX SPCL	4G43N104301AA SCREW M5 x 16 HX SPCL -	-	3	Enquire
19	703745	SCREW-M8x35 FLG 8.8	703745 SCREW-M8x35 FLG 8.8 -	-	1	Enquire
20	697452	Washer, M8 x 24 x 1.8, Black	697452 Washer, M8 x 24 x 1.8, Black -	-	1	Enquire
21	6G3358762AA	RIVNUT M8 LOW PROFILE 0.8 3MM ZN/N	6G3358762AA RIVNUT M8 LOW PROFILE 0.8 3MM ZN/N -	-	1	Enquire
22	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	2	Enquire
23	4G4318A250AA	Servo Assy, A/C Heater Fresh/Recirculate Air RHD	4G4318A250AA Servo Assy, A/C Heater Fresh/Recirculate Air RHD -	-	1	Enquire
24	4G43104084AA	SCREW M4 x 16 PAN HD	4G43104084AA SCREW M4 x 16 PAN HD -	-	12	Enquire
25	4G4318D674AA	Servo Assy, A/C Heater Air Mix, RHD	4G4318D674AA Servo Assy, A/C Heater Air Mix, RHD -	-	1	Enquire
26	4G4318E246AA	Servo Assy, A/C Heater Mode, RHD	4G4318E246AA Servo Assy, A/C Heater Mode, RHD -	-	1	Enquire
27	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Part of item 1	-	1	Enquire
28	22AA709GP	SEAL MLDG PRIMARY CHEATER LH	22AA709GP SEAL MLDG PRIMARY CHEATER LH LHD Only	-	1	Enquire
29	22AA797GP	ASSY BRKT RR FENDER FRT RH	22AA797GP ASSY BRKT RR FENDER FRT RH LHD Only	-	3	Enquire
30	4G4319849AA	Valve Assy, A/C Evaporator Exp	4G4319849AA Valve Assy, A/C Evaporator Exp -	-	1	Enquire
31	4G4319A641AA	Evaporator Tube Assy	4G4319A641AA Evaporator Tube Assy RHD	-	1	Enquire
