Air Con Lines, HFO1234yf Gas of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Air Con Lines, HFO1234yf Gas

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

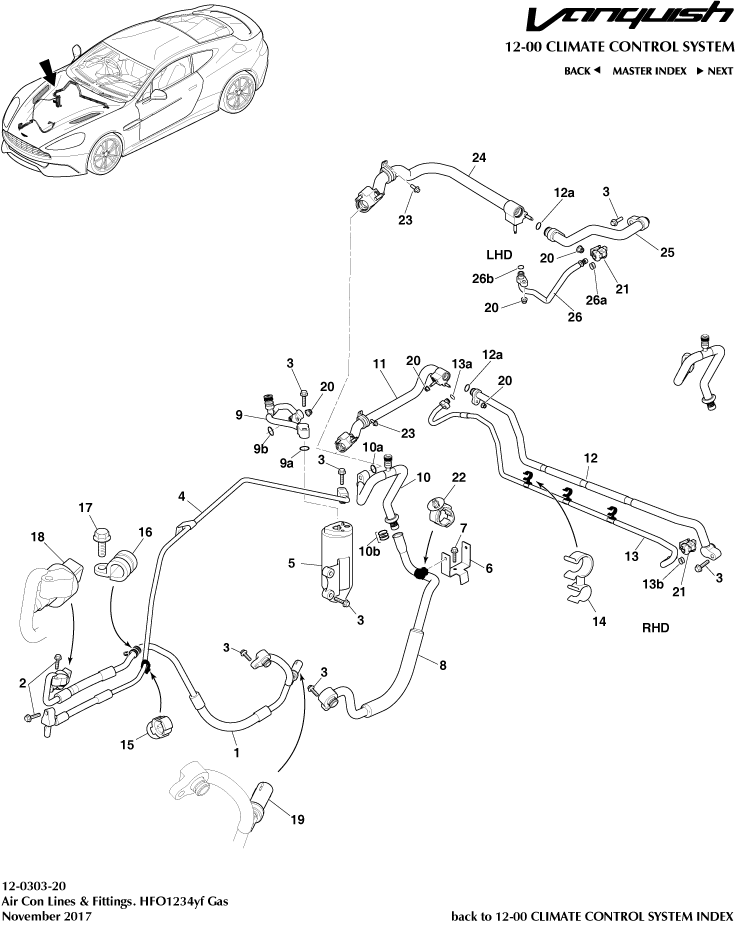

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	HD3319972AA	TUBE ASSY A/C COMPR	HD3319972AA TUBE ASSY A/C COMPR -	-	1	Enquire
2	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE -	-	2	Enquire
3	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free -	-	7	Enquire
4	HD3319D719AA	TUBE ASSY AC DEHY IN	HD3319D719AA TUBE ASSY AC DEHY IN -	-	1	Enquire
5	4G4319E891AD	Air Conditioning Drier	4G4319E891AD Air Conditioning Drier -	-	1	Enquire
6	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	4G436147XAD BRACKET - AIRCON / ELECTRICAL RHD Only	-	1	Enquire
7	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free RHD Only	-	1	Enquire
8	HD3319A705AA	TUB ASY A/C EVP OLET	HD3319A705AA TUB ASY A/C EVP OLET -	-	1	Enquire
9	HG4319N649AA	TUB ASY A/C IHX INLE	HG4319N649AA TUB ASY A/C IHX INLE -	-	1	Enquire
9a	HD2387071AA	EPDM - O-RING	HD2387071AA EPDM - O-RING -	-	1	Enquire
9b	HD2387072AA	EPDM O-RING	HD2387072AA EPDM O-RING -	-	1	Enquire
10	HG4319N648AA	TUB ASY A/C IHX OLET	HG4319N648AA TUB ASY A/C IHX OLET -	-	1	Enquire
10a	HD2319394AA	EPDM O-RING	HD2319394AA EPDM O-RING -	-	1	Enquire
10b	HD2349745AA	EPDM O RING	HD2349745AA EPDM O RING -	-	3	Enquire
11	HD2318D487BB	TUB ASY A/C INX RHD	HD2318D487BB TUB ASY A/C INX RHD RHD	-	1	Enquire
12	HG4319D602BA	TUB ASY A/C EVP OLET	HG4319D602BA TUB ASY A/C EVP OLET RHD	-	1	Enquire
12a	HD2319394AA	EPDM O-RING	HD2319394AA EPDM O-RING -	-	1	Enquire
13	HG4319D603BA	TUB ASY A/C EVP IN R	HG4319D603BA TUB ASY A/C EVP IN R RHD	-	1	Enquire
13a	HD2387072AA	EPDM O-RING	HD2387072AA EPDM O-RING -	-	1	Enquire
13b	HD2387024AA	EPDM O-RING	HD2387024AA EPDM O-RING -	-	2	Enquire
15	701180	Clip, 14 x 4, Push In	701180 Clip, 14 x 4, Push In -	-	1	Enquire
16	699634	P-Clip,13 x 15 x M6	699634 P-Clip,13 x 15 x M6 -	-	1	Enquire
17	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	1	Enquire
18	1R128910192	Switch, A/C High Pressure	1R128910192 Switch, A/C High Pressure -	-	1	Enquire
19	6F9319D594AA	SW ASY-A/C PRES CTOF	6F9319D594AA SW ASY-A/C PRES CTOF -	-	1	Enquire
20	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking -	-	3	Enquire
21	4G434073AAA	CLAMP - LIQ	4G434073AAA CLAMP - LIQ -	-	1	Enquire
22	702291	Clip, 11-18 x 6.5 x 7	702291 Clip, 11-18 x 6.5 x 7 RHD Only	-	1	Enquire
23	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head -	-	1	Enquire
24	HD2318D487AB	TUB ASY A/C IHX OLET	HD2318D487AB TUB ASY A/C IHX OLET LHD	-	1	Enquire
25	HG4319D602AA	TUB ASY A/C EVP OLET	HG4319D602AA TUB ASY A/C EVP OLET LHD	-	1	Enquire
26	HG4319D603AA	TUB ASY A/C EVP IN L	HG4319D603AA TUB ASY A/C EVP IN L LHD	-	1	Enquire
26a	HD2387024AA	EPDM O-RING	HD2387024AA EPDM O-RING -	-	2	Enquire
26b	HD2387072AA	EPDM O-RING	HD2387072AA EPDM O-RING -	-	1	Enquire
