Rear Suspension Assembly of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

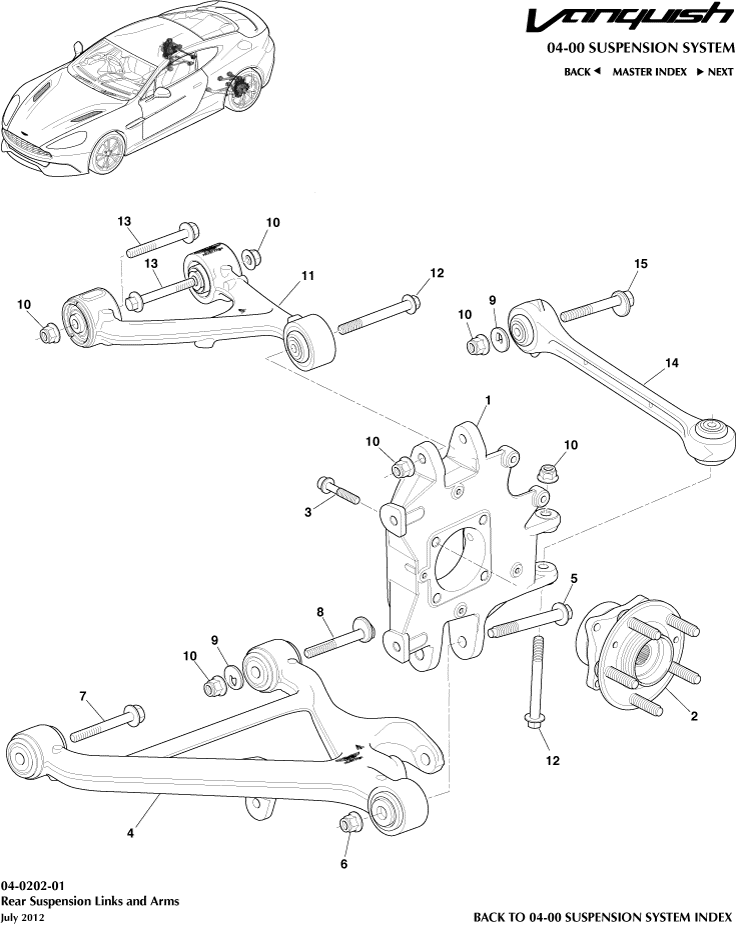

Aston Martin GT VANQUISH (2013-2018) - Rear Suspension Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD235A970AA	KNUCKLE - REAR WHEEL RH	AD235A970AA KNUCKLE - REAR WHEEL RH -	-	1	Enquire
-	DG435B530AB	ARM & BUSH ASSY RR	DG435B530AB ARM & BUSH ASSY RR -	-	1	Enquire
-	CD335K743AB	Arm Assy, Rear Suspension, Upper	CD335K743AB Arm Assy, Rear Suspension, Upper From 15MY	-	2	Enquire
1	AD235A971AA	Knuckle, Rear Wheel, LH	AD235A971AA Knuckle, Rear Wheel, LH -	-	1	Enquire
3	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5) Pack of 5	-	8	Enquire
4	DG435B531AA	ARM & BUSH ASSY REAR	DG435B531AA ARM & BUSH ASSY REAR -	-	1	Enquire
5	703133	BOLT M14 X 110 HEX FLANGE CHROME FREE	703133 BOLT M14 X 110 HEX FLANGE CHROME FREE -	-	2	Enquire
6	704596	Nut, M14, Hex Flange Head	704596 Nut, M14, Hex Flange Head -	-	2	Enquire
7	703180	BOLT M12 x 90 HEX FLNG 10 CHROME FREE	703180 BOLT M12 x 90 HEX FLNG 10 CHROME FREE -	-	2	Enquire
8	703274	Bolt, M12, Eccentric	703274 Bolt, M12, Eccentric -	-	2	Enquire
9	4G432610840PK	WASHER-M12 ECCENTRIC PACK OF 10	4G432610840PK WASHER-M12 ECCENTRIC PACK OF 10 Pack of 10	-	4	Enquire
10	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE -	-	12	Enquire
11	DD335K743AA	Arm & Bush Assy, Rear Suspension, Upper	DD335K743AA Arm & Bush Assy, Rear Suspension, Upper Up To 15MY	-	2	Enquire
12	AD33487029AA	Bolt, M12 x 110, Hex Flange Head	AD33487029AA Bolt, M12 x 110, Hex Flange Head -	-	4	Enquire
13	703181	BOLT M12 X 85 HEX FLANGE CHROME FREE	703181 BOLT M12 X 85 HEX FLANGE CHROME FREE -	-	4	Enquire
14	BG435B551AA	Arm Assy, Rear Toe Control	BG435B551AA Arm Assy, Rear Toe Control -	-	2	Enquire
15	4G435K978AB	Bolt, M12, Eccentric	4G435K978AB Bolt, M12, Eccentric -	-	2	Enquire
