Wheel & Tyres, Front of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Wheel & Tyres, Front

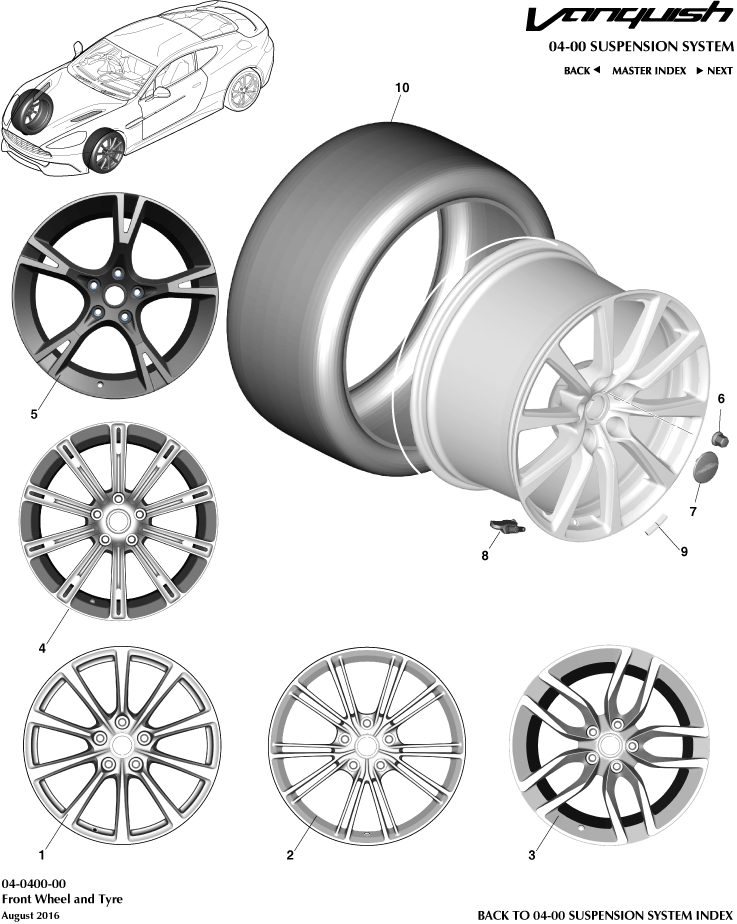

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD331007BA	Wheel, Front 20 Inch, 10 Spoke	CD331007BA Wheel, Front 20 Inch, 10 Spoke Up To 16MY, Graphite	-	2	Enquire
-	HD331007FA	FRT WHL BLK GLS CAST	HD331007FA FRT WHL BLK GLS CAST 17.5MY 'S', Gloss Black Cast	-	2	Enquire
-	CD331007EA	Wheel, Front 20 Inch, 20 Spoke	CD331007EA Wheel, Front 20 Inch, 20 Spoke Up to 15MY, Gloss Black Diamond Turned	-	2	Enquire
-	ED331007BA	FRT WHL GLSS BLK 20	ED331007BA FRT WHL GLSS BLK 20 From 15MY, Gloss Black Diamond Turned	-	2	Enquire
-	CD331007FA	Wheel, Front 20 Inch, 20 Spoke	CD331007FA Wheel, Front 20 Inch, 20 Spoke Silver, DT	-	2	Enquire
-	CD331007GA	Wheel, Front 20 Inch, 20 Spoke	CD331007GA Wheel, Front 20 Inch, 20 Spoke Up to 15MY, Graphite, DT	-	2	Enquire
-	ED331007AA	FR WHL GRAPH DT 20IN	ED331007AA FR WHL GRAPH DT 20IN From 15MY, Graphite, DT	-	2	Enquire
-	CD331007HA	Wheel, Front 20 Inch, 20 Spoke	CD331007HA Wheel, Front 20 Inch, 20 Spoke Satin Black, DT	-	2	Enquire
-	FD331007BA	FRT WHL GLSS BLK	FD331007BA FRT WHL GLSS BLK From 15MY, Gloss Black, DT	-	2	Enquire
-	FD331007CA	FRT WHL-STN BLK DT	FD331007CA FRT WHL-STN BLK DT From 15MY, Satin Black, DT	-	2	Enquire
-	FD331007DA	FRT WHL GLSS BLK	FD331007DA FRT WHL GLSS BLK From 15MY, Gloss Black	-	2	Enquire
-	HD331007CA	FRT WHL SLV D/T	HD331007CA FRT WHL SLV D/T 'S', Silver, DT	-	2	Enquire
-	HD331007GA	FRT WHL GLS BLK	HD331007GA FRT WHL GLS BLK 'Ultimate', Gloss Black, No DT, 18.5MY on	-	2	Enquire
-	HD331007JA	FRT WHL 20 inch ST	HD331007JA FRT WHL 20 inch ST 'Ultimate', Satin Black, No DT, 18.5MY on	-	2	Enquire
-	HD331007HA	FRT WHL 20 INCH DT	HD331007HA FRT WHL 20 INCH DT 'Ultimate', Satin Black, DT, 18.5MY on	-	2	Enquire
-	8D331A096BBPK	BADGE-WHL CENTRE(4)	8D331A096BBPK BADGE-WHL CENTRE(4) Graphite Cap/Black Wings. Pack of 4	-	2	Enquire
-	CD331A096ABPK	BADGE-WHL CENTRE(4)	CD331A096ABPK BADGE-WHL CENTRE(4) Black Cap/Black Wings. Up to 17MY. Pack of 4	-	2	Enquire
-	ED231A096AAPK	CAP-WHEEL CENTRE	ED231A096AAPK CAP-WHEEL CENTRE Satin Black Cap/Black Wings. Pack of 4	-	2	Enquire
-	HY531A096HAPK	BADGE-WHL CENTRE(4)	HY531A096HAPK BADGE-WHL CENTRE(4) Anthracite Cap/Black Wings. From 17MY. Pack of 4	-	2	Enquire
-	CD23360671DA	TPMS Valve and Transmitter Assy	CD23360671DA TPMS Valve and Transmitter Assy 315 MHZ	-	2	Enquire
-	CD237042AA	VALVE	CD237042AA VALVE -	-	2	Enquire
-	AY2Y1040AA	Weight, Counter Balance, 5 Grams	AY2Y1040AA Weight, Counter Balance, 5 Grams Black	-	A/R	Enquire
-	8D331508CA	Tyre, Road Front Winter, 245/35 R20	8D331508CA Tyre, Road Front Winter, 245/35 R20 While stock last, After, refer to Pirelli	-	2	Enquire
-	CG43974747AA	Label, Winter Tyre, Maximum Speeds When Fitted	CG43974747AA Label, Winter Tyre, Maximum Speeds When Fitted Use with Item 4	-	1	Enquire
1	CD331007AA	Wheel, Front 20 Inch, 10 Spoke	CD331007AA Wheel, Front 20 Inch, 10 Spoke Silver	-	2	Enquire
2	CD331007CA	Wheel, Front 20 Inch, 20 Spoke	CD331007CA Wheel, Front 20 Inch, 20 Spoke Up To 16MY, Liquid Silver	-	2	Enquire
3	FD331007AA	FRT WHL SILV DT	FD331007AA FRT WHL SILV DT From 15MY, Silver, DT	-	2	Enquire
4	AD431007XA	Wheel, Front 20 Inch, 10 Spoke	AD431007XA Wheel, Front 20 Inch, 10 Spoke Graphite, Winter Wheel	-	2	Enquire
5	HD331007AA	FRT WHL GLS BLK D/T	HD331007AA FRT WHL GLS BLK D/T 'S', Gloss Black, DT	-	2	Enquire
6	4G431K024BD	Nut, Wheel, M14 x 2.0 ARRIVING SOON	4G431K024BD Nut, Wheel, M14 x 2.0 - ARRIVING SOON	-	10	Enquire
7	8D331A096ABPK	BADGE-WHL CENTRE(4)	8D331A096ABPK BADGE-WHL CENTRE(4) Silver Cap/Black Wings. Up to 17MY. Pack of 4	-	2	Enquire
8	CD23360671CA	TPMS Valve and Transmitter	CD23360671CA TPMS Valve and Transmitter 433 MHZ	-	2	Enquire
9	AY2Y1040AA	Weight, Counter Balance, 5 Grams	AY2Y1040AA Weight, Counter Balance, 5 Grams Silver	-	A/R	Enquire
10	CD331508AB	RD TYRE FT-25535ZR20	CD331508AB RD TYRE FT-25535ZR20 P Zero, ECE117	-	2	Enquire
