Wheel & Tyres, Rear of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

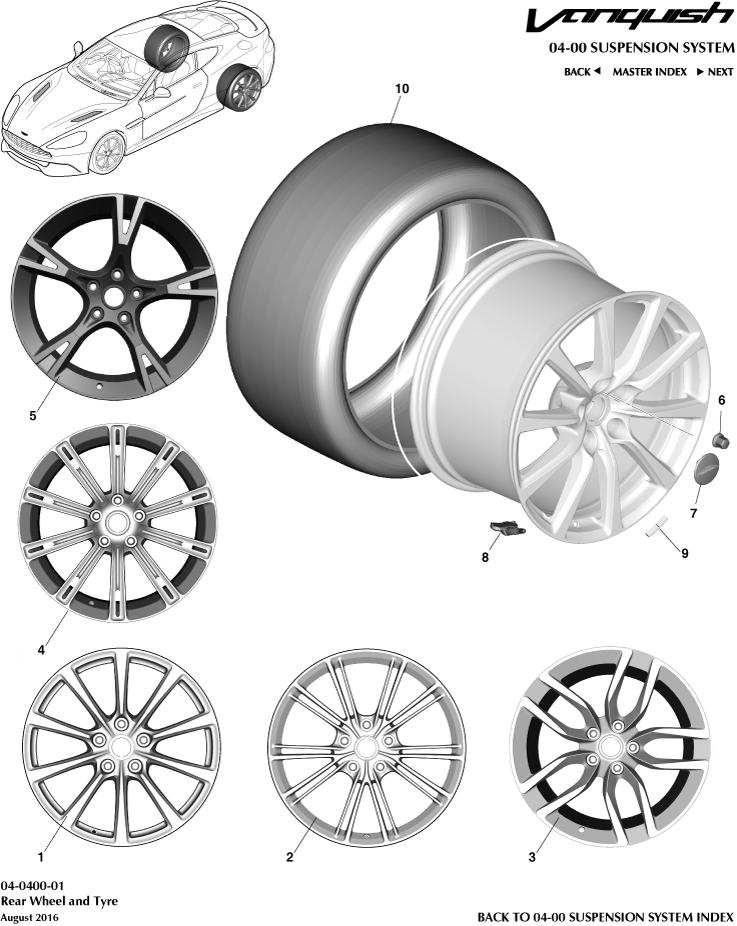

Aston Martin GT VANQUISH (2013-2018) - Wheel & Tyres, Rear

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD339965GBA	Wheel, Rear 20 Inch, 10 Spoke	CD339965GBA Wheel, Rear 20 Inch, 10 Spoke Up To 16MY, Graphite	-	2	Enquire
-	HD339965GFA	RR WHL BLK GLS CAST	HD339965GFA RR WHL BLK GLS CAST 17.5MY 'S', Gloss Black	-	2	Enquire
-	CD339965GEA	Wheel, Rear 20 Inch, 20 Spoke	CD339965GEA Wheel, Rear 20 Inch, 20 Spoke Up To 15MY, Gloss Black, Diamond Turned	-	2	Enquire
-	ED339965GBA	RR WHL GLOSS BLK DT	ED339965GBA RR WHL GLOSS BLK DT From 15MY, Gloss Black, Diamond Turned	-	2	Enquire
-	CD339965GFA	Wheel, Rear 20 Inch, 20 Spoke	CD339965GFA Wheel, Rear 20 Inch, 20 Spoke Silver, DT	-	2	Enquire
-	CD339965GGA	Wheel, Rear 20 Inch, 20 Spoke	CD339965GGA Wheel, Rear 20 Inch, 20 Spoke Up To 15MY, Graphite, DT	-	2	Enquire
-	ED339965GAA	RR WHL GRAPH DR 20IN	ED339965GAA RR WHL GRAPH DR 20IN From 15MY, Graphite, DT	-	2	Enquire
-	CD339965GHA	Wheel, Rear 20 Inch, 20 Spoke	CD339965GHA Wheel, Rear 20 Inch, 20 Spoke Satin Black, DT	-	2	Enquire
-	FD339965GBA	RR WHL GLOSS BLK DT	FD339965GBA RR WHL GLOSS BLK DT From 15MY, Gloss Black, DT	-	2	Enquire
-	FD339965GCA	RR WHL ST BLK	FD339965GCA RR WHL ST BLK From 15MY, Satin Black, DT	-	2	Enquire
-	FD339965GDA	RR WHL GLOSS BLK	FD339965GDA RR WHL GLOSS BLK From 15MY, Gloss Black	-	2	Enquire
-	HD331007DA	RR WHL SLVDIAM TURN	HD331007DA RR WHL SLVDIAM TURN 'S', Silver, DT	-	2	Enquire
-	HD339965GGA	RR WHL GLS BLK	HD339965GGA RR WHL GLS BLK From 18.5MY, 'Ultimate', Gloss Black	-	2	Enquire
-	HD339965GJA	RR WHL 20 INCH ST	HD339965GJA RR WHL 20 INCH ST From 18.5MY, 'Ultimate', Satin Black - Non DT	-	2	Enquire
-	HD339965GHA	RR WHL 2 INCH DT	HD339965GHA RR WHL 2 INCH DT From 18.5MY, 'Ultimate', Satin Black - DT	-	2	Enquire
-	8D331A096BBPK	BADGE-WHL CENTRE(4)	8D331A096BBPK BADGE-WHL CENTRE(4) Graphite Cap/Black Wings. Pack of 4	-	2	Enquire
-	CD331A096ABPK	BADGE-WHL CENTRE(4)	CD331A096ABPK BADGE-WHL CENTRE(4) Black Cap/Black Wings. Up to 17MY. Pack of 4	-	2	Enquire
-	ED231A096AAPK	CAP-WHEEL CENTRE	ED231A096AAPK CAP-WHEEL CENTRE Satin Black Cap/Black Wings. Pack of 4	-	2	Enquire
-	HY531A096HAPK	BADGE-WHL CENTRE(4)	HY531A096HAPK BADGE-WHL CENTRE(4) Anthracite Cap/Black Wings. From 17MY. Pack of 4	-	2	Enquire
-	CD23360671DA	TPMS Valve and Transmitter Assy	CD23360671DA TPMS Valve and Transmitter Assy 315 MHZ	-	2	Enquire
-	CD237042AA	VALVE	CD237042AA VALVE -	-	2	Enquire
-	ED231040AA	BLK WHL BAL 5G	ED231040AA BLK WHL BAL 5G Black	-	A/R	Enquire
-	KY9Y3A053AB	FR LWR W/BONE LH	KY9Y3A053AB FR LWR W/BONE LH Refer to Pirelli	-	2	Enquire
-	CG43974747AA	Label, Winter Tyre, Maximum Speeds When Fitted	CG43974747AA Label, Winter Tyre, Maximum Speeds When Fitted Use with Item 4	-	1	Enquire
1	CD339965GAA	Wheel, Rear 20 Inch, 10 Spoke	CD339965GAA Wheel, Rear 20 Inch, 10 Spoke Silver	-	2	Enquire
2	CD339965GCA	Wheel, Rear 20 Inch, 20 Spoke	CD339965GCA Wheel, Rear 20 Inch, 20 Spoke Up To 16MY, Liquid Silver	-	2	Enquire
3	FD339965GAA	RR WHL SILV DT	FD339965GAA RR WHL SILV DT From 15MY, Silver, DT	-	2	Enquire
4	AD439965GBA	Wheel, Rear 20 Inch, 10 Spoke	AD439965GBA Wheel, Rear 20 Inch, 10 Spoke Graphite, Winter Wheel	-	2	Enquire
5	HD331007BA	RR WHL GLS BLK DIAM	HD331007BA RR WHL GLS BLK DIAM 'S', Gloss Black, DT	-	2	Enquire
6	4G431K024BD	Nut, Wheel, M14 x 2.0 ARRIVING SOON	4G431K024BD Nut, Wheel, M14 x 2.0 - ARRIVING SOON	-	10	Enquire
7	8D331A096ABPK	BADGE-WHL CENTRE(4)	8D331A096ABPK BADGE-WHL CENTRE(4) Silver Cap/Black Wings. Up to 17MY. Pack of 4	-	2	Enquire
8	CD23360671CA	TPMS Valve and Transmitter	CD23360671CA TPMS Valve and Transmitter 433 MHZ	-	2	Enquire
9	AY2Y1040AA	Weight, Counter Balance, 5 Grams	AY2Y1040AA Weight, Counter Balance, 5 Grams Silver	-	A/R	Enquire
10	FD331508BB	RD TYPE RR- 30530ZR2	FD331508BB RD TYPE RR- 30530ZR2 P Zero, ECE117	-	2	Enquire
