Rear Brake System of Aston Martin Aston Martin GT DBS (2007-2012)

View All

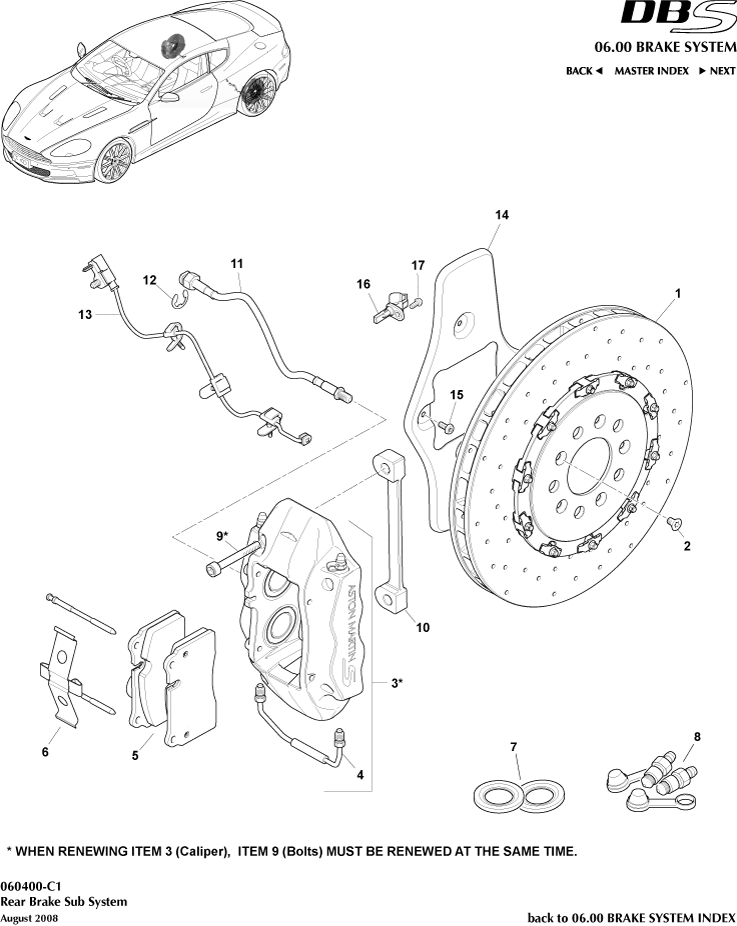

Aston Martin GT DBS (2007-2012) - Rear Brake System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D332C464AA	CAL ASSY RR RH BLK	8D332C464AA CAL ASSY RR RH BLK Black, Marked DBS	-	1	Enquire
-	AD232C465AB	CALIPER ASSY REAR LH GREY W/O PADS INC BOLTS	AD232C465AB CALIPER ASSY REAR LH GREY W/O PADS INC BOLTS Grey	-	1	Enquire
-	AD232C464AB	CALIPER ASSY REAR RH GREY W/O PADS INC BOLTS	AD232C464AB CALIPER ASSY REAR RH GREY W/O PADS INC BOLTS Grey	-	1	Enquire
-	AD232C465DA	CALIPER ASSY REAR LH RED W/O PADS INC BOLTS	AD232C465DA CALIPER ASSY REAR LH RED W/O PADS INC BOLTS Red	-	1	Enquire
-	AD232C464DA	CALIPER ASSY REAR RH RED W/O PADS INC INC BOLTS	AD232C464DA CALIPER ASSY REAR RH RED W/O PADS INC INC BOLTS Red	-	1	Enquire
-	AD232C465FA	CALIPER ASSY RR LH YELLOW W/O PADS INC BOLTS	AD232C465FA CALIPER ASSY RR LH YELLOW W/O PADS INC BOLTS Yellow	-	1	Enquire
-	AD232C464FA	Caliper Assy, Rear, No Pads, RH, Inc Bolts	AD232C464FA Caliper Assy, Rear, No Pads, RH, Inc Bolts Yellow	-	1	Enquire
-	AD232C465FA	CALIPER ASSY RR LH YELLOW W/O PADS INC BOLTS	AD232C465FA CALIPER ASSY RR LH YELLOW W/O PADS INC BOLTS Gold	-	1	Enquire
-	AD232C464FA	Caliper Assy, Rear, No Pads, RH, Inc Bolts	AD232C464FA Caliper Assy, Rear, No Pads, RH, Inc Bolts Gold	-	1	Enquire
-	4G4333693AA	Cap, Bleed Screw	4G4333693AA Cap, Bleed Screw Per caliper	-	1	Enquire
-	8D332C028AA	SHIELD - REAR BRAKE DISC RH	8D332C028AA SHIELD - REAR BRAKE DISC RH -	-	1	Enquire
1	ED232810108	BR DISC &PADS SET-RR	ED232810108 BR DISC &PADS SET-RR -	-	1	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk -	-	4	Enquire
3	8D332C465AA	CAL ASSY RR LH BLK	8D332C465AA CAL ASSY RR LH BLK Black, Marked DBS	-	1	Enquire
4	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire
5	8D332C562BA	Brake Pad Kit, Rear	8D332C562BA Brake Pad Kit, Rear Unbedded	-	1	Enquire
6	8D332C588BA	KIT PAD SPRING AND PIN REAR (PER CALIPER)	8D332C588BA KIT PAD SPRING AND PIN REAR (PER CALIPER) Per caliper	-	1	Enquire
7	4G4332610AA	Kit, Dust Boot, Rear Caliper	4G4332610AA Kit, Dust Boot, Rear Caliper Per caliper	-	2	Enquire
8	4G432C563AA	Kit, Bleed Screw	4G432C563AA Kit, Bleed Screw Per caliper	-	2	Enquire
9	8D332C564AA	Brake Bolt, M12 x 95, Caliper to Knuckle	8D332C564AA Brake Bolt, M12 x 95, Caliper to Knuckle Always Replace, never re-use	-	4	Enquire
10	8D332B128AB	Spacer, caliper to knuckle	8D332B128AB Spacer, caliper to knuckle -	-	2	Enquire
11	6G332282AB	HOS ASY-RR WHL BRK	6G332282AB HOS ASY-RR WHL BRK -	-	2	Enquire
12	6G33JYC10088AB	E Clip Bowed, Nom 16mm	6G33JYC10088AB E Clip Bowed, Nom 16mm -	-	2	Enquire
13	6G332D009AB	Pad Wear Lead, Rear	6G332D009AB Pad Wear Lead, Rear -	-	2	Enquire
14	8D332C029AA	SHIELD - REAR BRAKE DISC LH	8D332C029AA SHIELD - REAR BRAKE DISC LH -	-	1	Enquire
15	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield -	-	8	Enquire
16	4G439010039	Sensor, Wheel Speed	4G439010039 Sensor, Wheel Speed -	-	2	Enquire
17	4G4313D026BA	Screw, wheel speed sensor	4G4313D026BA Screw, wheel speed sensor -	-	2	Enquire
