Brake Lines & Hoses, Rhd

Aston Martin GT DBS (2007-2012)

Find Your Part

Aston Martin GT DBS (2007-2012) - Brake Lines & Hoses, RHD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

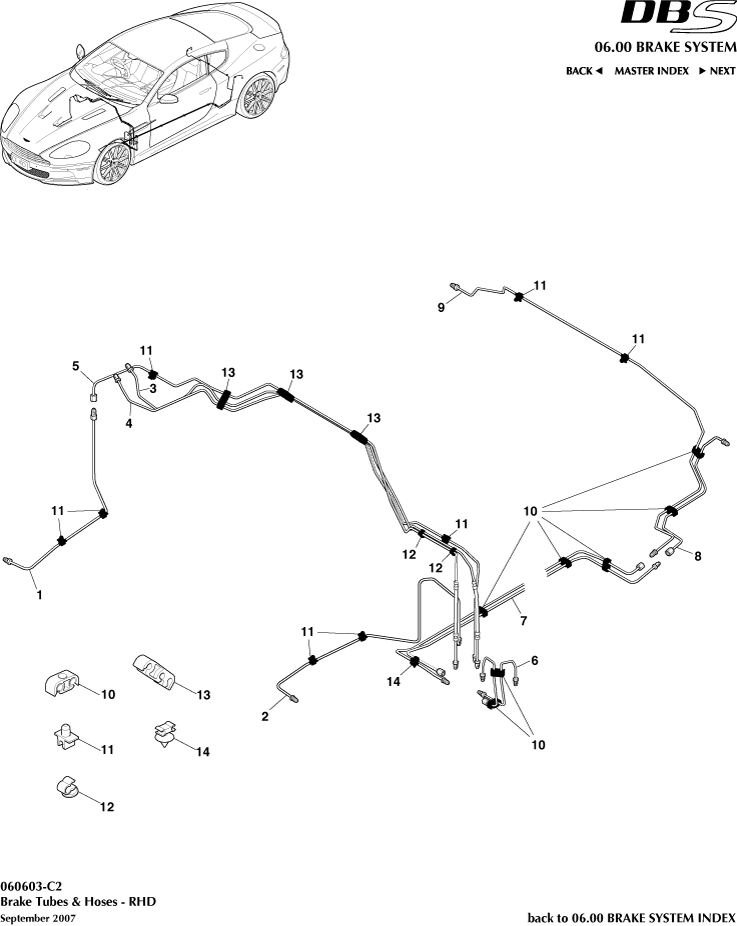

Brake Lines & Hoses, RHD of Aston Martin Aston Martin GT DBS (2007-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G432M022AB
HOS ASY-BRK MSTR CYL
- 		- 1 Enquire
1 4G432263AD
TUBE ASSY - FRONT WHEEL BRAKE RH
- 		- 1 Enquire
2 4G432264AB
HOSE ASSEMBLY - FRONT WHEEL BRAKE LH
- 		- 1 Enquire
3 4G432M019BB
BKE PPE MCYL TO MOD
- 		- 1 Enquire
4 4G432M020BB
BKE PPE MCYL TO MOD
- 		- 1 Enquire
5 4G432263CD
TUBE ASSY - FRONT WHEEL BRAKE RH
- 		- 1 Enquire
6 6G332A478AB
Hose Assy, Brake, Modulator to Under Floor
- 		- 1 Enquire
7 4G432A478BD
Hose Assy, Brake, Under Floor to Rear
- 		- 1 Enquire
8 8D332268CA
TUBE ASSY - REAR WHEEL BRAKE LH
- 		- 1 Enquire
9 8D332267CA
TUBE ASSY - REAR WHEEL BRAKE RH
- 		- 1 Enquire
10 4G4379125AA
CLIP - BRAKE PIPE DOUBLE
- 		- 9 Enquire
11 8D33ANR1864AA
CLIP - BRAKE PIPE SINGLE
- 		- 8 Enquire
12 4G43ADU6075LAA
CLIP - BRAKE PIPE DOUBLE
- 		- 2 Enquire
13 4G43ADU8846AA
Clip, Brake Pipe, Triple
- 		- 3 Enquire
14 4G43ANR5999AA
CLIP - BRAKE PIPE DOUBLE
- 		- 1 Enquire
