Front Brake System of Aston Martin Aston Martin GT DBS (2007-2012)

View All

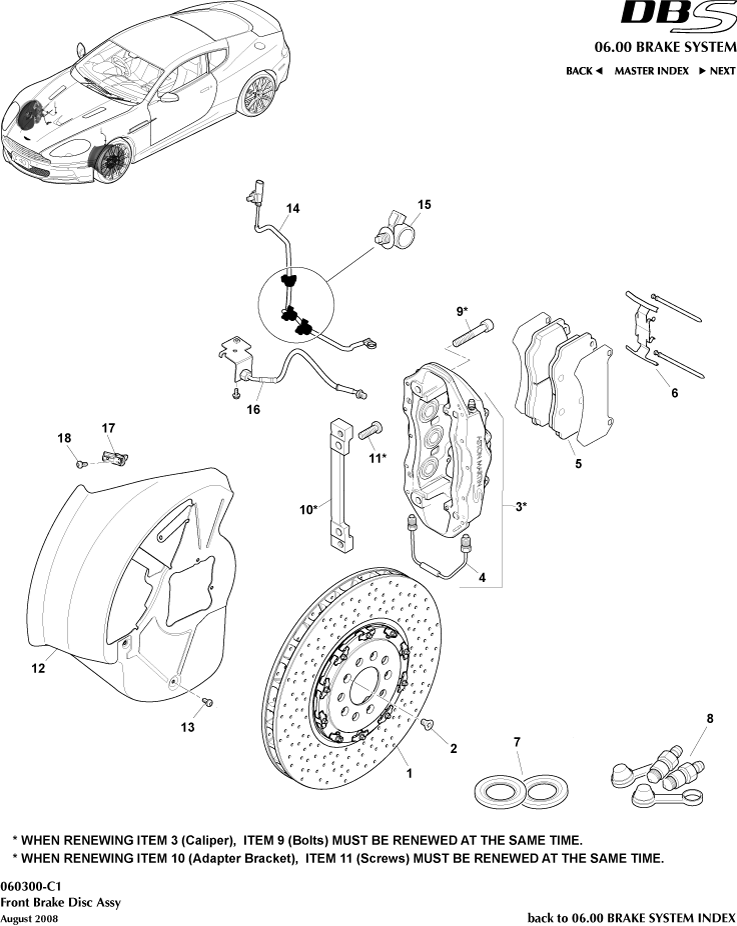

Aston Martin GT DBS (2007-2012) - Front Brake System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D332C463AA	CAL ASSY FR LH BLK	8D332C463AA CAL ASSY FR LH BLK Black, Marked with DBS	-	1	Enquire
-	AD232C462AA	CALIPER ASSY FRONT RH GREY W/O PADS INC BOLTS	AD232C462AA CALIPER ASSY FRONT RH GREY W/O PADS INC BOLTS Grey	-	1	Enquire
-	AD232C463AA	CALIPER ASSY FRONT LH GREY W/O PADS INC BOLTS	AD232C463AA CALIPER ASSY FRONT LH GREY W/O PADS INC BOLTS Grey	-	1	Enquire
-	AD232C462DA	CALIPER ASSY FRONT RH RED W/O PADS INC BOLTS	AD232C462DA CALIPER ASSY FRONT RH RED W/O PADS INC BOLTS Red	-	1	Enquire
-	AD232C463DA	CALIPER ASSY FRONT LH RED W/O PADS INC BOLTS	AD232C463DA CALIPER ASSY FRONT LH RED W/O PADS INC BOLTS Red	-	1	Enquire
-	AD232C462FA	CALIPER ASSY FRONT RH YELLOW W/O PADS INC BOLTS	AD232C462FA CALIPER ASSY FRONT RH YELLOW W/O PADS INC BOLTS Yellow	-	1	Enquire
-	AD232C463FA	CALIPER ASSY FRONT LH YELLOW W/O PADS INC BOLTS	AD232C463FA CALIPER ASSY FRONT LH YELLOW W/O PADS INC BOLTS Yellow	-	1	Enquire
-	AD232C462HA	Caliper Assy, Front, No pads, Inc Bolts - RH	AD232C462HA Caliper Assy, Front, No pads, Inc Bolts - RH Gold	-	1	Enquire
-	AD232C463HA	Caliper Assy, Front, No pads, Inc Bolts - LH	AD232C463HA Caliper Assy, Front, No pads, Inc Bolts - LH Gold	-	1	Enquire
-	4G4333693AA	Cap, Bleed Screw	4G4333693AA Cap, Bleed Screw Per Caliper	-	1	Enquire
-	8D332K005AC	Shield, Front Brake Disc, LH	8D332K005AC Shield, Front Brake Disc, LH -	-	1	Enquire
-	4G432078AD	Hose Assembly, Front Wheel Brake, LH	4G432078AD Hose Assembly, Front Wheel Brake, LH -	-	1	Enquire
1	ED232810107	BR DISC &PADS SET-FT	ED232810107 BR DISC &PADS SET-FT Carbon Ceramic	-	1	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk -	-	4	Enquire
3*	8D332C462AA	CAL ASSY FR RH BLK	8D332C462AA CAL ASSY FR RH BLK Black, Marked with DBS	-	1	Enquire
4	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire

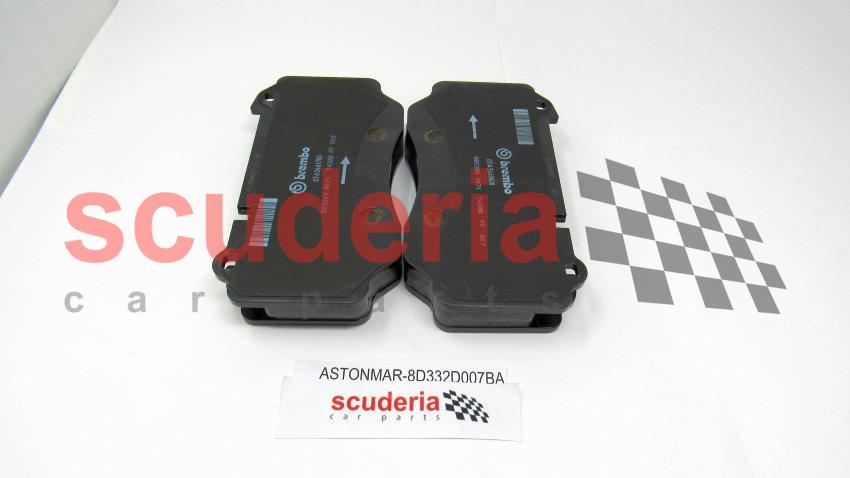

5	8D332D007BA	Brake Pad Kit, Front	8D332D007BA Brake Pad Kit, Front Unbedded	-	1	Enquire
6	8D332C588AA	KIT PAD SPRING AND PIN FRONT (PER CALIPER)	8D332C588AA KIT PAD SPRING AND PIN FRONT (PER CALIPER) Per Caliper	-	1	Enquire
7	8D3332180AA	KIT DUST BOOT FRONT (PER CALIPER)	8D3332180AA KIT DUST BOOT FRONT (PER CALIPER) Per Caliper	-	1	Enquire
8	4G432C563AA	Kit, Bleed Screw	4G432C563AA Kit, Bleed Screw Per Caliper	-	1	Enquire
9*	8D33CD60AA	Bolt, Caliper to Adaptor Bracket ARRIVING SOON	8D33CD60AA Bolt, Caliper to Adaptor Bracket Always Replace, never re-use ARRIVING SOON	-	4	Enquire
10*	ED232D204AB	Adapter Bracket, Front Caliper	ED232D204AB Adapter Bracket, Front Caliper -	-	2	Enquire
11*	8D33YA64AA	BOLT - ADAPTOR BRACKET TO KNUCKLE	8D33YA64AA BOLT - ADAPTOR BRACKET TO KNUCKLE Always Replace, never re-use	-	4	Enquire
12	8D332K004AC	SHIELD - FRONT BRAKE DISC RH	8D332K004AC SHIELD - FRONT BRAKE DISC RH -	-	1	Enquire
13	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield -	-	8	Enquire
14	8D332L507AA	Pad Wear Lead, Front ARRIVING SOON	8D332L507AA Pad Wear Lead, Front - ARRIVING SOON	-	2	Enquire
15	4G436510059	CLIP-FIRTREE 5x6.5x2	4G436510059 CLIP-FIRTREE 5x6.5x2 -	-	6	Enquire
16	4G432078BD	Hose, Front Wheel Brake RH	4G432078BD Hose, Front Wheel Brake RH -	-	1	Enquire
17	4G439010039	Sensor, Wheel Speed	4G439010039 Sensor, Wheel Speed -	-	2	Enquire
18	4G4313D026BA	Screw, wheel speed sensor	4G4313D026BA Screw, wheel speed sensor -	-	2	Enquire
