Rear Suspension Assembly of Aston Martin Aston Martin GT DBS (2007-2012)

View All

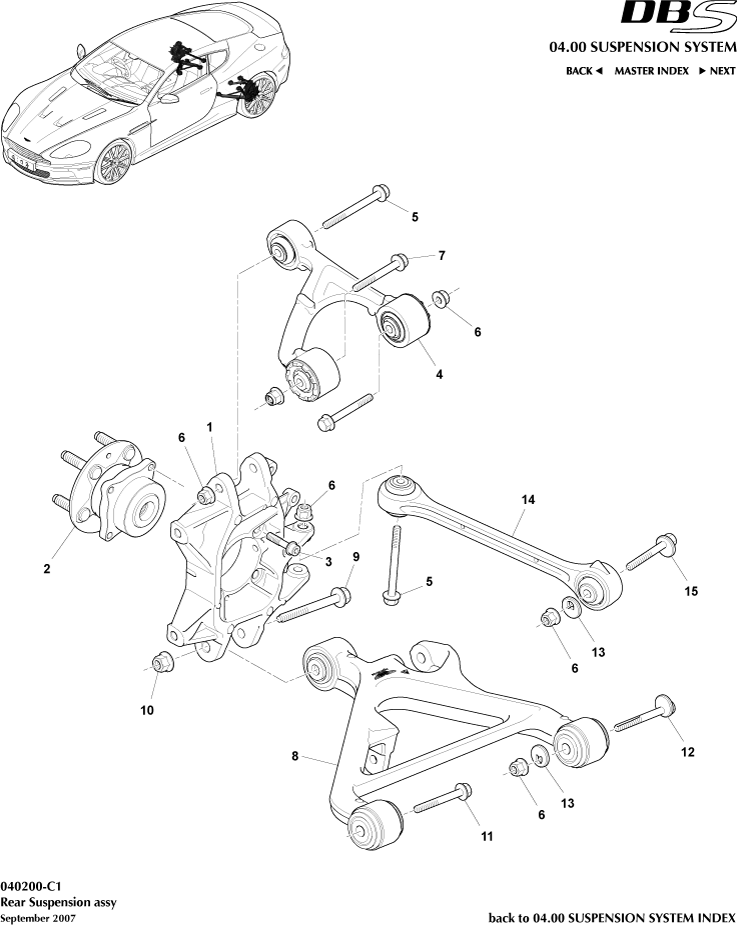

Aston Martin GT DBS (2007-2012) - Rear Suspension Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D335A971AB	KNUCKLE - REAR WHEEL LH	8D335A971AB KNUCKLE - REAR WHEEL LH -	-	1	Enquire
-	8D335K743AB	ARM & BUSHING REAR SUSPENSION UPPER LH	8D335K743AB ARM & BUSHING REAR SUSPENSION UPPER LH -	-	1	Enquire
-	6G335B531AC	ARM & BUSH ASSY REAR	6G335B531AC ARM & BUSH ASSY REAR -	-	1	Enquire
1	8D335A970AB	KNUCKLE - REAR WHEEL RH	8D335A970AB KNUCKLE - REAR WHEEL RH -	-	1	Enquire
2	4G432B663AC	HB & BRG ASY FRT BRK	4G432B663AC HB & BRG ASY FRT BRK -	-	2	Enquire
3	4G430783AA	BOLT M10X55.1.25 GRD	4G430783AA BOLT M10X55.1.25 GRD -	-	8	Enquire
4	8D335K742AB	ARM & BUSHING ASSY REAR SUSPENSION UPPER RH	8D335K742AB ARM & BUSHING ASSY REAR SUSPENSION UPPER RH -	-	1	Enquire
5	703564	BOLT-M12x110 HEXFL10	703564 BOLT-M12x110 HEXFL10 -	-	4	Enquire
6	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE -	-	12	Enquire
7	703181	BOLT M12 X 85 HEX FLANGE CHROME FREE	703181 BOLT M12 X 85 HEX FLANGE CHROME FREE -	-	4	Enquire
8	6G335B530AC	ARM & BSHG ASY-RR LW	6G335B530AC ARM & BSHG ASY-RR LW -	-	1	Enquire
9	703133	BOLT M14 X 110 HEX FLANGE CHROME FREE	703133 BOLT M14 X 110 HEX FLANGE CHROME FREE -	-	2	Enquire
10	701337	NUT M14 HEX FLG P/T	701337 NUT M14 HEX FLG P/T -	-	2	Enquire
11	703180	BOLT M12 x 90 HEX FLNG 10 CHROME FREE	703180 BOLT M12 x 90 HEX FLNG 10 CHROME FREE -	-	2	Enquire
12	703274	Bolt, M12, Eccentric	703274 Bolt, M12, Eccentric -	-	2	Enquire
13	4G432610840	Washer, M12, Eccentric	4G432610840 Washer, M12, Eccentric -	-	4	Enquire
14	4G435B551AA	Toe Control Arm Rear Right	4G435B551AA Toe Control Arm Rear Right -	-	2	Enquire
15	4G435K978AB	Bolt, M12, Eccentric	4G435K978AB Bolt, M12, Eccentric -	-	2	Enquire
