Front Suspension Assembly of Aston Martin Aston Martin GT DBS (2007-2012)

View All

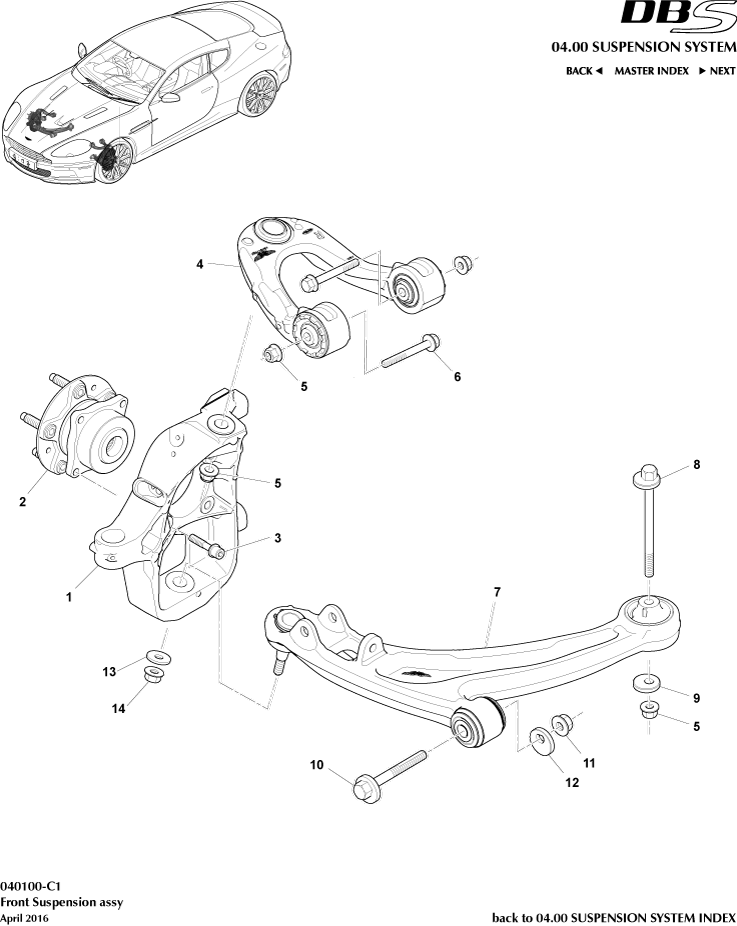

Aston Martin GT DBS (2007-2012) - Front Suspension Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D333K185AC	Knuckle Assy, Front Wheel, LH	8D333K185AC Knuckle Assy, Front Wheel, LH -	-	1	Enquire
-	8D333091AB	ARM BUSH FRT SUSPN L	8D333091AB ARM BUSH FRT SUSPN L -	-	1	Enquire
-	8D333A053AC	FRONT SUSPENSION LOWER ARM LH	8D333A053AC FRONT SUSPENSION LOWER ARM LH -	-	1	Enquire
1	8D333K186AC	Knuckle Assy, Front Wheel, RH	8D333K186AC Knuckle Assy, Front Wheel, RH -	-	1	Enquire
2	4G432B663AD	HUB & BEARING ASSEMBLY, FRONT	4G432B663AD HUB & BEARING ASSEMBLY, FRONT -	-	2	Enquire
3	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5) Bearing to Knuckle	-	8	Enquire
4	8D333084AB	ARM BUSH ASY SUSP RH	8D333084AB ARM BUSH ASY SUSP RH -	-	1	Enquire
5	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE -	-	8	Enquire
6	703180	BOLT M12 x 90 HEX FLNG 10 CHROME FREE	703180 BOLT M12 x 90 HEX FLNG 10 CHROME FREE -	-	4	Enquire
7	8D333A052AC	ARM & BSHG ASSY FRONT SUSPENSION LOWER RH	8D333A052AC ARM & BSHG ASSY FRONT SUSPENSION LOWER RH -	-	1	Enquire
8	4G433B236BB	Bolt M12 Eccentric Front	4G433B236BB Bolt M12 Eccentric Front -	-	2	Enquire
9	4G433B237BB	Washer, M12, Eccentric	4G433B237BB Washer, M12, Eccentric -	-	2	Enquire
10	4G433B236CB	Bolt, M14, eccentric	4G433B236CB Bolt, M14, eccentric -	-	2	Enquire
11	701337PK	Nut-M14 Hex Flange P/T PLAS 10 Pack of 10	701337PK Nut-M14 Hex Flange P/T PLAS 10 Pack of 10 -	-	2	Enquire
12	4G433B237CA	Washer, M14 eccentric	4G433B237CA Washer, M14 eccentric -	-	2	Enquire
13	GG3339078AA	WSHR-37.75 od x 13.4	GG3339078AA WSHR-37.75 od x 13.4 -	-	2	Enquire
14	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE -	-	2	Enquire
