Rear Wheels & Tyres of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Rear Wheels & Tyres

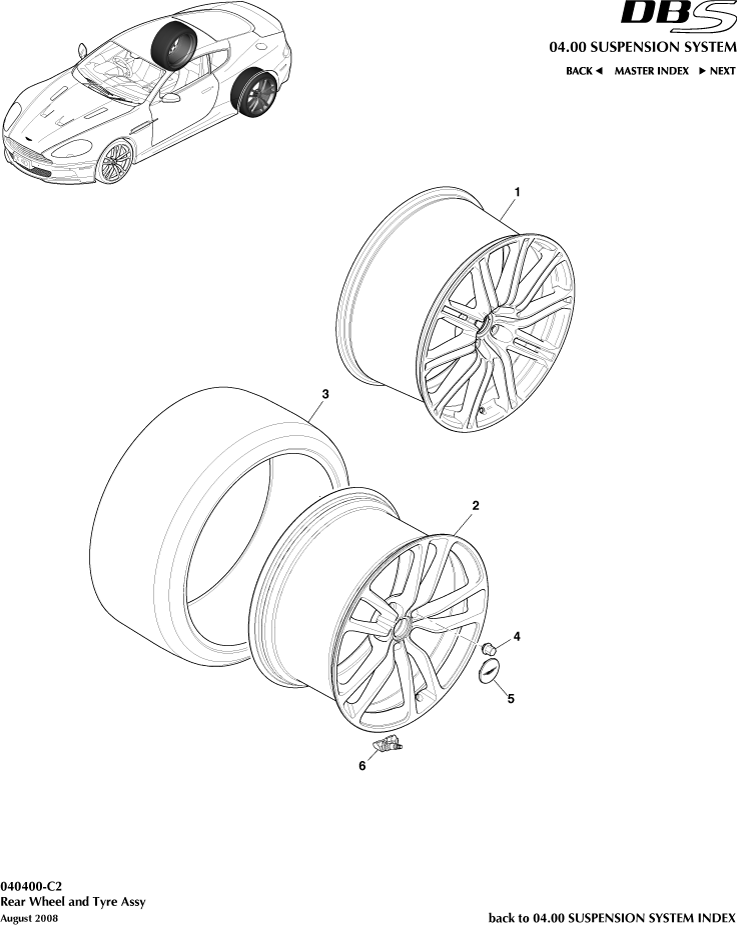

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D331007IC	RR WHL GRAPHITE-20in	8D331007IC RR WHL GRAPHITE-20in Graphite	-	2	Enquire
-	9D331007DA	RR WHL GRAPHITE-20in	9D331007DA RR WHL GRAPHITE-20in Graphite, optional (introduced 09MY)	-	2	Enquire
-	BD331007FA	WHEEL REAR-20inch DIAMOND TURNED BLACK	BD331007FA WHEEL REAR-20inch DIAMOND TURNED BLACK Carbon Edition	-	2	Enquire
-	CD339965GJA	WHEEL REAR 20 inch REV DIAMOND TURNED BLACK	CD339965GJA WHEEL REAR 20 inch REV DIAMOND TURNED BLACK Carbon Edition	-	2	Enquire
-	CD339965GKA	WHEEL REAR 20 inch BLACK	CD339965GKA WHEEL REAR 20 inch BLACK Carbon Edition	-	2	Enquire
-	8D331508DA	Road Tyre, Winter Rear, 295/30 R20	8D331508DA Road Tyre, Winter Rear, 295/30 R20 -	-	2	Enquire
-	CD23360671CA	TPMS Valve and Transmitter	CD23360671CA TPMS Valve and Transmitter From 11MY, 433Mhz	-	2	Enquire
-	CD23360671DA	TPMS Valve and Transmitter Assy	CD23360671DA TPMS Valve and Transmitter Assy From 11MY, 315Mhz	-	2	Enquire
-	CD23360671CAPK	TPMS TRANS ASSY (4)	CD23360671CAPK TPMS TRANS ASSY (4) From 11MY, 433Mhz. Pack of 4	-	1	Enquire
-	CD23360671DAPK	TPMS TRANS ASSY (4)	CD23360671DAPK TPMS TRANS ASSY (4) From 11MY, 315Mhz. Pack of 4	-	1	Enquire
-	1R123610555	TRANSMITTER DUST CAP SILVER	1R123610555 TRANSMITTER DUST CAP SILVER -	-	2	Enquire
-	3683832PK	T/VALVE-SNAP IN-SNOW WINTER WHEEL-RUBBER COVERED PACK OF 4	3683832PK T/VALVE-SNAP IN-SNOW WINTER WHEEL-RUBBER COVERED PACK OF 4 Winter Tyre only, Not TPMS. Pack of 4	-	1	Enquire
-	SY9Y2C027CA	RR WHL DISC BRK-LH	SY9Y2C027CA RR WHL DISC BRK-LH -	-	A/R	Enquire
-	8D33974747AA	WINTER TYRE LABEL	8D33974747AA WINTER TYRE LABEL -	-	1	Enquire
1	8D331007BC	REAR WHEEL-20 inch SILVER	8D331007BC REAR WHEEL-20 inch SILVER Silver	-	2	Enquire
2	9D331007BA	RR WHL SILVER-20in	9D331007BA RR WHL SILVER-20in Silver, optional (introduced 09MY)	-	2	Enquire
3	8D331508BA	RD TYRE RR-295/30x20	8D331508BA RD TYRE RR-295/30x20 -	-	2	Enquire
4	4G431K024BB	NUT-WHL BLT	4G431K024BB NUT-WHL BLT -	-	10	Enquire
6	CG33360671AA	TPMS Valve Service	CG33360671AA TPMS Valve Service Up To 11MY	-	2	Enquire
