Parking Brake - Manual Rhd

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Parking Brake - MANUAL RHD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G433011504 Handbrake Lever Assembly, RHD $328.18 To Order
Photo Part No Description Price (each) Stock
3784688 Switch, Handbrake $351.69 IN STOCK
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.29 IN STOCK
Photo Part No Description Price (each) Stock
8D332853AB Cable and Conduit $372.45 IN STOCK
Photo Part No Description Price (each) Stock
6G33439136AA Trunnion, Handbrake Cable $2.34 To Order
Photo Part No Description Price (each) Stock
7G432K605AA Pin, Pivot Cable, Handbrake $2.07 To Order
Photo Part No Description Price (each) Stock
8G432442AA Spring Clip, Handbrake $2.44 To Order
Photo Part No Description Price (each) Stock
8G4310400AA Washer, Wave Spring, Handbrake $0.25 To Order
Photo Part No Description Price (each) Stock
AD232C464BB Caliper, Handbrake, RH $672.88 To Order
Photo Part No Description Price (each) Stock
4G432C564CA Bolt M10x87 Hex flange, secures EPB $3.17 IN STOCK
Photo Part No Description Price (each) Stock
4G432C562BB PADS HANDBRAKE $181.75 IN STOCK
Photo Part No Description Price (each) Stock
694891 P-CLIP $4.08 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.21 IN STOCK
Photo Part No Description Price (each) Stock
703163 Nut, M6, Hex Flange Head, Locking $0.12 IN STOCK
Photo Part No Description Price (each) Stock
4G43L20222AA Small Seal Patch for Door Mod $0.48 To Order
Photo Part No Description Price (each) Stock
4G432A686BB Bracket Assembly, Handbrake Lever, RHD $897.20 To Order
View All

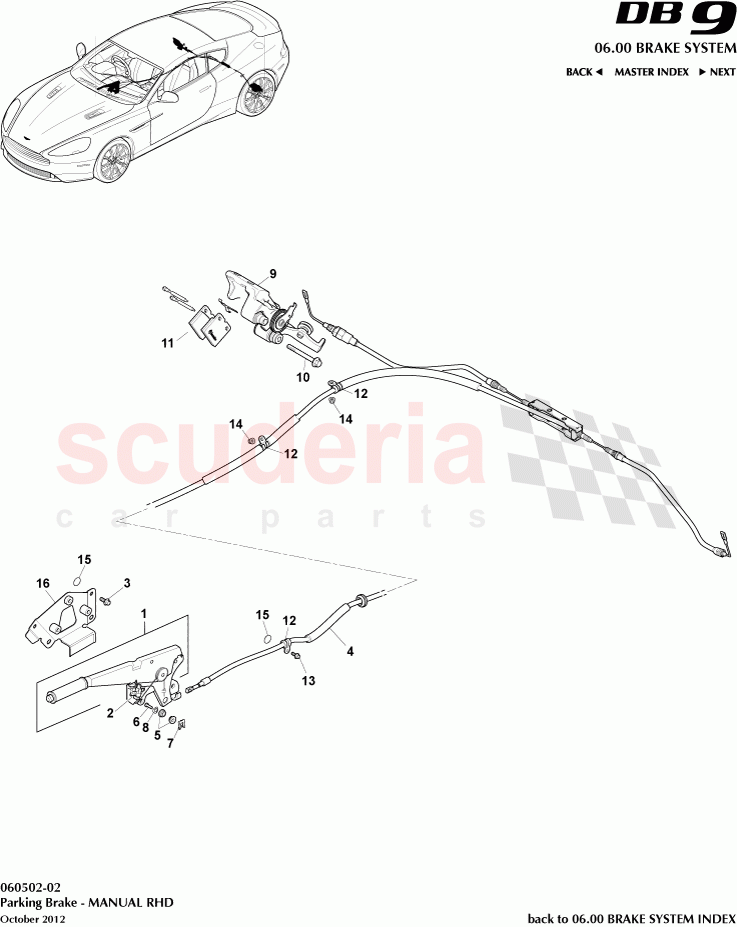

Parking Brake - MANUAL RHD of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- AD232C465BB
Caliper, Handbrake, LH
Excludes Pads 		$672.88 1
- 8D332B296BA
KIT PARK BRAKE PAD SPRING AND PIN PER CALIPER
1 Per Caliper 		$61.42 1
- 4G432W065AA
BOOT - SLIDING PIN 		$49.60 4
- 4G43224259BA
SPRING - ANTI RATTLE HANDBRAKE CAL RH
IN STOCK 		$71.07 2
- 4G432273AA
BLACK TPR BODY PLUG 25mm 		$2.18 1
1 4G433011504
Handbrake Lever Assembly, RHD 		$328.18 1
2 3784688
Switch, Handbrake
IN STOCK 		$351.69 1
3 703121
Screw, M8 x 25, Hex Flange Head
IN STOCK 		$0.29 6
4 8D332853AB
Cable and Conduit
IN STOCK 		$372.45 1
5 6G33439136AA
Trunnion, Handbrake Cable 		$2.34 2
6 7G432K605AA
Pin, Pivot Cable, Handbrake 		$2.07 1
7 8G432442AA
Spring Clip, Handbrake 		$2.44 1
8 8G4310400AA
Washer, Wave Spring, Handbrake 		$0.25 1
9 AD232C464BB
Caliper, Handbrake, RH
Excludes Pads 		$672.88 1
10 4G432C564CA
Bolt M10x87 Hex flange, secures EPB
IN STOCK 		$3.17 4
11 4G432C562BB
PADS HANDBRAKE
Excludes Pins & Anti Rattle Springs
IN STOCK 		$181.75 1
12 694891
P-CLIP 		$4.08 3
13 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.21 1
14 703163
Nut, M6, Hex Flange Head, Locking
IN STOCK 		$0.12 2
15 4G43L20222AA
Small Seal Patch for Door Mod 		$0.48 5
16 4G432A686BB
Bracket Assembly, Handbrake Lever, RHD 		$897.20 1
