Rear Brake Disc Assembly of Aston Martin Aston Martin DB9 (2013-2016)

View All

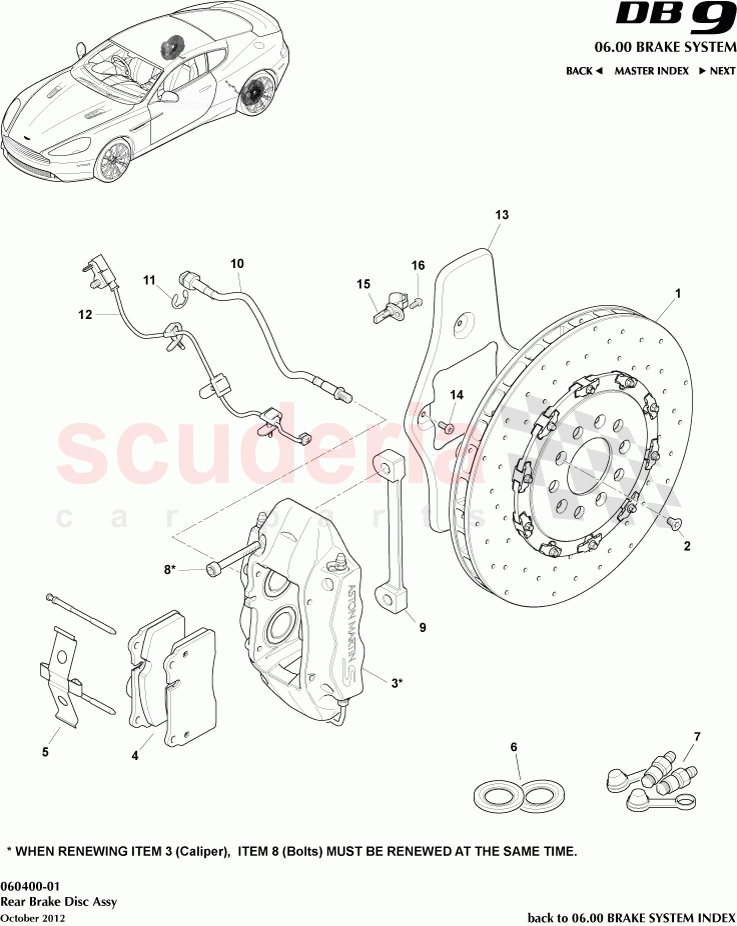

Aston Martin DB9 (2013-2016) - Rear Brake Disc Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ED232810108	BR DISC &PADS SET-RR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD232C465AB	CALIPER ASSY REAR LH GREY W/O PADS INC BOLTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332C562BB	BRAKE PAD KIT REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332C588BA	KIT PAD SPRING AND PIN REAR (PER CALIPER)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4332610AA	Kit, Dust Boot, Rear Caliper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432C563AA	Kit, Bleed Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332C564AA	Brake Bolt, M12 x 95, Caliper to Knuckle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332B128AB	Spacer, caliper to knuckle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332282AC	Hose, Rear Wheel Brake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33JYC10088AB	E Clip Bowed, Nom 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332D009AB	Pad Wear Lead, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332C029AA	SHIELD - REAR BRAKE DISC LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313D026AA	Screw, retaining disc shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439010039	Sensor, Wheel Speed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313D026BA	Screw, wheel speed sensor	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD232C465CB	CALIPER ASSY REAR LH BLACK W/O PADS INC BOLTS	AD232C465CB CALIPER ASSY REAR LH BLACK W/O PADS INC BOLTS Black	-	1	Enquire
-	AD232C465DA	CALIPER ASSY REAR LH RED W/O PADS INC BOLTS	AD232C465DA CALIPER ASSY REAR LH RED W/O PADS INC BOLTS Red	-	1	Enquire
-	AD232C465FA	CALIPER ASSY RR LH YELLOW W/O PADS INC BOLTS	AD232C465FA CALIPER ASSY RR LH YELLOW W/O PADS INC BOLTS Yellow	-	1	Enquire
-	AD232C465HA	Caliper Assy, Rear, No Pads, LH, Inc Bolts	AD232C465HA Caliper Assy, Rear, No Pads, LH, Inc Bolts Gold	-	1	Enquire
-	AD232C464AB	CALIPER ASSY REAR RH GREY W/O PADS INC BOLTS	AD232C464AB CALIPER ASSY REAR RH GREY W/O PADS INC BOLTS Grey	-	1	Enquire
-	AD232C464CB	CALIPER ASSY REAR RH BLACK W/O PADS INC BOLTS	AD232C464CB CALIPER ASSY REAR RH BLACK W/O PADS INC BOLTS Black	-	1	Enquire
-	AD232C464DA	CALIPER ASSY REAR RH RED W/O PADS INC INC BOLTS	AD232C464DA CALIPER ASSY REAR RH RED W/O PADS INC INC BOLTS Red	-	1	Enquire
-	AD232C464FA	Caliper Assy, Rear, No Pads, RH, Inc Bolts	AD232C464FA Caliper Assy, Rear, No Pads, RH, Inc Bolts Yellow	-	1	Enquire
-	AD232C464HA	Caliper Assy, Rear, No Pads, RH, Inc Bolts	AD232C464HA Caliper Assy, Rear, No Pads, RH, Inc Bolts Gold	-	1	Enquire
-	4G4333693AA	Cap, Bleed Screw	4G4333693AA Cap, Bleed Screw Per caliper	-	1	Enquire
-	8D332C028AA	SHIELD - REAR BRAKE DISC RH	8D332C028AA SHIELD - REAR BRAKE DISC RH	-	1	Enquire
1	ED232810108	BR DISC &PADS SET-RR	ED232810108 BR DISC &PADS SET-RR	-	2	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk	-	4	Enquire
3	AD232C465AB	CALIPER ASSY REAR LH GREY W/O PADS INC BOLTS	AD232C465AB CALIPER ASSY REAR LH GREY W/O PADS INC BOLTS Grey	-	1	Enquire
4	8D332C562BB	BRAKE PAD KIT REAR	8D332C562BB BRAKE PAD KIT REAR Per axle set	-	1	Enquire
5	8D332C588BA	KIT PAD SPRING AND PIN REAR (PER CALIPER)	8D332C588BA KIT PAD SPRING AND PIN REAR (PER CALIPER) Per caliper	-	1	Enquire
6	4G4332610AA	Kit, Dust Boot, Rear Caliper	4G4332610AA Kit, Dust Boot, Rear Caliper Per caliper	-	1	Enquire
7	4G432C563AA	Kit, Bleed Screw	4G432C563AA Kit, Bleed Screw Per caliper	-	1	Enquire
8	8D332C564AA	Brake Bolt, M12 x 95, Caliper to Knuckle	8D332C564AA Brake Bolt, M12 x 95, Caliper to Knuckle	-	4	Enquire
9	8D332B128AB	Spacer, caliper to knuckle	8D332B128AB Spacer, caliper to knuckle	-	2	Enquire
10	6G332282AC	Hose, Rear Wheel Brake	6G332282AC Hose, Rear Wheel Brake	-	2	Enquire
11	6G33JYC10088AB	E Clip Bowed, Nom 16mm	6G33JYC10088AB E Clip Bowed, Nom 16mm	-	2	Enquire
12	6G332D009AB	Pad Wear Lead, Rear	6G332D009AB Pad Wear Lead, Rear	-	2	Enquire
13	8D332C029AA	SHIELD - REAR BRAKE DISC LH	8D332C029AA SHIELD - REAR BRAKE DISC LH	-	1	Enquire
14	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield	-	8	Enquire
15	4G439010039	Sensor, Wheel Speed	4G439010039 Sensor, Wheel Speed	-	2	Enquire
16	4G4313D026BA	Screw, wheel speed sensor	4G4313D026BA Screw, wheel speed sensor	-	2	Enquire
