Aston Martin DB9 (2013-2016) - Front Brake Disc Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ED231125CA DSC FRT WHL BRK $7,240.63 To Order
Photo Part No Description Price (each) Stock
4G432N389AA Screw, M8 x 14, Flat Head Countersunk $0.29 To Order
Photo Part No Description Price (each) Stock
8D332D007BB BRAKE PAD KIT FRONT $1,817.10 To Order
Photo Part No Description Price (each) Stock
8D332C588AA KIT PAD SPRING AND PIN FRONT (PER CALIPER) $86.01 To Order
Photo Part No Description Price (each) Stock
8D3332180AA KIT DUST BOOT FRONT (PER CALIPER) $64.70 To Order
Photo Part No Description Price (each) Stock
4G432C563AA Kit, Bleed Screw $17.78 To Order
Photo Part No Description Price (each) Stock
8D332K005AC Shield, Front Brake Disc, LH $199.75 To Order
Photo Part No Description Price (each) Stock
4G4313D026AA Screw, retaining disc shield $0.66 To Order
Photo Part No Description Price (each) Stock
8D332L507AA Pad Wear Lead, Front $70.21 To Order
Photo Part No Description Price (each) Stock
4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) $69.55 To Order
Photo Part No Description Price (each) Stock
AD432078AD Hose, Brake, Front LH $241.67 To Order
Photo Part No Description Price (each) Stock
4G439010039 Sensor, Wheel Speed $171.12 To Order
Photo Part No Description Price (each) Stock
4G4313D026BA Screw, wheel speed sensor $1.27 To Order
View All

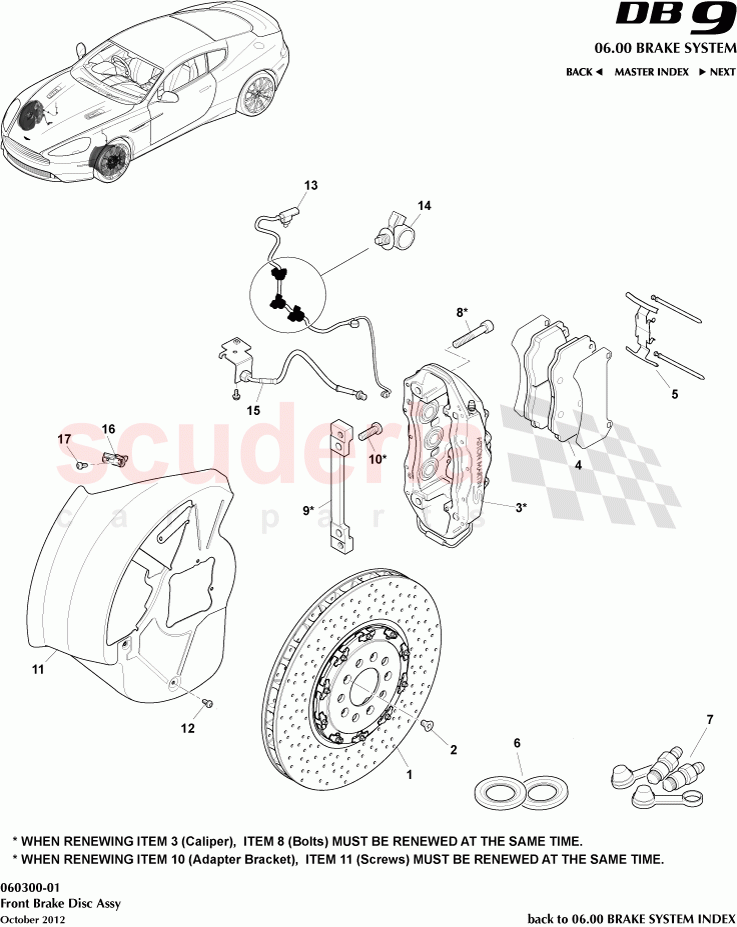

Front Brake Disc Assembly of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- AD232C463CB
CALIPER ASSY FRONT LH BLACK W/O PADS INC BOLTS
-Black 		$1,276.24 1
- AD232C463DA
CALIPER ASSY FRONT LH RED W/O PADS INC BOLTS
-Red 		$1,306.21 1
- AD232C463FA
CALIPER ASSY FRONT LH YELLOW W/O PADS INC BOLTS
-Yellow 		$1,306.21 1
- AD232C463HA
Caliper Assy, Front, No pads, Inc Bolts - LH
-Gold 		$1,306.21 1
- AD232C462AA
CALIPER ASSY FRONT RH GREY W/O PADS INC BOLTS
-Grey 		$1,306.21 1
- AD232C462CB
CALIPER ASSY FRONT RH BLACK W/O PADS INC BOLTS
-Black 		$1,251.80 1
- AD232C462DA
CALIPER ASSY FRONT RH RED W/O PADS INC BOLTS
-Red 		$1,306.21 1
- AD232C462FA
CALIPER ASSY FRONT RH YELLOW W/O PADS INC BOLTS
-Yellow 		$1,306.21 1
- AD232C462HA
Caliper Assy, Front, No pads, Inc Bolts - RH
-Gold 		$1,306.21 1
- 4G4333693AA
Cap, Bleed Screw
Per Caliper 		$29.22 1
- 8D332K004AC
SHIELD - FRONT BRAKE DISC RH 		$199.75 1
- AD432078BD
Hose, Brake, Front, RH 		$137.32 1
- 4G432078AD
Hose Assembly, Front Wheel Brake, LH
Sports Pack Only 		$439.21 1
1 ED231125CA
DSC FRT WHL BRK 		$7,240.63 2
2 4G432N389AA
Screw, M8 x 14, Flat Head Countersunk 		$0.29 4
3* AD232C463AA
CALIPER ASSY FRONT LH GREY W/O PADS INC BOLTS
-Grey 		$1,306.21 1
4 8D332D007BB
BRAKE PAD KIT FRONT
Per Axle Set 		$1,817.10 1
5 8D332C588AA
KIT PAD SPRING AND PIN FRONT (PER CALIPER)
Per Caliper 		$86.01 1
6 8D3332180AA
KIT DUST BOOT FRONT (PER CALIPER)
Per Caliper 		$64.70 1
7 4G432C563AA
Kit, Bleed Screw
Per Caliper 		$17.78 1
8* 8D33CD60AA
Bolt, Caliper to Adaptor Bracket 		$9.84 4
9* ED232D204AB
Adapter Bracket, Front Caliper 		$966.02 2
10* 8D33YA64AA
BOLT - ADAPTOR BRACKET TO KNUCKLE 		$9.57 4
11 8D332K005AC
Shield, Front Brake Disc, LH 		$199.75 1
12 4G4313D026AA
Screw, retaining disc shield 		$0.66 8
13 8D332L507AA
Pad Wear Lead, Front 		$70.21 2
14 4G436510059PK
Firtree Clip, for pad wear lead (Pack of 100) 		$69.55 6
15 AD432078AD
Hose, Brake, Front LH 		$241.67 1
16 4G439010039
Sensor, Wheel Speed 		$171.12 2
17 4G4313D026BA
Screw, wheel speed sensor 		$1.27 2
