Rear Wheel and Tyre Assembly of Aston Martin Aston Martin DB9 (2013-2016)

View All

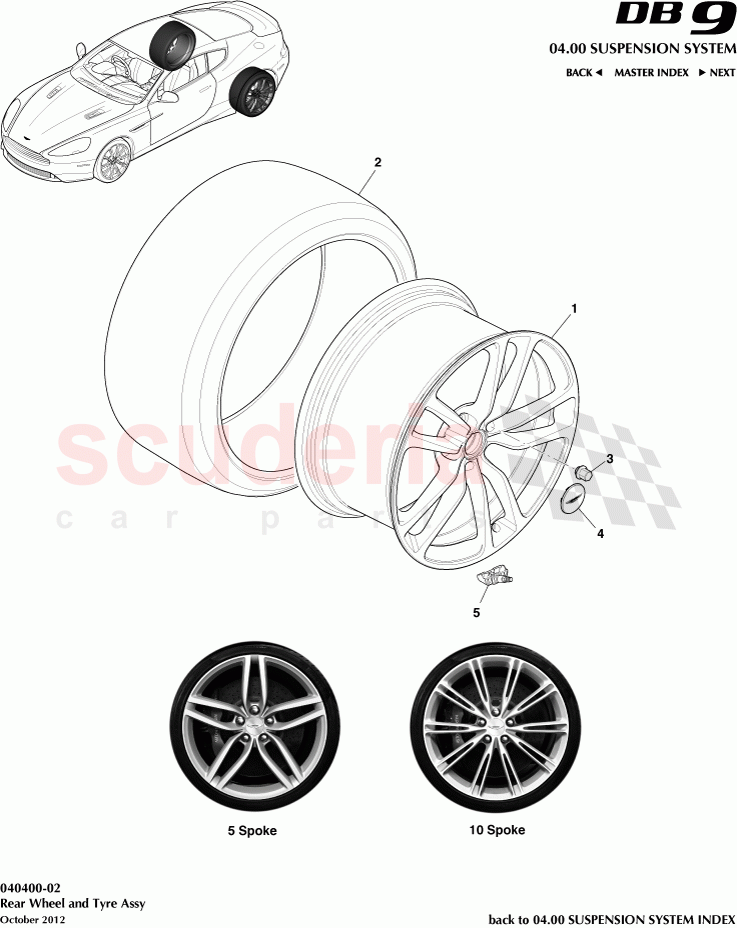

Aston Martin DB9 (2013-2016) - Rear Wheel and Tyre Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG439965GBA	Wheel, Rear-20 inch-5 Spoke CFF Graphite DT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FG431508BA	RD TYRE RR-295/30X20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431K024BD	Nut, Wheel, M14 x 2.0	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	HY531A096BAPK	Badge Wheel Centre (Pack of 4)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33360671AA	Transmitter, Valve (433MHZ)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG439965GDB	Wheel, Rear-20 inch-10 Spoke Forged Silver DT	CG439965GDB Wheel, Rear-20 inch-10 Spoke Forged Silver DT	-	2	Enquire
-	CG439965GEB	Wheel, Rear-20 inch-10 Spoke Forged Graphite DT	CG439965GEB Wheel, Rear-20 inch-10 Spoke Forged Graphite DT	-	2	Enquire
-	CG439965GFB	Wheel, Rear-20 inch-10 Spoke Forged Liquid Silver	CG439965GFB Wheel, Rear-20 inch-10 Spoke Forged Liquid Silver	-	2	Enquire
-	CG439965GGA	Wheel, Rear-20 inch-5 Spoke CFF Silver	CG439965GGA Wheel, Rear-20 inch-5 Spoke CFF Silver	-	2	Enquire
-	CG439965GKB	Wheel, Rear-20 inch-10 Spoke Forged Satin Black DT	CG439965GKB Wheel, Rear-20 inch-10 Spoke Forged Satin Black DT	-	2	Enquire
-	CG439965GLB	Wheel, Rear-20 inch- Forged Gloss Black	CG439965GLB Wheel, Rear-20 inch- Forged Gloss Black	-	2	Enquire
-	8D331508DA	Road Tyre, Winter Rear, 295/30 R20	8D331508DA Road Tyre, Winter Rear, 295/30 R20	-	2	Enquire

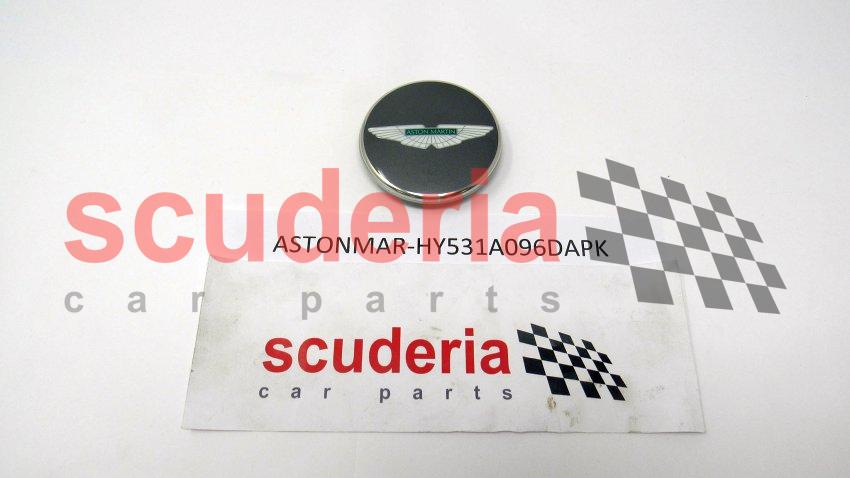

-	HY531A096DAPK	Badge - Wheel Centre (Pack of 4)	HY531A096DAPK Badge - Wheel Centre (Pack of 4) 4 Per Pack	-	2	Enquire
-	HY531A096AAPK	BADGE WHEEL CENTRE (PACK of 4)	HY531A096AAPK BADGE WHEEL CENTRE (PACK of 4)	-	2	Enquire
-	BG33360671BA	Transmitter, Valve (315MHZ)	BG33360671BA Transmitter, Valve (315MHZ) 315MHZ	-	1	Enquire
-	AY2Y1040AA	Weight, Counter Balance, 5 Grams	AY2Y1040AA Weight, Counter Balance, 5 Grams 5 Grams	-	A/R	Enquire
-	CG43974747AA	Label, Winter Tyre, Maximum Speeds When Fitted	CG43974747AA Label, Winter Tyre, Maximum Speeds When Fitted	-	1	Enquire
1	CG439965GBA	Wheel, Rear-20 inch-5 Spoke CFF Graphite DT	CG439965GBA Wheel, Rear-20 inch-5 Spoke CFF Graphite DT	-	2	Enquire
2	FG431508BA	RD TYRE RR-295/30X20	FG431508BA RD TYRE RR-295/30X20	-	2	Enquire
3	4G431K024BD	Nut, Wheel, M14 x 2.0 ARRIVING SOON	4G431K024BD Nut, Wheel, M14 x 2.0 ARRIVING SOON	-	10	Enquire

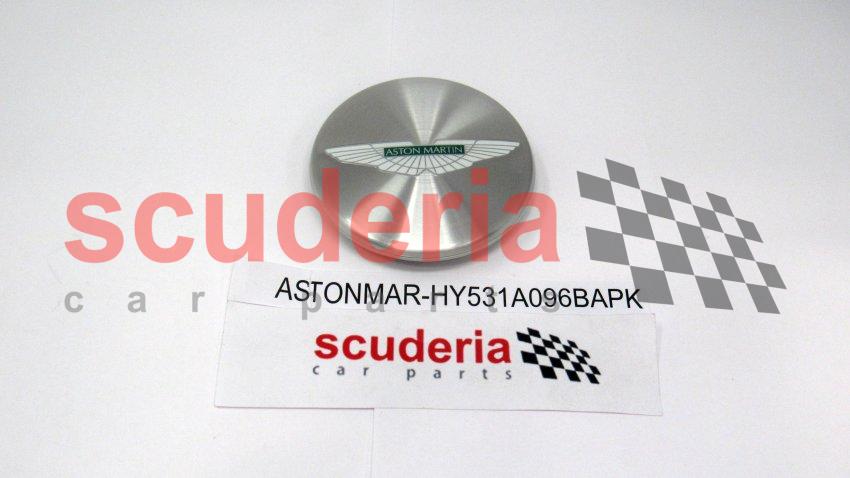

4	HY531A096BAPK	Badge Wheel Centre (Pack of 4)	HY531A096BAPK Badge Wheel Centre (Pack of 4) 4 Per Pack	-	2	Enquire
5	BG33360671AA	Transmitter, Valve (433MHZ)	BG33360671AA Transmitter, Valve (433MHZ) 433MHZ	-	1	Enquire
