Name: Rear Suspension Assembly
Rating: 5.0 (1 reviews)

Rear Suspension Assembly of Aston Martin Aston Martin DB9 (2013-2016)

View All

Aston Martin DB9 (2013-2016) - Rear Suspension Assembly

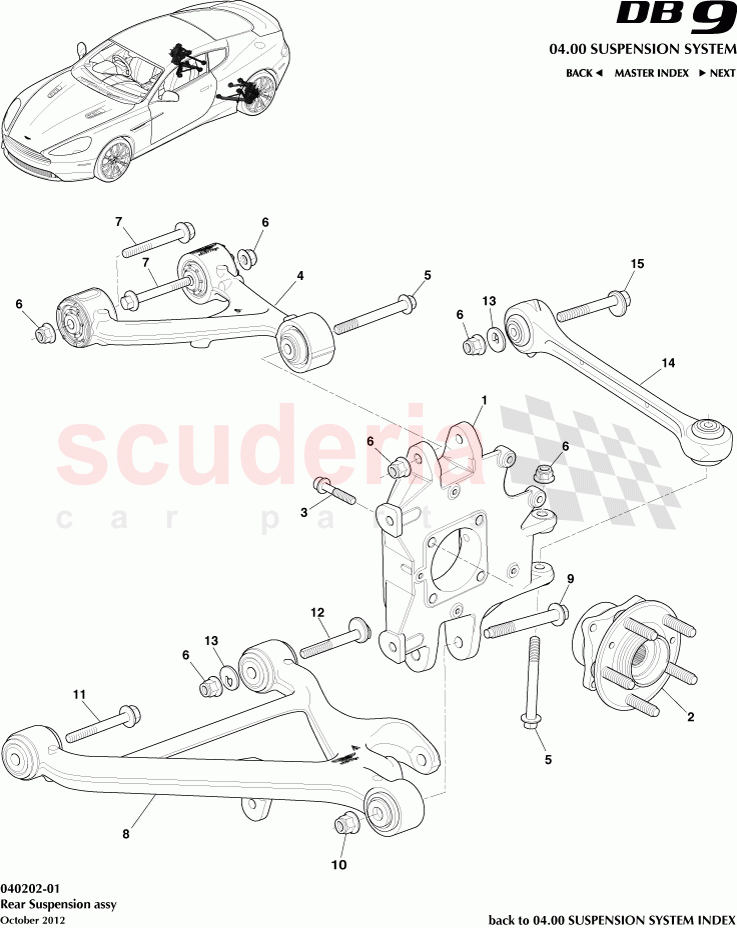

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD235A971AA	Knuckle, Rear Wheel, LH	$1,908.33	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432B663AD	HUB & BEARING ASSEMBLY, FRONT	$588.48	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	$27.31	To Order

Photo	Part No	Description	Price (each)	Stock
	CD335K743AB	Arm Assy, Rear Suspension, Upper	$642.52	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33487029AA	Bolt, M12 x 110, Hex Flange Head	$9.77	To Order

Photo	Part No	Description	Price (each)	Stock
	703565	NUT-M12 HEX FLANGE	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	703181	BOLT M12 X 85 HEX FLANGE CHROME FREE	$12.48	To Order

Photo	Part No	Description	Price (each)	Stock
	DG435B531AB	ARM & BUSH ASSY REAR	$695.50	To Order

Photo	Part No	Description	Price (each)	Stock
	703133	BOLT M14 X 110 HEX FLANGE CHROME FREE	$21.66	To Order

Photo	Part No	Description	Price (each)	Stock
	704596	Nut, M14, Hex Flange Head	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4308024AA	BOLT M12 X 90 HEXAGON HEAD FLANGED	$6.69	To Order

Photo	Part No	Description	Price (each)	Stock
	703274	Bolt, M12, Eccentric	$47.10	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432610840	Washer, M12, Eccentric	$56.46	To Order

Photo	Part No	Description	Price (each)	Stock
	BG435B551AA	Arm Assy, Rear Toe Control	$310.38	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435K978AB	Bolt, M12, Eccentric	$45.41	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	AD235A970AA	KNUCKLE - REAR WHEEL RH	AD235A970AA KNUCKLE - REAR WHEEL RH	$1,908.33	1
-	DG435B530AB	ARM & BUSH ASSY RR	DG435B530AB ARM & BUSH ASSY RR	$709.43	1
1	AD235A971AA	Knuckle, Rear Wheel, LH	AD235A971AA Knuckle, Rear Wheel, LH	$1,908.33	1
2	4G432B663AD	HUB & BEARING ASSEMBLY, FRONT	4G432B663AD HUB & BEARING ASSEMBLY, FRONT	$588.48	2
3	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5) 5 Per Pack	$27.31	8
4	CD335K743AB	Arm Assy, Rear Suspension, Upper	CD335K743AB Arm Assy, Rear Suspension, Upper	$642.52	2
5	AD33487029AA	Bolt, M12 x 110, Hex Flange Head	AD33487029AA Bolt, M12 x 110, Hex Flange Head	$9.77	4
6	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE	$1.27	12
7	703181	BOLT M12 X 85 HEX FLANGE CHROME FREE	703181 BOLT M12 X 85 HEX FLANGE CHROME FREE	$12.48	4
8	DG435B531AB	ARM & BUSH ASSY REAR	DG435B531AB ARM & BUSH ASSY REAR	$695.50	1
9	703133	BOLT M14 X 110 HEX FLANGE CHROME FREE	703133 BOLT M14 X 110 HEX FLANGE CHROME FREE	$21.66	2
10	704596	Nut, M14, Hex Flange Head	704596 Nut, M14, Hex Flange Head	$1.39	2
11	CG4308024AA	BOLT M12 X 90 HEXAGON HEAD FLANGED	CG4308024AA BOLT M12 X 90 HEXAGON HEAD FLANGED	$6.69	2
12	703274	Bolt, M12, Eccentric	703274 Bolt, M12, Eccentric	$47.10	2
13	4G432610840	Washer, M12, Eccentric	4G432610840 Washer, M12, Eccentric	$56.46	4
14	BG435B551AA	Arm Assy, Rear Toe Control	BG435B551AA Arm Assy, Rear Toe Control	$310.38	2
15	4G435K978AB	Bolt, M12, Eccentric	4G435K978AB Bolt, M12, Eccentric	$45.41	2
