Front Wheel and Tyre Assembly of Aston Martin Aston Martin DB9 (2013-2016)

View All

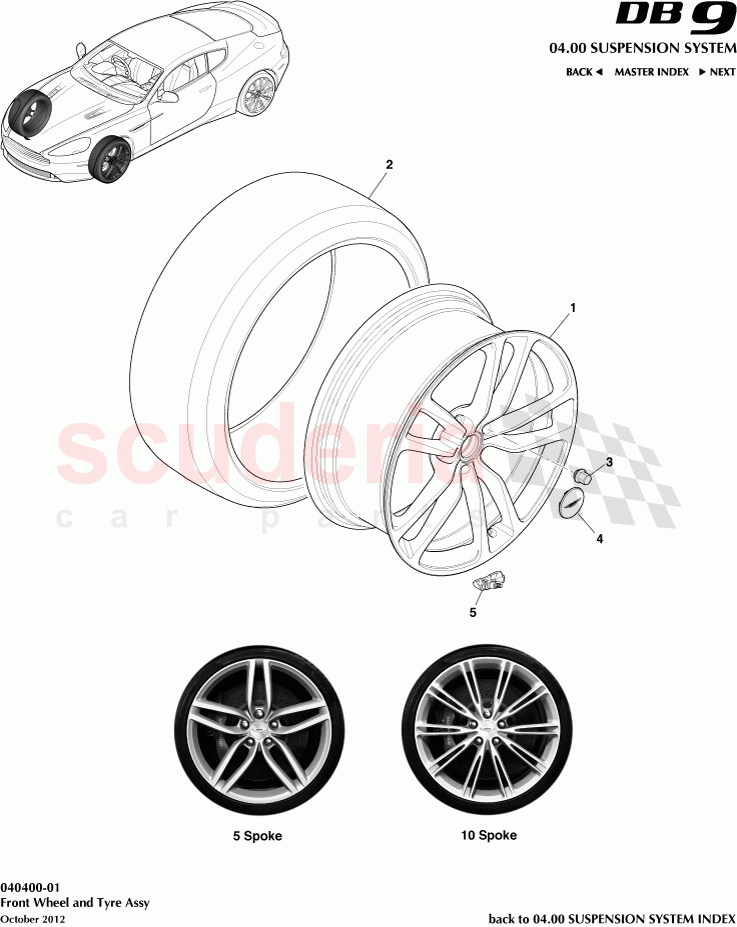

Aston Martin DB9 (2013-2016) - Front Wheel and Tyre Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG431007BA	Wheel, Front-20 inch-5 Spoke CFF Graphite DT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FG431508AA	ROAD TYRE FRONT-20in	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431K024BD	Nut, Wheel, M14 x 2.0	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	HY531A096BAPK	Badge Wheel Centre (Pack of 4)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD23360671CA	TPMS Valve and Transmitter	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG431007DB	Wheel, Front-20 inch-10 Spoke Forged Silver DT	CG431007DB Wheel, Front-20 inch-10 Spoke Forged Silver DT	-	2	Enquire
-	CG431007EB	Wheel, Front-20 inch-10 Spoke Forged Graphite DT	CG431007EB Wheel, Front-20 inch-10 Spoke Forged Graphite DT	-	2	Enquire
-	CG431007FB	Wheel, Front-20 inch-10 Spoke Forged Liquid Silver	CG431007FB Wheel, Front-20 inch-10 Spoke Forged Liquid Silver	-	2	Enquire
-	CG431007GA	Wheel, Front-20 inch-5 Spoke CFF Silver	CG431007GA Wheel, Front-20 inch-5 Spoke CFF Silver	-	2	Enquire
-	CG431007KB	Wheel, Front-20 inch-10 Spoke Forged Satin Black DT	CG431007KB Wheel, Front-20 inch-10 Spoke Forged Satin Black DT	-	2	Enquire
-	CG431007LB	Wheel, Front-20 inch-Forged Gloss Black	CG431007LB Wheel, Front-20 inch-Forged Gloss Black	-	2	Enquire
-	8D331508CA	Tyre, Road Front Winter, 245/35 R20	8D331508CA Tyre, Road Front Winter, 245/35 R20	-	2	Enquire
-	HY531A096DAPK	Badge - Wheel Centre (Pack of 4)	HY531A096DAPK Badge - Wheel Centre (Pack of 4) 4 Per Pack	-	2	Enquire
-	HY531A096AAPK	BADGE WHEEL CENTRE (PACK of 4)	HY531A096AAPK BADGE WHEEL CENTRE (PACK of 4)	-	2	Enquire
-	CD23360671DA	TPMS Valve and Transmitter Assy	CD23360671DA TPMS Valve and Transmitter Assy 315MHZ	-	1	Enquire
-	AY2Y1040AA	Weight, Counter Balance, 5 Grams	AY2Y1040AA Weight, Counter Balance, 5 Grams 5 Grams	-	A/R	Enquire
-	CG43974747AA	Label, Winter Tyre, Maximum Speeds When Fitted	CG43974747AA Label, Winter Tyre, Maximum Speeds When Fitted	-	1	Enquire
1	CG431007BA	Wheel, Front-20 inch-5 Spoke CFF Graphite DT	CG431007BA Wheel, Front-20 inch-5 Spoke CFF Graphite DT	-	2	Enquire
2	FG431508AA	ROAD TYRE FRONT-20in	FG431508AA ROAD TYRE FRONT-20in	-	2	Enquire
3	4G431K024BD	Nut, Wheel, M14 x 2.0 ARRIVING SOON	4G431K024BD Nut, Wheel, M14 x 2.0 ARRIVING SOON	-	10	Enquire
4	HY531A096BAPK	Badge Wheel Centre (Pack of 4)	HY531A096BAPK Badge Wheel Centre (Pack of 4) 4 Per Pack	-	2	Enquire
5	CD23360671CA	TPMS Valve and Transmitter	CD23360671CA TPMS Valve and Transmitter 433MHZ	-	1	Enquire
