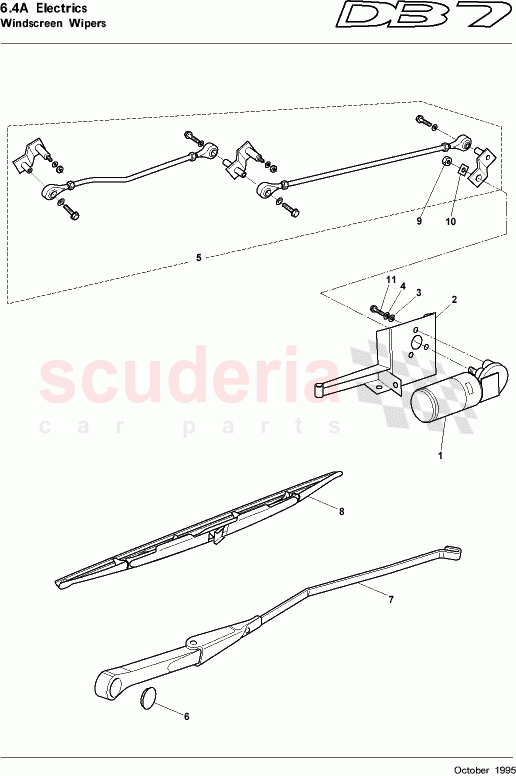

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3782030	ASSY W/SCREEN WIPER ROD & SPINDLE RHD	Enquire	To Order
	3782031	ASSY W/SCREEN WIPER ROD & SPINDLE LHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	697446	BOLT M6 x 22	697446 BOLT M6 x 22 Supplied as part of motor	-	3	Enquire
-	3381094	Strip, Edge Protection, 65mm	3381094 Strip, Edge Protection, 65mm	-	2	Enquire
-	3786186	EDGE PROTECTION STRIP (200mm)	3786186 EDGE PROTECTION STRIP (200mm)	-	2	Enquire
2	3785662	W/MTR BRKT &PLT AY R	3785662 W/MTR BRKT &PLT AY R RHD	-	1	Enquire
2	3785663	W/MTR BRKT &PLT AY L	3785663 W/MTR BRKT &PLT AY L LHD	-	1	Enquire
5	3782030	ASSY W/SCREEN WIPER ROD & SPINDLE RHD	3782030 ASSY W/SCREEN WIPER ROD & SPINDLE RHD RHD	-	1	Enquire
5	3782031	ASSY W/SCREEN WIPER ROD & SPINDLE LHD	3782031 ASSY W/SCREEN WIPER ROD & SPINDLE LHD LHD	-	1	Enquire
7	3781636	WIPER ARM PASSENGER RHD	3781636 WIPER ARM PASSENGER RHD RHD	-	1	Enquire
7	3781637	WIPER ARM PASSENGER LHD	3781637 WIPER ARM PASSENGER LHD RHD	-	1	Enquire
7	3781634	WIPER ARM DRIVER RHD	3781634 WIPER ARM DRIVER RHD RHD	-	1	Enquire
7	3781635	WIPER ARM DRIVER LHD	3781635 WIPER ARM DRIVER LHD RHD	-	1	Enquire
8	3781638	WIPER BLADE RHD	3781638 WIPER BLADE RHD RHD	-	1	Enquire
8	3781639	WIPER BLADE LHD	3781639 WIPER BLADE LHD LHD	-	1	Enquire
