Find Your Part

View All

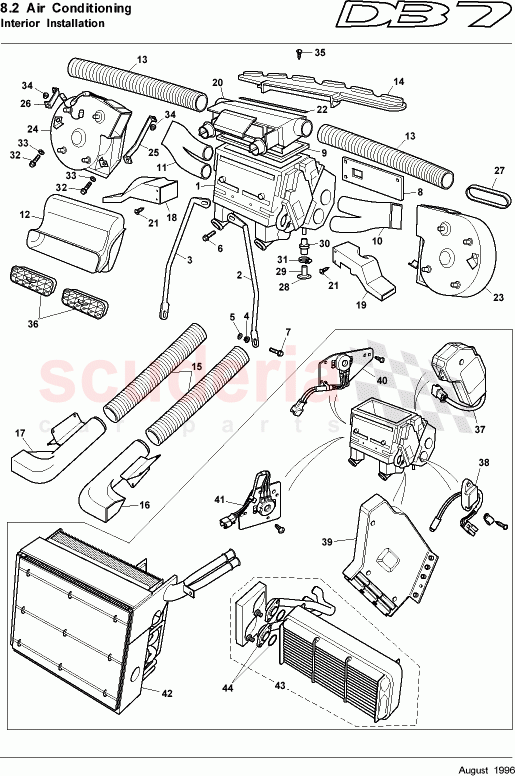

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8982224	AIRCOND UNIT ASSY- COMPLETE	$7,817.09	To Order

Photo	Part No	Description	Price (each)	Stock
	697106	SCREW M8 x 20 HEX FLANGE HD GRD 8.8	$1.89	To Order

Photo	Part No	Description	Price (each)	Stock
	8983049	SEAL-TOP DUCT	$7.93	To Order

Photo	Part No	Description	Price (each)	Stock
	8982111	DUCT - ASSY DISTRIBUTOR	$594.56	To Order

Photo	Part No	Description	Price (each)	Stock
	37123985AA	H/LAMP APERTURE FOAM	$7.67	To Order

Photo	Part No	Description	Price (each)	Stock
	8983052	VENT CENTRE	$56.54	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8982112	VACUUM MTR-FT FLAP & TOP FLAP	8982112 VACUUM MTR-FT FLAP & TOP FLAP Front flap & top flap	$105.49	2
-	3782023	Harness, security LED	3782023 Harness, security LED A/C control PCB	-	1	Enquire
-	3782024	Harness, mains supply	3782024 Harness, mains supply A/C control PCB	-	1	Enquire
-	3782025	Harness, A/C function	3782025 Harness, A/C function A/C control PCB	-	1	Enquire
-	3782026	Harness, temp demand	3782026 Harness, temp demand A/C control PCB	-	1	Enquire
-	8983126	PCB ASSY-A/COND CTRL	8983126 PCB ASSY-A/COND CTRL	$1,570.58	1
-	8972290	IN CAR SENSOR	8972290 IN CAR SENSOR	$392.09	1
-	3781997	Harness - air conditioning	3781997 Harness - air conditioning	$362.18	1
-	8985730	SWITCH-WATER TEMP	8985730 SWITCH-WATER TEMP	$95.63	1
-	8982138	ASSY SENSOR AMBIENT	8982138 ASSY SENSOR AMBIENT	$612.74	1
-	697411	Adhesive tape	697411 Adhesive tape	$13.32	1
-	697612	CABLE TIE STRAP	697612 CABLE TIE STRAP	-	10	Enquire
-	8983052	VENT CENTRE	8983052 VENT CENTRE	$56.54	2
1	8982224	AIRCOND UNIT ASSY- COMPLETE	8982224 AIRCOND UNIT ASSY- COMPLETE	$7,817.09	1
7	697106	SCREW M8 x 20 HEX FLANGE HD GRD 8.8	697106 SCREW M8 x 20 HEX FLANGE HD GRD 8.8	$1.89	2
9	8983049	SEAL-TOP DUCT	8983049 SEAL-TOP DUCT	$7.93	1
20	8982111	DUCT - ASSY DISTRIBUTOR	8982111 DUCT - ASSY DISTRIBUTOR	$594.56	1
22	37123985AA	H/LAMP APERTURE FOAM	37123985AA H/LAMP APERTURE FOAM	$7.67	60
36	8983052	VENT CENTRE	8983052 VENT CENTRE	$56.54	2
