Lamps and Bulbs of Aston Martin Aston Martin DB7 (1995)

View All

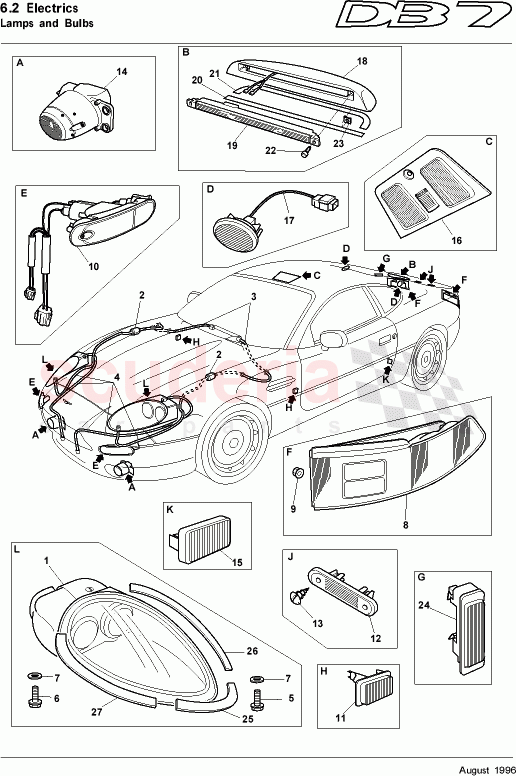

Aston Martin DB7 (1995) - Lamps and Bulbs

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3785604	LINK LEAD H/LAMP-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781216	REAR LIGHT ASSEMBLY- RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781220	FRONT SIDE AND INDICATOR LAMP-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781223	NUMBER PLATE LAMP-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781807	FRONT FOG LAMP RH- MODIFIED	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8381811B	STUD ASSY-BEIGE	8381811B STUD ASSY-BEIGE Advise trim colour required	-	1	Enquire
-	697290	PUSH ON FIXER-M3	697290 PUSH ON FIXER-M3 Interior lamp fixing	-	4	Enquire
-	697274PK	TIE STRAP(PK OF 100)	697274PK TIE STRAP(PK OF 100) Tube assy retention	-	8	Enquire
-	690370707	Bulb, 12V 5W, Capless	690370707 Bulb, 12V 5W, Capless Part of bulb kit	-	-	Enquire
-	480370840	12v 2.2w MES BULB	480370840 12v 2.2w MES BULB Part of bulb kit	-	-	Enquire
-	200370703	12v 21/6w BULB	200370703 12v 21/6w BULB Part of bulb kit	-	-	Enquire
-	3781822	MAXI FUSE 40 AMP ATO	3781822 MAXI FUSE 40 AMP ATO Part of bulb kit	-	-	Enquire
-	3781820	BULB CARRIER (FOAM)	3781820 BULB CARRIER (FOAM) Part of bulb kit	-	-	Enquire
-	200370704	BULB 12v 21w ASCC	200370704 BULB 12v 21w ASCC Part of bulb kit	-	-	Enquire
-	3781819	FUSE EXTRACTOR KEY	3781819 FUSE EXTRACTOR KEY Part of bulb kit	-	-	Enquire
-	690500881	BULB 12v 55w H3	690500881 BULB 12v 55w H3 Part of bulb kit	-	-	Enquire
-	3713274	BULB 12v 55w H1	3713274 BULB 12v 55w H1 Part of bulb kit	-	-	Enquire
-	3781821	BULB KIT LID	3781821 BULB KIT LID Part of bulb kit	-	-	Enquire
-	3783099	STRAP	3783099 STRAP Filter retention	-	2	Enquire
-	697398	TIESTRAP-RELEASEABLE 4.6 x 165	697398 TIESTRAP-RELEASEABLE 4.6 x 165 Fog lamp cables	-	2	Enquire
-	3785605	LINK LEAD H/LAMP-LH	3785605 LINK LEAD H/LAMP-LH RHD	-	1	Enquire
-	3785605	LINK LEAD H/LAMP-LH	3785605 LINK LEAD H/LAMP-LH LHD	-	1	Enquire
-	3785604	LINK LEAD H/LAMP-RH	3785604 LINK LEAD H/LAMP-RH LHD	-	1	Enquire
-	3781224	NUMBER PLATE LAMP-LH	3781224 NUMBER PLATE LAMP-LH	-	1	Enquire
-	3781217	REAR LIGHT ASSEMBLY- LH	3781217 REAR LIGHT ASSEMBLY- LH	-	1	Enquire
-	3781808	FRONT FOG LAMP LH MODIFIED	3781808 FRONT FOG LAMP LH MODIFIED	-	1	Enquire
-	3781221	FRONT SIDE AND INDICATOR LAMP-LH	3781221 FRONT SIDE AND INDICATOR LAMP-LH	-	1	Enquire
-	697289	WASHER-QUICK RELEASE FASTENER	697289 WASHER-QUICK RELEASE FASTENER	-	1	Enquire
-	3781803	HARNESS-HEADLAMP LINK	3781803 HARNESS-HEADLAMP LINK	-	1	Enquire
-	3781804	HEADLAMP LOGIC MODULE	3781804 HEADLAMP LOGIC MODULE	-	1	Enquire
-	3781812	BULB KIT	3781812 BULB KIT	-	1	Enquire
-	3783100	SEAL STRIP-SELF ADH 395mm	3783100 SEAL STRIP-SELF ADH 395mm	-	2	Enquire
-	37123984AA	HEADLAMP APERTURE FOAM	37123984AA HEADLAMP APERTURE FOAM	-	2	Enquire
-	9781805	HEADLAMP INITIAL AIM LABEL	9781805 HEADLAMP INITIAL AIM LABEL	-	2	Enquire
-	697610	RIVET POP AL DOMED 4.8 x 4.8	697610 RIVET POP AL DOMED 4.8 x 4.8	-	2	Enquire
-	3783099	STRAP	3783099 STRAP	-	2	Enquire
1	3785604	LINK LEAD H/LAMP-RH	3785604 LINK LEAD H/LAMP-RH RHD	-	1	Enquire
8	3781216	REAR LIGHT ASSEMBLY- RH	3781216 REAR LIGHT ASSEMBLY- RH	-	1	Enquire
10	3781220	FRONT SIDE AND INDICATOR LAMP-RH	3781220 FRONT SIDE AND INDICATOR LAMP-RH	-	1	Enquire
12	3781223	NUMBER PLATE LAMP-RH	3781223 NUMBER PLATE LAMP-RH	-	1	Enquire
14	3781807	FRONT FOG LAMP RH- MODIFIED	3781807 FRONT FOG LAMP RH- MODIFIED	-	1	Enquire
