Front Brake Disc Assembly of Aston Martin Aston Martin Cygnet

View All

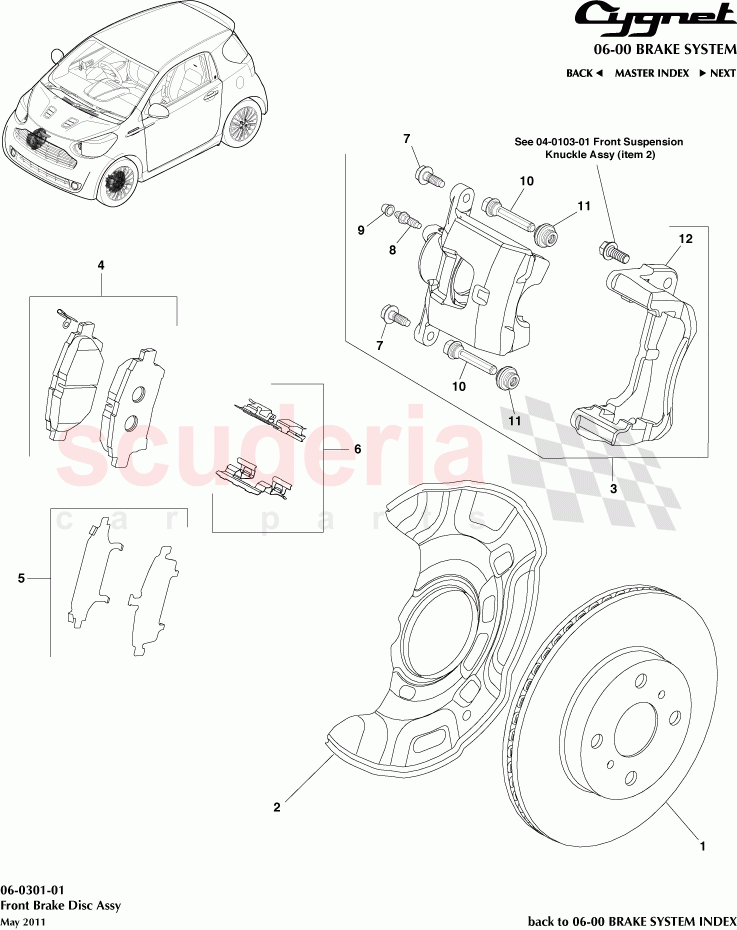

Aston Martin Cygnet - Front Brake Disc Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4351274010	Disc, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4778174020	Cover, Disc Brake Dust, Front RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4773074010	Cylinder Assy, Front Disc Brake, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	446574020	Pad Kit, Disc Brake, Front, Mark Advics PV565H	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	494574010	Shim Kit, Anti Squeal, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	494752010	Fitting Kit, Disc Brake, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010508164	Bolt, Front Brake Cylinder to Mount	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4754720010	Plug, Bleeder, Front Brake Cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3147830010	Cap, Plug, Bleeder, Front Brake Cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4771552010	Pin, Slider, Front Brake Cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4777552010	Boot, Bush Dust Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4772174010	Mount, Front Brake cylinder, RHS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4778274020	Cover, Disc Brake Dust, Front LH	4778274020 Cover, Disc Brake Dust, Front LH	-	1	Enquire
-	4775074010	Cylinder Assy, Front Disc Brake, LH	4775074010 Cylinder Assy, Front Disc Brake, LH	-	1	Enquire
-	4772274010	Mount, Front Brake cylinder, LHS	4772274010 Mount, Front Brake cylinder, LHS	-	1	Enquire
1	4351274010	Disc, Front	4351274010 Disc, Front 1 Per Side	-	2	Enquire
2	4778174020	Cover, Disc Brake Dust, Front RH	4778174020 Cover, Disc Brake Dust, Front RH	-	1	Enquire
3	4773074010	Cylinder Assy, Front Disc Brake, RH	4773074010 Cylinder Assy, Front Disc Brake, RH	-	1	Enquire
4	446574020	Pad Kit, Disc Brake, Front, Mark Advics PV565H	446574020 Pad Kit, Disc Brake, Front, Mark Advics PV565H	-	1	Enquire
5	494574010	Shim Kit, Anti Squeal, Front	494574010 Shim Kit, Anti Squeal, Front	-	1	Enquire
6	494752010	Fitting Kit, Disc Brake, Front	494752010 Fitting Kit, Disc Brake, Front	-	1	Enquire
7	9010508164	Bolt, Front Brake Cylinder to Mount	9010508164 Bolt, Front Brake Cylinder to Mount 2 Per Side	-	4	Enquire
8	4754720010	Plug, Bleeder, Front Brake Cylinder	4754720010 Plug, Bleeder, Front Brake Cylinder 1 Per Side	-	2	Enquire
9	3147830010	Cap, Plug, Bleeder, Front Brake Cylinder	3147830010 Cap, Plug, Bleeder, Front Brake Cylinder 1 Per Side	-	2	Enquire
10	4771552010	Pin, Slider, Front Brake Cylinder	4771552010 Pin, Slider, Front Brake Cylinder 2 Per Side	-	4	Enquire
11	4777552010	Boot, Bush Dust Cover	4777552010 Boot, Bush Dust Cover 2 Per Side	-	4	Enquire
12	4772174010	Mount, Front Brake cylinder, RHS	4772174010 Mount, Front Brake cylinder, RHS	-	1	Enquire
