Aston Martin Cygnet - Pedal Box MANUAL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4711074031 Support Assy, Brake Pedal, MANUAL, RHD Enquire To Order
Photo Part No Description Price (each) Stock
9011908C42 Bolt, W/Washer Enquire To Order
Photo Part No Description Price (each) Stock
9024908256 Pin, W/Hole, Clutch Master Cylinder Push Rod Clevis Enquire To Order
Photo Part No Description Price (each) Stock
9046816089 Clip Enquire To Order
Photo Part No Description Price (each) Stock
8434019025 Switch Assy, Stop Lamp Enquire To Order
Photo Part No Description Price (each) Stock
8434551010 Adjuster, Stop Lamp Switch Mounting Enquire To Order
Photo Part No Description Price (each) Stock
AY2Y2457AB Pad Assy, Brake and Clutch, MANUAL Enquire To Order
View All

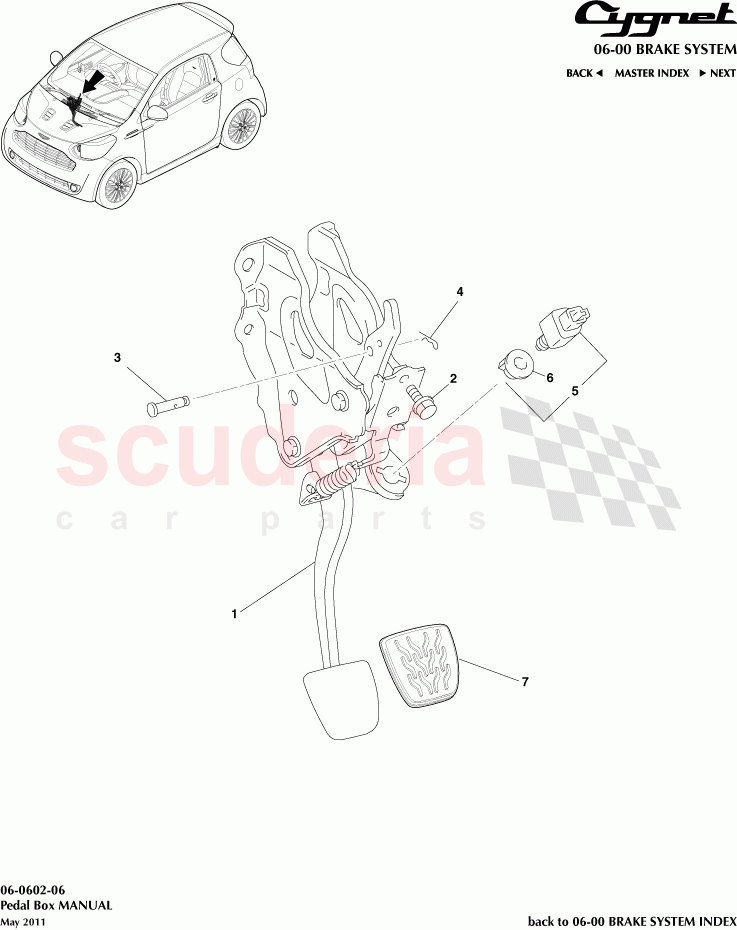

Pedal Box MANUAL of Aston Martin Aston Martin Cygnet Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4711074011
Support Assy, Brake Pedal, MANUAL, LHD 		- 1 Enquire
1 4711074031
Support Assy, Brake Pedal, MANUAL, RHD 		- 1 Enquire
2 9011908C42
Bolt, W/Washer 		- 1 Enquire
3 9024908256
Pin, W/Hole, Clutch Master Cylinder Push Rod Clevis 		- 1 Enquire
4 9046816089
Clip 		- 1 Enquire
5 8434019025
Switch Assy, Stop Lamp 		- 1 Enquire
6 8434551010
Adjuster, Stop Lamp Switch Mounting 		- 1 Enquire
7 AY2Y2457AB
Pad Assy, Brake and Clutch, MANUAL 		- 1 Enquire
