Rear Brake Disc Assembly of Aston Martin Aston Martin Cygnet

View All

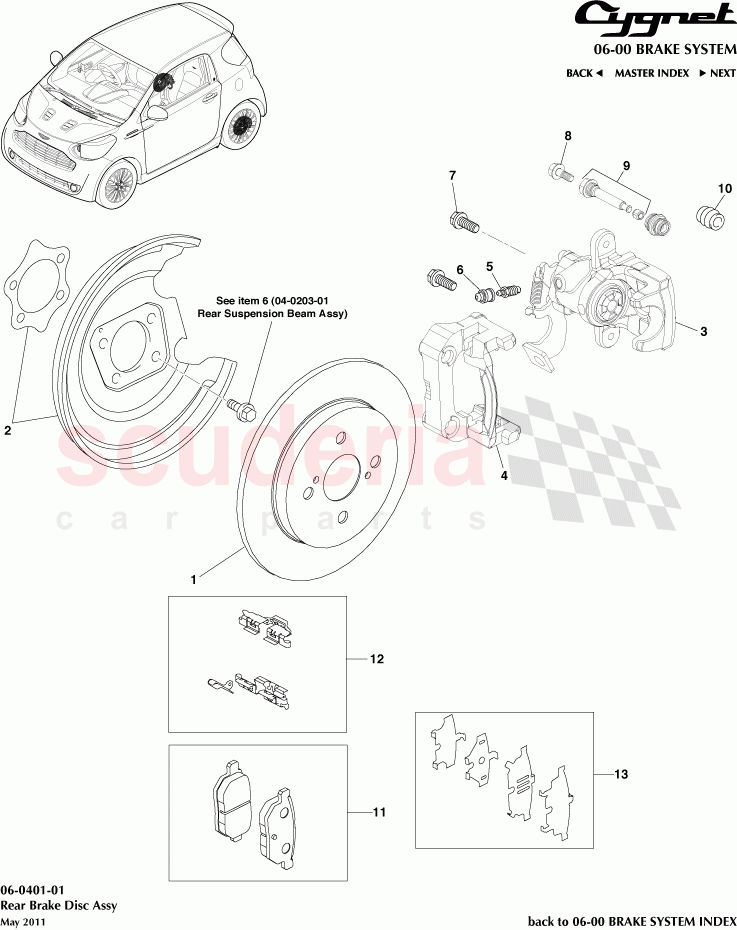

Aston Martin Cygnet - Rear Brake Disc Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4243152080	Disc, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4780474010	Cover Sub Assy, Disc Brake Dust, Rear LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4785052161	Caliper Assy, Disc Brake, Rear LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4782112151	Mount, Caliper Assy, Disc Brake Rear LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4784752050	Plug, Bleeder, Rear Disc Brake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3147852010	Cap, Bleeder Plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010510404	Bolt, Rear Caliper Mount to Beam	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	90015AA102	Bolt, Rear Caliper to Mount	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4783512150	Pin, Rear Disc Brake Pad Guide	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4787512150	Boot, Bush Dust, Rear Disc Brake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	446652140	Kit, Pads, Rear Disc Brake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	494852040	Kit Fitting, Rear Disc Brake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	494652080	Kit, Shim, Anti Squeal	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4780374010	Cover Sub Assy, Disc Brake Dust, Rear RHS	4780374010 Cover Sub Assy, Disc Brake Dust, Rear RHS	-	1	Enquire
-	4783052161	Caliper Assy, Disc Brake, Rear RHS	4783052161 Caliper Assy, Disc Brake, Rear RHS	-	1	Enquire
-	4782112151	Mount, Caliper Assy, Disc Brake Rear LHD	4782112151 Mount, Caliper Assy, Disc Brake Rear LHD	-	1	Enquire
1	4243152080	Disc, Rear	4243152080 Disc, Rear 1 Per Side	-	2	Enquire
2	4780474010	Cover Sub Assy, Disc Brake Dust, Rear LHS	4780474010 Cover Sub Assy, Disc Brake Dust, Rear LHS	-	1	Enquire
3	4785052161	Caliper Assy, Disc Brake, Rear LHS	4785052161 Caliper Assy, Disc Brake, Rear LHS	-	1	Enquire
4	4782112151	Mount, Caliper Assy, Disc Brake Rear LHD	4782112151 Mount, Caliper Assy, Disc Brake Rear LHD	-	1	Enquire
5	4784752050	Plug, Bleeder, Rear Disc Brake	4784752050 Plug, Bleeder, Rear Disc Brake 1 Per Side	-	2	Enquire
6	3147852010	Cap, Bleeder Plug	3147852010 Cap, Bleeder Plug 1 Per Side	-	2	Enquire
7	9010510404	Bolt, Rear Caliper Mount to Beam	9010510404 Bolt, Rear Caliper Mount to Beam 2 Per Side	-	4	Enquire
8	90015AA102	Bolt, Rear Caliper to Mount	90015AA102 Bolt, Rear Caliper to Mount 2 Per Side	-	4	Enquire
9	4783512150	Pin, Rear Disc Brake Pad Guide	4783512150 Pin, Rear Disc Brake Pad Guide 2 Per Side	-	4	Enquire
10	4787512150	Boot, Bush Dust, Rear Disc Brake	4787512150 Boot, Bush Dust, Rear Disc Brake 2 Per Side	-	4	Enquire
11	446652140	Kit, Pads, Rear Disc Brake	446652140 Kit, Pads, Rear Disc Brake	-	1	Enquire
12	494852040	Kit Fitting, Rear Disc Brake	494852040 Kit Fitting, Rear Disc Brake	-	1	Enquire
13	494652080	Kit, Shim, Anti Squeal	494652080 Kit, Shim, Anti Squeal	-	1	Enquire
