Clutch Actuation Assembly of Aston Martin Aston Martin Cygnet

View All

Aston Martin Cygnet - Clutch Actuation Assembly

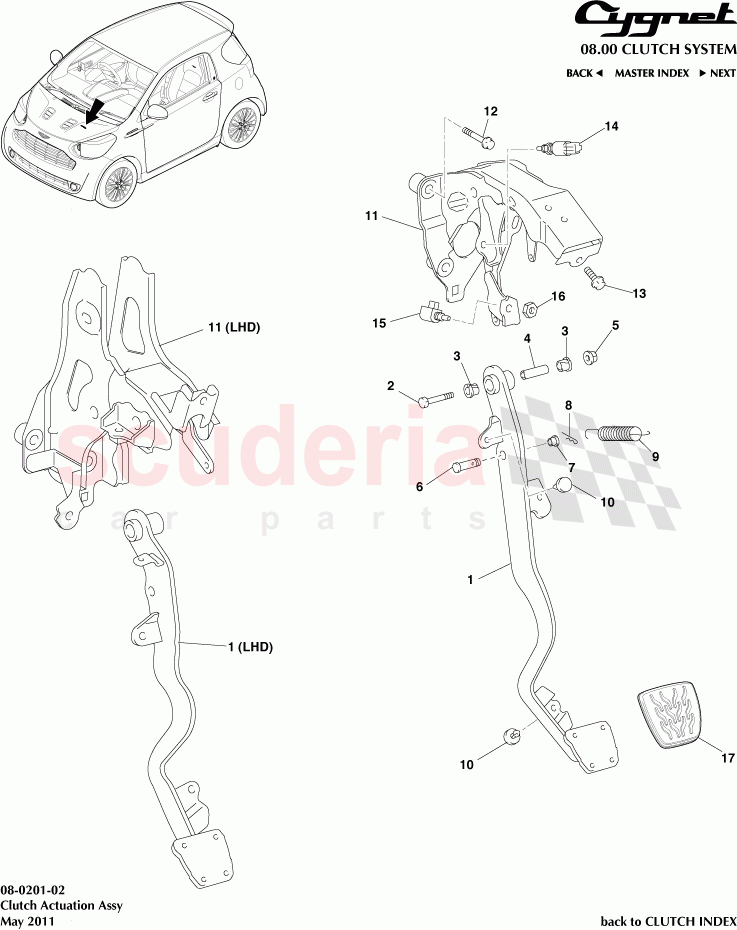

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3130174030	Pedal Sub Assy, Clutch, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010110039	Shaft, Clutch Pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9038613015	Shaft, Clutch Pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9038710003	Collar, Clutch Pedal Shaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9017910088	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9024908256	Pin, W/Hole, Clutch Master Cylinder Push Rod Clevis	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9038608033	Bush, Clutch Master Cylinder Push Rod Clevis	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9046816089	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9050714051	Spring, Clutch Pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9054106036	Cushion, Clutch Pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5510774030	Support Sub Assy, Clutch Pedal, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9155180840	Bolt, Flange, A805	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9011908C42	Bolt, W/Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8828042010	Switch Assy, Clutch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8452042010	Switch Assy, Clutch Start	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9017010017	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y2457AB	Pad Assy, Brake and Clutch, MANUAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	3130174010	Pedal Sub Assy, Clutch, LHD	3130174010 Pedal Sub Assy, Clutch, LHD	-	1	Enquire
-	5510774010	Support Sub Assy, Clutch Pedal, LHD	5510774010 Support Sub Assy, Clutch Pedal, LHD	-	1	Enquire
1	3130174030	Pedal Sub Assy, Clutch, RHD	3130174030 Pedal Sub Assy, Clutch, RHD	-	1	Enquire
2	9010110039	Shaft, Clutch Pedal	9010110039 Shaft, Clutch Pedal	-	1	Enquire
3	9038613015	Shaft, Clutch Pedal	9038613015 Shaft, Clutch Pedal	-	2	Enquire
4	9038710003	Collar, Clutch Pedal Shaft	9038710003 Collar, Clutch Pedal Shaft	-	1	Enquire
5	9017910088	Nut	9017910088 Nut	-	1	Enquire
6	9024908256	Pin, W/Hole, Clutch Master Cylinder Push Rod Clevis	9024908256 Pin, W/Hole, Clutch Master Cylinder Push Rod Clevis	-	1	Enquire
7	9038608033	Bush, Clutch Master Cylinder Push Rod Clevis	9038608033 Bush, Clutch Master Cylinder Push Rod Clevis	-	1	Enquire
8	9046816089	Clip	9046816089 Clip	-	1	Enquire
9	9050714051	Spring, Clutch Pedal	9050714051 Spring, Clutch Pedal	-	1	Enquire
10	9054106036	Cushion, Clutch Pedal	9054106036 Cushion, Clutch Pedal	-	2	Enquire
11	5510774030	Support Sub Assy, Clutch Pedal, RHD	5510774030 Support Sub Assy, Clutch Pedal, RHD	-	1	Enquire
12	9155180840	Bolt, Flange, A805	9155180840 Bolt, Flange, A805	-	4	Enquire
13	9011908C42	Bolt, W/Washer	9011908C42 Bolt, W/Washer	-	1	Enquire
14	8828042010	Switch Assy, Clutch	8828042010 Switch Assy, Clutch	-	1	Enquire
15	8452042010	Switch Assy, Clutch Start	8452042010 Switch Assy, Clutch Start	-	1	Enquire
16	9017010017	Nut	9017010017 Nut	-	1	Enquire
17	AY2Y2457AB	Pad Assy, Brake and Clutch, MANUAL	AY2Y2457AB Pad Assy, Brake and Clutch, MANUAL	-	1	Enquire
