Half Shafts of Aston Martin Aston Martin Cygnet

View All

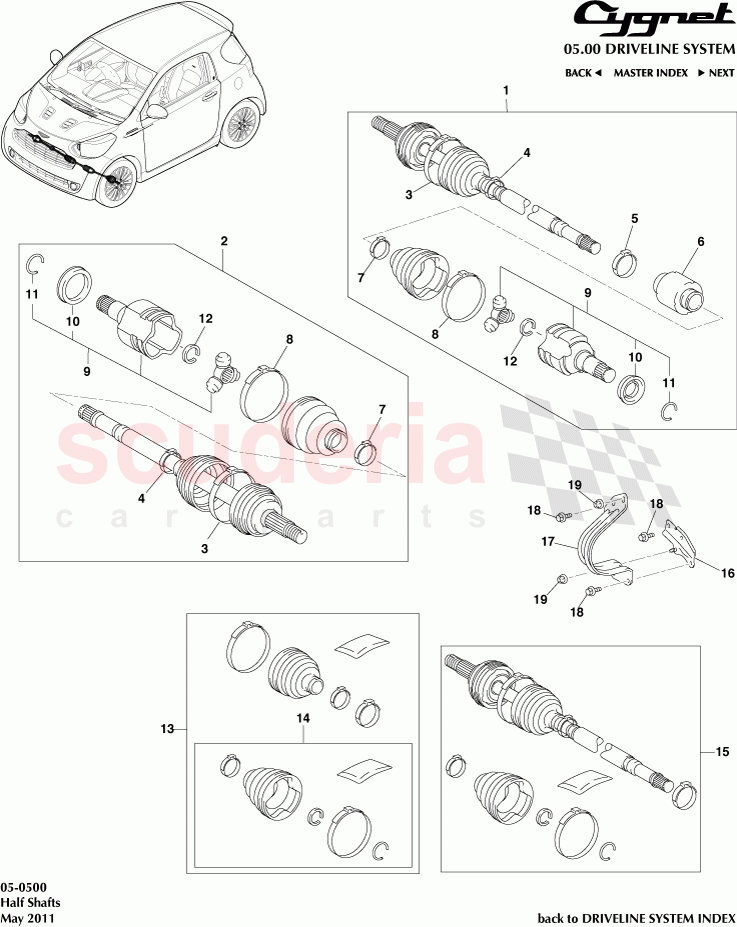

Aston Martin Cygnet - Half Shafts

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4341074060	Shaft Assy, Front Drive, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4342074050	Shaft Assy, Front Drive, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4234574070	Clamp, No 2, Front Axle Outboard Joint Boot	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4234574060	Clamp, Front Axle Outboard Joint Boot	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4234516030	Clamp, Drive Shaft Damper Setting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4347474020	Damper, Front Drive Shaft, (RH Only)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4234574090	Clamp, Front Axle Inboard Joint Boot	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4234574080	Clamp, No 2, Front Axle Inboard Joint Boot	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4304074030	Joint Assy, Front Drive Inboard	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4133612010	Cover, Front Drive Shaft Dust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9052126004	Ring, Hole Snap, Front Drive Shaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4342574020	Ring, Shaft Snap, Front Drive	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	442774040	Boot Kit, Front Drive Shaft, In/Outboard Joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	443774040	Boot Kit, Front Drive Shaft, Inboard Joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4346079035	Shaft Assy, Front Drive Outboard Joint, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4349774010	Insulator, Bearing Bracket Heat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4349874010	Insulator, Drive Shaft Heat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9167180820	Bolt, Transmission Control Cable Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9017908256	Nut	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4347079115	Shaft Assy, Front Drive Outboard Joint, LH	4347079115 Shaft Assy, Front Drive Outboard Joint, LH	-	1	Enquire
1	4341074060	Shaft Assy, Front Drive, RHS	4341074060 Shaft Assy, Front Drive, RHS	-	1	Enquire
2	4342074050	Shaft Assy, Front Drive, LHS	4342074050 Shaft Assy, Front Drive, LHS	-	1	Enquire
3	4234574070	Clamp, No 2, Front Axle Outboard Joint Boot	4234574070 Clamp, No 2, Front Axle Outboard Joint Boot One per side	-	2	Enquire
4	4234574060	Clamp, Front Axle Outboard Joint Boot	4234574060 Clamp, Front Axle Outboard Joint Boot One per side	-	2	Enquire
5	4234516030	Clamp, Drive Shaft Damper Setting	4234516030 Clamp, Drive Shaft Damper Setting	-	1	Enquire
6	4347474020	Damper, Front Drive Shaft, (RH Only)	4347474020 Damper, Front Drive Shaft, (RH Only)	-	1	Enquire
7	4234574090	Clamp, Front Axle Inboard Joint Boot	4234574090 Clamp, Front Axle Inboard Joint Boot One per side	-	2	Enquire
8	4234574080	Clamp, No 2, Front Axle Inboard Joint Boot	4234574080 Clamp, No 2, Front Axle Inboard Joint Boot One per side	-	2	Enquire
9	4304074030	Joint Assy, Front Drive Inboard	4304074030 Joint Assy, Front Drive Inboard One per side	-	2	Enquire
10	4133612010	Cover, Front Drive Shaft Dust	4133612010 Cover, Front Drive Shaft Dust One per side	-	2	Enquire
11	9052126004	Ring, Hole Snap, Front Drive Shaft	9052126004 Ring, Hole Snap, Front Drive Shaft One per side	-	2	Enquire
12	4342574020	Ring, Shaft Snap, Front Drive	4342574020 Ring, Shaft Snap, Front Drive One per side	-	2	Enquire
13	442774040	Boot Kit, Front Drive Shaft, In/Outboard Joint	442774040 Boot Kit, Front Drive Shaft, In/Outboard Joint	-	1	Enquire
14	443774040	Boot Kit, Front Drive Shaft, Inboard Joint	443774040 Boot Kit, Front Drive Shaft, Inboard Joint	-	1	Enquire
15	4346079035	Shaft Assy, Front Drive Outboard Joint, RH	4346079035 Shaft Assy, Front Drive Outboard Joint, RH	-	1	Enquire
16	4349774010	Insulator, Bearing Bracket Heat	4349774010 Insulator, Bearing Bracket Heat	-	1	Enquire
17	4349874010	Insulator, Drive Shaft Heat	4349874010 Insulator, Drive Shaft Heat	-	1	Enquire
18	9167180820	Bolt, Transmission Control Cable Bracket	9167180820 Bolt, Transmission Control Cable Bracket	-	4	Enquire
19	9017908256	Nut	9017908256 Nut	-	2	Enquire
