Rear Suspension Spring and Damper Assembly of Aston Martin Aston Martin Cygnet

View All

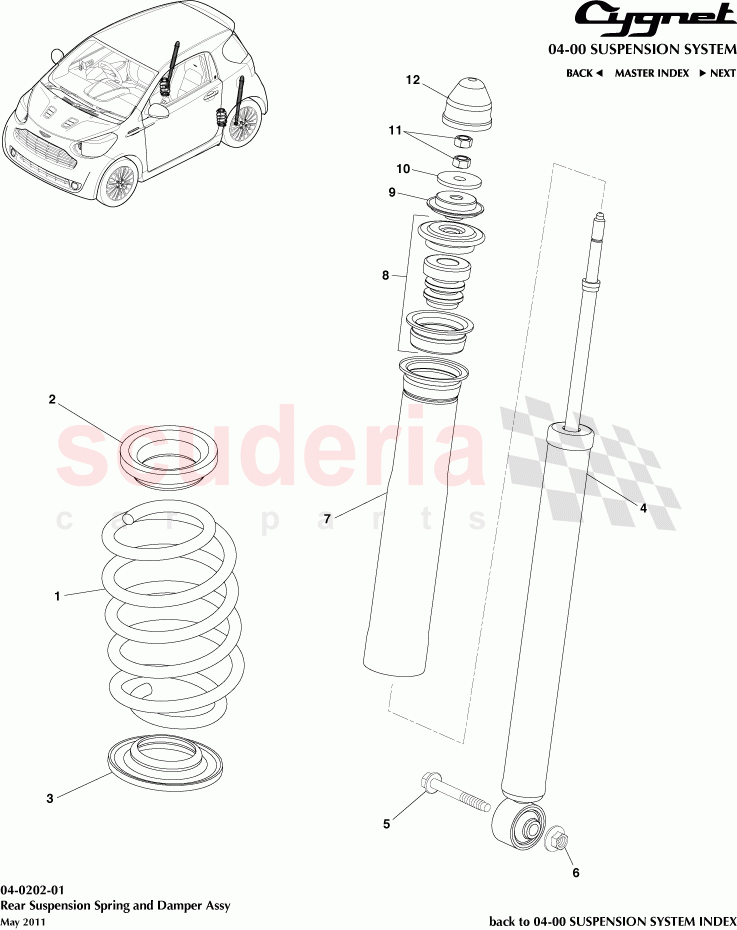

Aston Martin Cygnet - Rear Suspension Spring and Damper Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4823174020	Spring, Coil, Rear LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	482570D010	Insulator, Rear Coil Spring, Upper LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	482580D050	Insulator, Rear Coil Spring, Lower LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4853074040	Absorber Assy, Shock, Rear LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	90119W0124	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9017810022	Nut, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	487500D050	Support Assy, Rear Suspension LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	487520D010	Stopper, Rear Suspension Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	487550D070	Support, Rear Suspension	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9020110320	Washer, Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9413061000	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4855352010	Cap, Rear Shock Absorber LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4823174020	Spring, Coil, Rear LH	4823174020 Spring, Coil, Rear LH	-	1	Enquire
-	482570D010	Insulator, Rear Coil Spring, Upper LH	482570D010 Insulator, Rear Coil Spring, Upper LH	-	1	Enquire
-	482580D050	Insulator, Rear Coil Spring, Lower LH	482580D050 Insulator, Rear Coil Spring, Lower LH	-	1	Enquire
-	4853074040	Absorber Assy, Shock, Rear LH	4853074040 Absorber Assy, Shock, Rear LH	-	1	Enquire
-	487500D050	Support Assy, Rear Suspension LH	487500D050 Support Assy, Rear Suspension LH	-	1	Enquire
-	4855352010	Cap, Rear Shock Absorber LH	4855352010 Cap, Rear Shock Absorber LH	-	1	Enquire
1	4823174020	Spring, Coil, Rear LH	4823174020 Spring, Coil, Rear LH	-	1	Enquire
2	482570D010	Insulator, Rear Coil Spring, Upper LH	482570D010 Insulator, Rear Coil Spring, Upper LH	-	1	Enquire
3	482580D050	Insulator, Rear Coil Spring, Lower LH	482580D050 Insulator, Rear Coil Spring, Lower LH	-	1	Enquire
4	4853074040	Absorber Assy, Shock, Rear LH	4853074040 Absorber Assy, Shock, Rear LH	-	1	Enquire
5	90119W0124	Bolt, Flange	90119W0124 Bolt, Flange One per side	-	2	Enquire
6	9017810022	Nut, Flange	9017810022 Nut, Flange One per side	-	2	Enquire
7	487500D050	Support Assy, Rear Suspension LH	487500D050 Support Assy, Rear Suspension LH	-	1	Enquire
8	487520D010	Stopper, Rear Suspension Support	487520D010 Stopper, Rear Suspension Support One per side	-	2	Enquire
9	487550D070	Support, Rear Suspension	487550D070 Support, Rear Suspension	-	1	Enquire
10	9020110320	Washer, Plate	9020110320 Washer, Plate	-	1	Enquire
11	9413061000	Nut	9413061000 Nut Two per side	-	4	Enquire
12	4855352010	Cap, Rear Shock Absorber LH	4855352010 Cap, Rear Shock Absorber LH	-	1	Enquire
