Rear Suspension Beam Assembly

Aston Martin Cygnet

Find Your Part

Aston Martin Cygnet - Rear Suspension Beam Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4210174020 Beam Assy, Rear Axle Enquire To Order
Photo Part No Description Price (each) Stock
4872574010 Bush, Rear Axle Carrier Enquire To Order
Photo Part No Description Price (each) Stock
9011912385 Bolt W/Washer Enquire To Order
Photo Part No Description Price (each) Stock
4245074010 Hub and Bearing Assy, Rear Axle Enquire To Order
Photo Part No Description Price (each) Stock
9094202049 Bolt, Hub (for Rear Axle) Enquire To Order
Photo Part No Description Price (each) Stock
9010512350 Bolt (for Rear Axle Bearing Case) Enquire To Order
View All

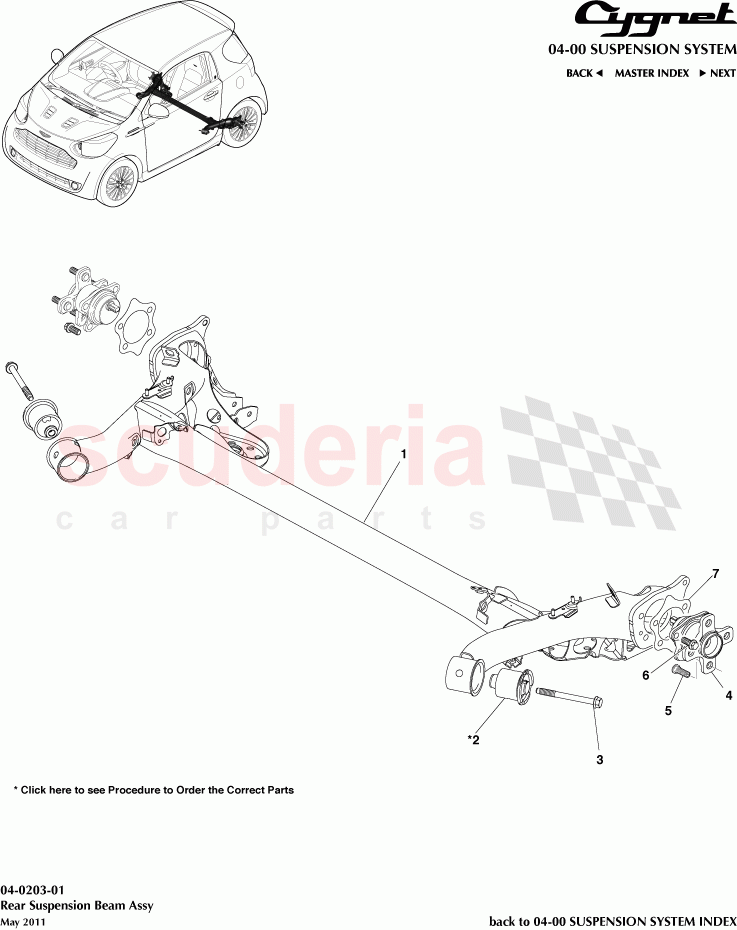

Rear Suspension Beam Assembly of Aston Martin Aston Martin Cygnet Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4872574011
Bush, Rear Axle Carrier
*From 12/2010 		- 1 Enquire
1 4210174020
Beam Assy, Rear Axle 		- 1 Enquire
2 4872574010
Bush, Rear Axle Carrier
*To 11/2010 		- 1 Enquire
3 9011912385
Bolt W/Washer 		- 2 Enquire
4 4245074010
Hub and Bearing Assy, Rear Axle
includes Bolts 		- 1 Enquire
5 9094202049
Bolt, Hub (for Rear Axle) 		- 4 Enquire
6 9010512350
Bolt (for Rear Axle Bearing Case) 		- 4 Enquire
